304 stainless steel motor barrel
Cast aside the cast iron frame of traditional aerator.
Machines can better protect against corrosion in water.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
50 KG
-
Name:
-
Aeration aerator
-
Material:
-
Plastic+SS304+Cast Iron
-
Phase:
-
3 Phase / 1 Phase
-
Motor:
-
AC Electric Motor
-
Frequency:
-
50Hz/60Hz
-
Voltage:
-
220V\380V\400V\415V\440V
-
Function:
-
Increasing Dissolved Oxygen
-
Power:
-
1.5kw /2.2kw
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DUMILE
-
Model Number:
-
YLZ
-
Weight:
-
50 KG
-
Name:
-
Aeration aerator
-
Material:
-
Plastic+SS304+Cast Iron
-
Phase:
-
3 Phase / 1 Phase
-
Motor:
-
AC Electric Motor
-
Frequency:
-
50Hz/60Hz
-
Voltage:
-
220V\380V\400V\415V\440V
-
Function:
-
Increasing Dissolved Oxygen
-
Power:
-
1.5kw /2.2kw
Product Description

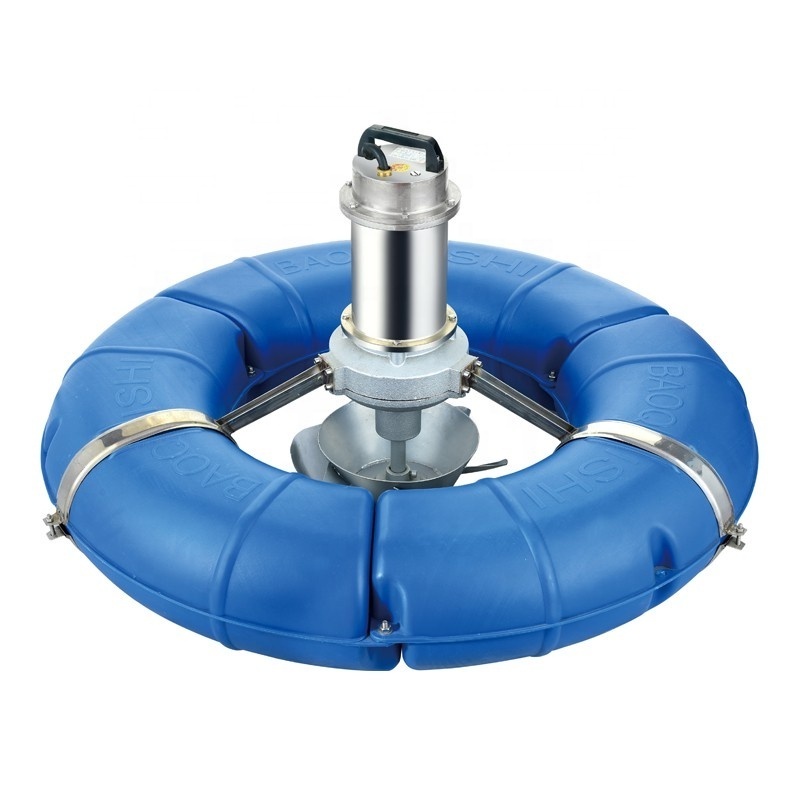

Brief Introduction of Aeration aerator
1.The round design of floating body can
make the output water erupt upward
to show us the boiling water at a certain area,enhance the water's contact with the air .It's eruption form the water surface aeration and the bottom surface dissolved oxygen and increase the water's aeration amount .
2.Secondly , in the process of the water's eruption, it passes the motor to let the motor and the gear box are
kept in the state of water cooling
.Then the motor is not hot after it works long to ensure the motor doesn't burn out with long time working and increase the electric current .
3.Tested by National Center for Quality Supervision of Fishing Machines, it's aeration function is higher than
2.3kg(O2)/KW.H
. It's the fastest one among the products with domestically same power
.
Main Features
1. With
simple design
and convenient installment, it can be completely installed within 3 minutes.
2. It's light and convenient to move and
power-saving.
3.It's unique impeller's cooperative parallelism is very stable.
4.Our material is
stainless steel
and super quality HDPE.
So it can work in the water for long time.There is no need to worry about rusting.
We can
customized DC motor
with solar system .
More informations you can inquiry from our sales team .
More informations you can inquiry from our sales team .
|
Model
|
speed
(r/min)
|
load
(Mu)
|
power
(W)
|
Dynamic efficiency
(kg/kw.h)
|
Aerobic capacity
(kg/h)
|
Voltage
(V)
|
|
1.1kw
Single-phase
|
400
|
2-4
|
1100
|
1.3
|
1.9
|
220
|
|
1.5kw
Single-phase
|
430
|
5-8
|
1500
|
1.5
|
2.3
|
220
|
|
2.2kw
Single-phase
|
510
|
8-12
|
2200
|
1.8
|
2.8
|
220
|
|
1.1kw
Three-phase
|
400
|
2-4
|
1100
|
1.3
|
1.9
|
380
|
|
1.5kw
Three-phase
|
430
|
5-8
|
1500
|
1.5
|
2.3
|
380
|
|
2.2kw
Three-phase
|
510
|
8-12
|
2200
|
1.8
|
2.8
|
380
|
Related Products
Detailed Images
Packing & Delivery
Our Service
Pre-sale:
1.
Can customize
quality level to match customer's target price.
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
5. Warranty: Different warrant y for different quality level.
6. Whole Life free technical guidance, follow up after use situation
2. Can provide samples first, samples are packaged by wooden box.
3. Can provide any accessories parts on aerator for any quantity.
4. Many different models and different quality level for customer to choose.
5. Warranty: Different warrant y for different quality level.
6. Whole Life free technical guidance, follow up after use situation
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading , so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
3. Delivery machine in time, taking photos during loading , so you can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site for installation instruction.
FAQ
Q:Why we choose you?
A:As a factory we could offer you lowest price but superior quality. Well trained and experienced international trade staff could provide you professional service.
Q:What is your loading port?
A:Ningbo.,yiwu/shanghai
Q:How soon will you ship the container/consignmeet upon confirmation of the order?
A:About 1-2 weeks subject to buyer quantity and our production plan.
Q:Do you have inspection procedures for aqua equipments?
A:Absolutely self-inspection before packing .
Q: How do I operate the machine?
A: 1) We offer the best operation manual with the machine.
2) Specific drawings or teaching videos are offered, if necessary
Q: How do I get the machine?
A:1) Contact me for latest prices. We confirm the products details.
2) We send you the PI with our bank info
3) We prepare the products after we get your advanced deposit
4) We send you photos of the machine before and after packing
5) You pay the balance, we delivery the machine
6) We send you the B/L and other papers, keep track till you get the machine
