Quick Details
-
Computerized:
-
Yes
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Arrow star
-
Power:
-
1.0 KW, AC220v/380v 50/60HZ
-
Weight:
-
about 590KG
-
Dimension(L*W*H):
-
2450X750X1750
-
Product Name:
-
80 inch double head sweater and collar knitting machine
-
Machine Type:
-
Fully Jacquard collar Knitting Machine
-
System:
-
Single system with two heads
-
Gauge:
-
12/14/16G
-
Knitting Width:
-
52 inch (36-80 inch all available )
-
Brand:
-
ARROW STAR
-
Model:
-
AS80-(1+1)S
-
Running speed:
-
1.4m/S
-
Motor:
-
Servo Motor
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia, Morocco
-
Knitting Style:
-
Flat
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Quick Details
-
Type:
-
jacquard
-
Production Capacity:
-
500pcs/day
-
Knitting Method:
-
Single
-
Computerized:
-
Yes
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Arrow star
-
Power:
-
1.0 KW, AC220v/380v 50/60HZ
-
Weight:
-
about 590KG
-
Dimension(L*W*H):
-
2450X750X1750
-
Product Name:
-
80 inch double head sweater and collar knitting machine
-
Machine Type:
-
Fully Jacquard collar Knitting Machine
-
System:
-
Single system with two heads
-
Gauge:
-
12/14/16G
-
Knitting Width:
-
52 inch (36-80 inch all available )
-
Brand:
-
ARROW STAR
-
Model:
-
AS80-(1+1)S
-
Running speed:
-
1.4m/S
-
Motor:
-
Servo Motor
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
-
Showroom Location:
-
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan, Malaysia, Australia, Morocco
-
Knitting Style:
-
Flat
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Product Description

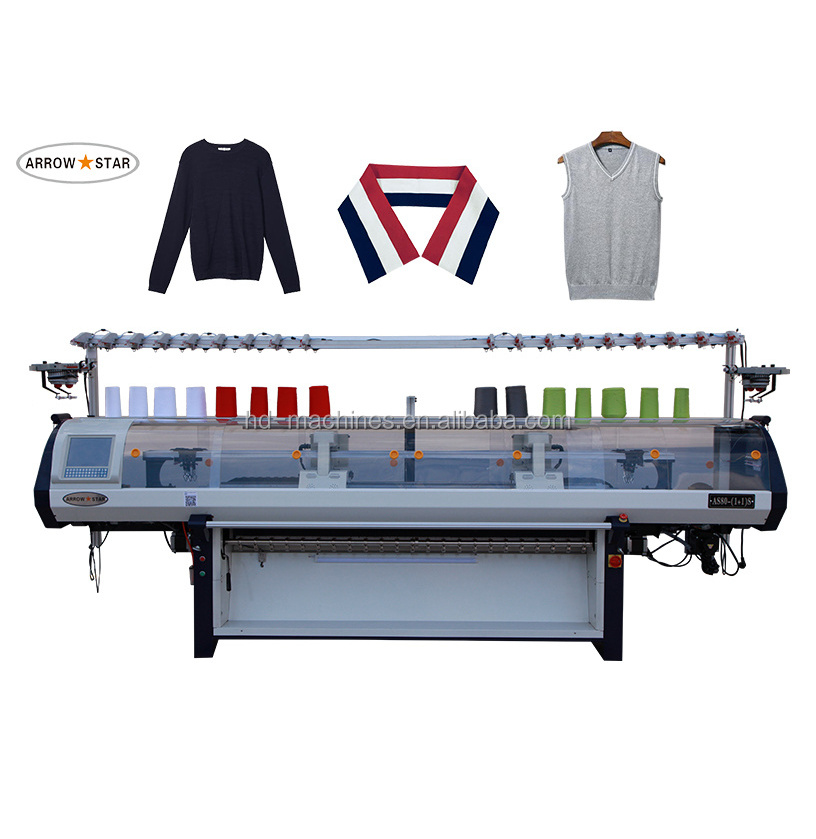

AS80-(1+1)S 80inch knitting width computer controlled T-shirt collar and sweater kniting machine
.AS80(1+1)S is the machine with single system two carriages, with
(1+1) system and 80 inches length .It is simple but has all functions of computer knitting machine .Its advanced need-transfer technology controlled by step motor enables this type to have outstanding performance on needle narrowing ,flowers twisting and holes picking (like lace)
80-inch length and two carriages can improve the knitting efficiency .Two small carriages run independently ,can knit more smooth ,higher quality sweaters than ordinary machine .Cheap and easy to maintain ,it is best choice for users to substitute hand-drive flat knitting machine ,all of these features made this machine can be both sweater knitting machine and collar knitting machine .
Products specification
|
Model code
|
Knitting width
|
Machine Size （CM)
|
|
Weight (KG)
|
|
|
AS80-(1+1)
|
80 inch
|
3765*900*1440MM
|
|
around 1000
|
|
Details Images
Yarn storage
Yarn feeder
Main and sub roller (two rollers)
Product Paramenters
|
SPECIFICATION, GAUGE AND TECHNICAL PARAMETE
R
|
|
|
|
|
||||
|
Gauge
|
12G,14G,16G
|
|
|
|
||||
|
Knitting width
|
80,100,120 inch .
|
|
|
|
||||
|
Knitting system
|
Double carriage single system
|
|
|
|
||||
|
Knitting function
|
Fully jacquard
|
|
|
|
||||
|
Needle bed
|
segment knife needle bed or common needle bed option available when buying, with 8 sets of solenoid needle selection structure
|
|
|
|
||||
|
Racking
|
Controlled by servo motor racking within 2 inches and with fine adjusting function
|
|
|
|
||||
|
Knitting speed
|
Controlled by servo motor, Maximum 1.4M/S
|
|
|
|
||||
|
Encoder
|
Advanced encoder adopted
|
|
|
|
||||
|
Stitch density
|
Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology:
|
|
|
|
||||
|
|
0-650, the stitch of the knitwear can be accurately controlled.
|
|
|
|
||||
|
Take down roller
|
Programmed instruction controlled by stepping motor, 32levels selection adjustable range:0-100 .
|
|
|
|
||||
|
|
With main and sub roller , two roller system
|
|
|
|
||||
|
Yarn carrier
|
2 sets of 6 feeders on both side of the 3 feeders rail
|
|
|
|
||||
|
Protection
|
automatically alarm when yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur also set up the safety auto-lock protect device
|
|
|
|
||||
|
Operation Display
|
LCD industrial display, Can display various parameters,usb memery, time countting, visual interface control, maintenance history,easily system update, Express in Chinese or English, etc.
|
|
|
|
||||
|
Power
|
Single-phase 220V,adopt advanced CMOS technology, having memorizing function at power shock stop
|
|
|
|
||||
Knitting Samples
Our samples room
