Quick Details
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
UNP-FPS01-300L
-
Product name:
-

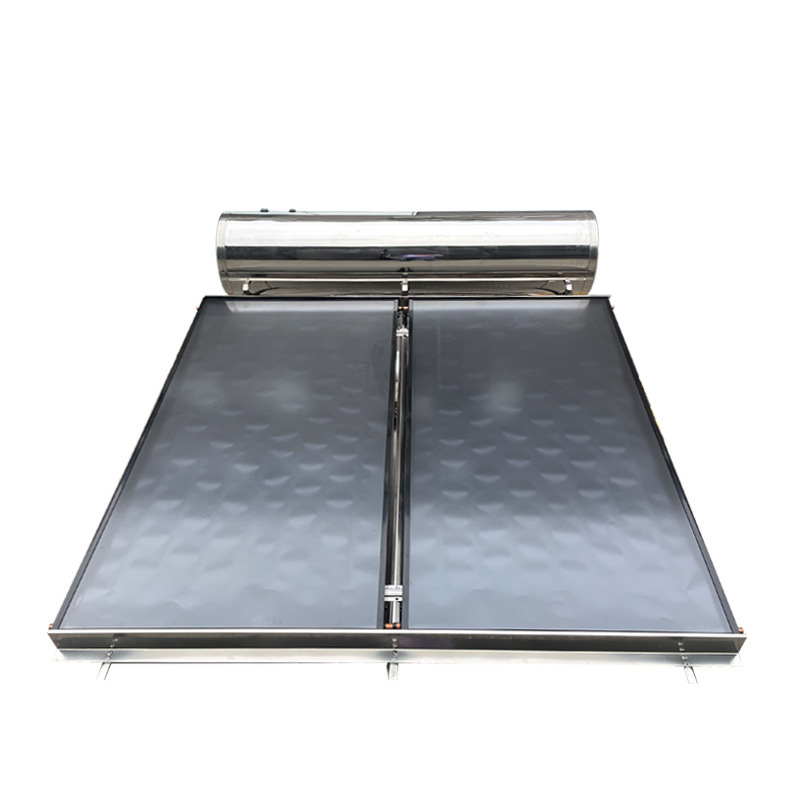

Flat Plat Pressurized Solar Water Heater
-
Solar collector:
-
Flat Planel
-
Inner tank:
-
SUS304-2B Stainless Steel
-
Outer tank:
-
Stainless Steel
-
Frame:
-
Stainless Steel 1.5mm
-
Working pressure:
-
0.5KG/M2 ,testing pressure 1.0 Mpa.
-
Working Temp.:
-
95 Celsius degree
-
Collector Glass:
-
Tempered Glass 3.2mm thickness
-
Heat preservation:
-
66-72hours
Quick Details
-
Warranty:
-
5 years
-
Application:
-
Outdoor, Hotel, Commercial, Household
-
Type:
-
Flat-Plate
-
Circulation Type:
-
Indirect / Closed Loop (Active)
-
Capacity:
-
300
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
UNP-FPS01-300L
-
Product name:
-
Flat Plat Pressurized Solar Water Heater
-
Solar collector:
-
Flat Planel
-
Inner tank:
-
SUS304-2B Stainless Steel
-
Outer tank:
-
Stainless Steel
-
Frame:
-
Stainless Steel 1.5mm
-
Working pressure:
-
0.5KG/M2 ,testing pressure 1.0 Mpa.
-
Working Temp.:
-
95 Celsius degree
-
Collector Glass:
-
Tempered Glass 3.2mm thickness
-
Heat preservation:
-
66-72hours
Detail Date
A flat plate solar water heater is a common type of solar water heater used in homes. This water heater is designed to provide quality hot water using solar energy. It has a new flat plate design that is energy-efficient and includes a selective coating that maximizes solar heat absorption.
Additionally, it has weather-resistant aluminum framing and interior fiberglass insulation that increases its efficiency. This particular type of solar water heater is very popular in China and foreign markets due to its ease of delivery and installation, as well as its long working life (≥15 years).
The main components of this water heater are the water tank, flat plate solar collector, and frame. Other spare parts include the controller, electrical heating, connection pipes, screws, and more.
We have 15+ years of experience manufacturing complete solar water heaters. We welcome your inquiries and appreciate every time we communicate with you.
We will do our best to answer every question and provide the best price and service. Thank you for choosing UNIEPU!
|
Flat plate solar water heater
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Water Tank
|
Material of Inner Tank
|
|
|
1.2mm thickness SUS304-2B food grade
|
|
|
|
|
|
|||||||||
|
|
Material of outer Tank
|
|
|
0.4mm thickness Stainless Steel 201
|
|
|
|
|
|
|||||||||
|
|
Thick insulation
|
|
|
Polyurethane foam(Bayer,Germany), 50mm thickness, density: 32kg/m3
|
|
|
|
|
|
|||||||||
|
|
Heat Preservation Period
|
|
|
72 Hours
|
|
|
|
|
|
|||||||||
|
|
Welding Method
|
|
|
Argon Arc Welding
|
|
|
|
|
|
|||||||||
|
Flat Plate |
Model NO.
|
|
|
UNP-FPS01
|
|
|
|
|
|
|||||||||
|
|
Dimension L*W*T (mm)
|
|
|
2000*1000*80
|
|
|
|
|
|
|||||||||
|
|
Cross Area (M2)
|
|
|
2
|
|
|
|
|
|
|||||||||
|
|
Efficiency Area (M2)
|
|
|
1.98
|
|
|
|
|
|
|||||||||
|
|
Gross Weight of Collector(KG)
|
|
|
55±3
|
|
|
|
|
|
|||||||||
|
|
Transparent Cover
|
|
|
|
|
|
|
|
|
|||||||||
|
|
Number of Cover (pc)
|
|
|
1
|
|
|
|
|
|
|||||||||
|
|
Cover Material
|
|
|
Float Glass/Low-iron Glass
|
|
|
|
|
|
|||||||||
|
|
Cover Thickness (mm)
|
|
|
4
|
|
|
|
|
|
|||||||||
|
|
Cover Transmission
|
|
|
89%-91.4%
|
|
|
|
|
|
|||||||||
|
|
Material
|
|
|
Red copper
|
|
|
|
|
|
|||||||||
|
|
Surface Treatment
|
|
|
Blue Titanium
|
|
|
|
|
|
|||||||||
|
|
Construction Type
|
|
|
Fin and Tube (Ultrasonic Welding)
|
|
|
|
|
|
|||||||||
|
|
Header Material
|
|
|
Copper TP2
|
|
|
|
|
|
|||||||||
|
|
Header Tube Size (mm)
|
|
|
Φ22*0.6 2 pcs
|
|
|
|
|
|
|||||||||
|
|
Riser Tube Material
|
|
|
Copper TP2
|
|
|
|
|
|
|||||||||
|
|
Riser Tube Size
|
|
|
Φ8(10/12)*0.5 7 pcs
|
|
|
|
|
|
|||||||||
|
|
Fill Capacity
|
|
|
1.8L Including Header Pipe
|
|
|
|
|
|
|||||||||
|
|
Thermal Insulation
|
|
|
|
|
|
|
|
|
|||||||||
|
|
Insulation Thickness
|
|
|
Polyurethane (side)
|
|
|
|
|
|
|||||||||
|
|
Casing
|
|
|
|
|
|
|
|
|
|||||||||
|
|
Frame Material
|
|
|
Stainless Steel
|
|
|
|
|
|
|||||||||
|
|
Max Operation Temperature
|
|
|
200℃
|
|
|
|
|
|
|||||||||
|
|
Maximum Pressure (Mpa)
|
|
|
1.4
|
|
|
|
|
|
|||||||||
|
|
Sealing Material
|
|
|
EPDM
|
|
|
|
|
|
|||||||||
|
|
Limitation of Operation
|
|
|
|
|
|
|
|
|
|||||||||
|
|
Max. Working Temperature
|
|
|
120℃
|
|
|
|
|
|
|||||||||
|
|
Max. Working Pressure
|
|
|
1.2 Mpa
|
|
|
|
|
|
|||||||||
|
|
Recommended Circulation Flow
|
|
|
Propylene Glycol&water mixture
|
|
|
|
|
|
|||||||||
|
|
Resistance to freezing
|
|
|
≧ -40℃
|
|
|
|
|
|
|||||||||
|
Frame |
Material
|
|
|
Stainless steel SUS201 Thickness: 1.2mm
|
|
|
|
|
|
|||||||||
|
|
Angle
|
|
|
30°
|
|
|
|
|
|
|||||||||
|
|
Bolts & Nuts
|
|
|
Stainless steel SUS201
|
|
|
|
|
|
|||||||||
|
Others |
Optional Parts
|
|
|
MG Rod (include), T/P Valve (include), Vacuum Vaclve
|
|
|
|
|
|
|||||||||
|
|
Hot water outlet:
|
|
|
3/4" external thread down position, material with SS304
|
|
|
|
|
|
|||||||||
|
|
Cold water inlet:
|
|
|
3/4" upper side position, material with SS304
|
|
|
|
|
|
|||||||||
Tempered low-iron glass
We solemnly promise
All inner water tank
we produce are made of SUS304 material
and 100% tank leakage testing Argon arc welding technology
Customizable angle
Anti-corrosive and Anti-ultraviolet
Life time 10 years
Workshop
Accessories
20-stage shower head filter, which provides clean soft water for your body. Say goodbye to dry, itchy skin, dandruff, and eczema, and hello to improved skin, hair, and nail condition!
Product packaging
Water tank
Frame
Flat plate solar collector
