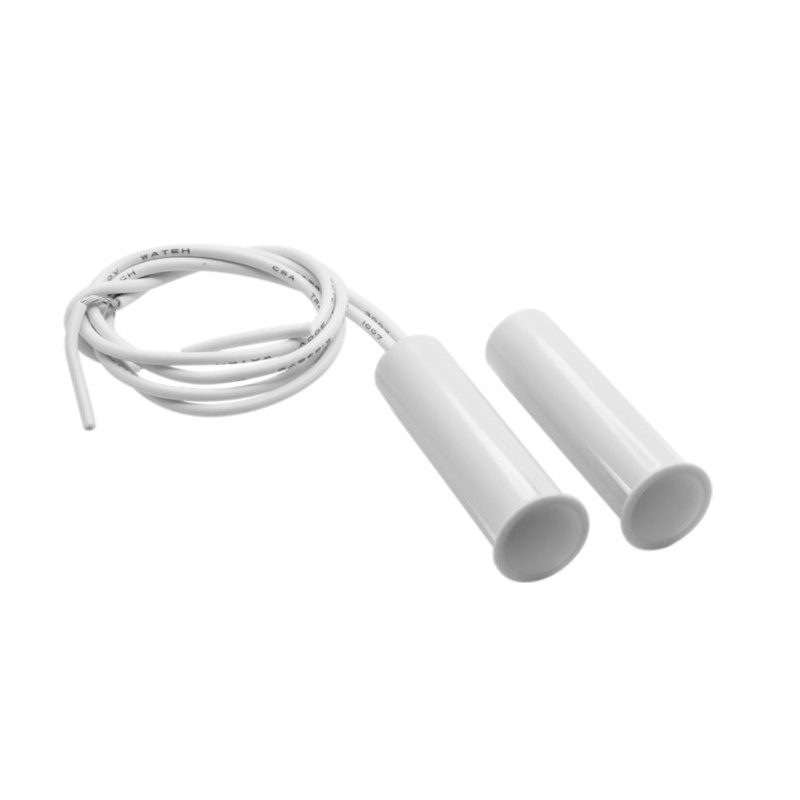

FOCUSENS Cylindrical Recessed Contact Home Security NO NC Gate Door Sensors Magnetic Safety Reed Switch

FOCUSENS Cylindrical Recessed Contact Home Security NO NC Gate Door Sensors Magnetic Safety Reed Switch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $2

≥200 Pieces

US $1.6

≥1000 Pieces

US $1.4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Housing:: ABS enclosure

Switch element:: ORD624

Type:: NO / NC

Insulation Resistance:: 10^10 Ω

Max carry current:: 1 A

Breakdown Voltage:: 250 VDC min

Size:: Customized

Installation:: Recessed

Application:: Door, window, alarm system

Connector:: Optional

Quick Details

Place of Origin:: Anhui, China

Brand Name:: Focusens

Model Number:: ORD624 AT1013

Housing:: ABS enclosure

Switch element:: ORD624

Type:: NO / NC

Insulation Resistance:: 10^10 Ω

Max carry current:: 1 A

Breakdown Voltage:: 250 VDC min

Size:: Customized

Installation:: Recessed

Application:: Door, window, alarm system

Connector:: Optional

This sensor is essentially a reed switch, encased in an ABS plastic shell.

They're often used to detect when a door or drawer is open, which is why they have mounting tabs and screws.

There are Normally Open (NO) and Normally Closed (NC) types.

A normally open (NO) switch has contacts that are open or disconnected in their unactuated (normal) position. A normally closed (NC) switch has contacts that are closed or connected in their unactuated (normal) position.

Features
1	Normally open & normally closed reed switches.
2	Magnetically-operated proximity sensor.
3	Operates through non-ferrous materials such as wood, plastic or aluminum.
4	Rated for high-temperature applications up to 125°C.
5	Cross-slotted mounting holes for optimum adjustability.
6	Customer-defined sensitivity.
7	Choice of cable length and connector.

Application

* Position and limit switching
* Security
* Linear actuators

* Door switch

Flexible customize the product specifications and shape to match your applications.

ABOUT US

Focus Sensing and Control Technology

Co.,LTD is a Sensor expert works professionally in Temperature, Humidity, Level sensing Fields. We are ISO certified and patented factory located in National Grade High Tech Industry Zone of Hefei city, middle East China close to Shanghai. Basically we works for 5 main industry lines , household electricity, Automobile, Medical, IoT and Industry. Under our brand name Focusens , we develop and produce thermistors and esistance Temperature Sensors NTC ,PTC

RTD, we also R&D and manufacture varisous digital temperature sensors, Temp humidity transmitters, door switch sensors as well as float level sensors.All our products are RoHS and Reach compliance, reliability meeting relevant IEC standard or industry standard like AECQ.

Focusens have a project and sales engineer team that have almost 20 years sensor field experience, which enable us flexible and reliable product development and professional customer project support. We annually

develop 50+ new sensor solutions for different applications ,and we’ve exported to over 60 countries ,especially Westen European , South European , North America and South East Asia.

Focusens equipped with advanced processing assembling and testing machines like Auto Chip Selection Machine, Multi-Functional Computer Wire Cutting Machine, Precision Spot Welding Machine, 0.01’ Degree C super high precision thermal bath Machine, Precision constant humidity chamber etc. Directly buy , distribution, agent or OEM, we welcome various models of cooperation. Drop us contact or visit , start your pleasant experience of cooperation with Focusens.

What is typical phase for set up a sensor project with Focusens ? Specification Confirmation – Price Confirmation –Sample Evaluation --- Trial Order—Routine Order--- Partnership Cooperation How to match right sensor and get quotation sooner？ 1. Drawing of the sensor part you are in need. (Most convenient and prefered if you have it) 2. A sensor probe generally consist of 4 below basic parts, it will works if you can describe us your specific requirements on below : - Your requirement on parameter or electrical value of sensing element - Material and size of probe/ sensor house - Gauge and size of extension cable - Requirements on other accessories like connector, cable gland, label, etc 3. A sample of existing sensor that you want to order same. ( we measure sample and send counterpart ) 4. In case you are not able to specify above and your project is open for sensor selection, we can make recommend base on your exact field application requirement.
