Quick Details
-
Brand Name:
-
Customazation
-
Model Number:
-
769
-
Item::
-
769 3D soft close hinge hinge
-
Material:
-
Steel with nickel plated
-
Characteristic:
-
soft close one way hinge
-
Base::
-
clip on hinge
-
Hydraulic:
-
pressure cushion
-
Cup diameter:
-
35mm
-
Depth:
-
11.5mm
-
Angle of opening::
-
98 degree
-
Hole pitch:
-
48mm
-
Weight:
-
93g
Quick Details
-
Application:
-
Kitchen, Bathroom, Home Office, Living Room, Bedroom, Hotel, Office Building, Hospital, School
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Customazation
-
Model Number:
-
769
-
Item::
-
769 3D soft close hinge hinge
-
Material:
-
Steel with nickel plated
-
Characteristic:
-
soft close one way hinge
-
Base::
-
clip on hinge
-
Hydraulic:
-
pressure cushion
-
Cup diameter:
-
35mm
-
Depth:
-
11.5mm
-
Angle of opening::
-
98 degree
-
Hole pitch:
-
48mm
-
Weight:
-
93g
More details is comming soon

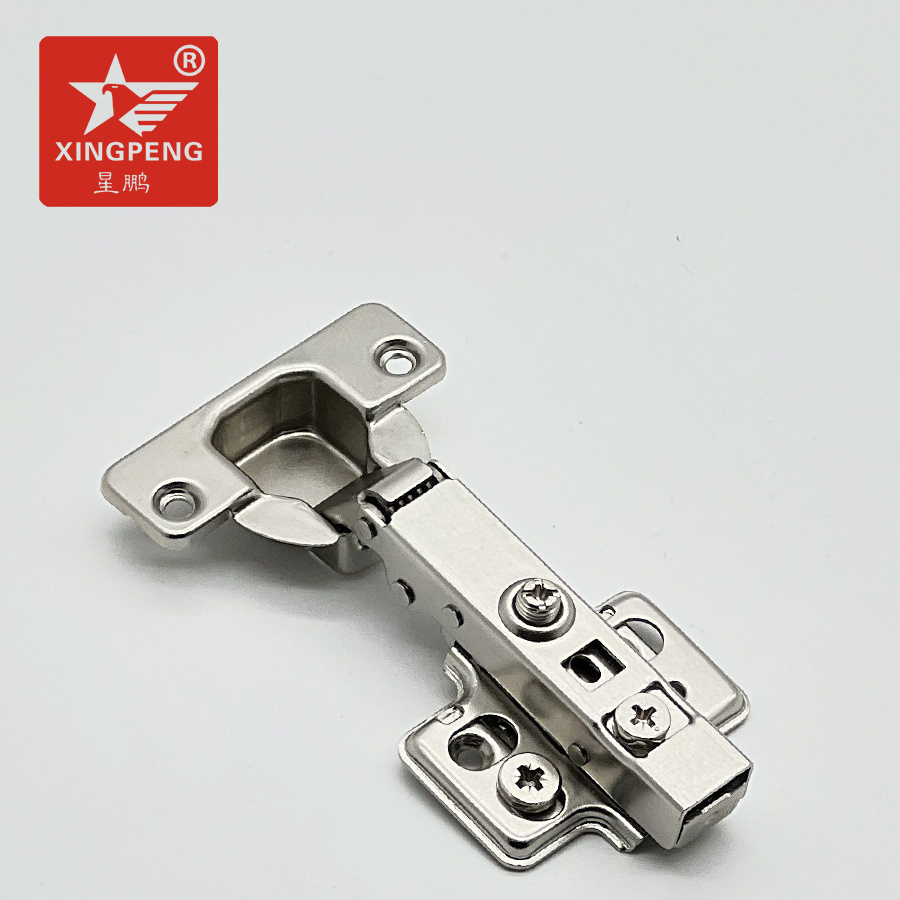

Kitchen hardware component hydraulic damper hinge 768
| Product name | 3D Clip On Soft Close Kitchen Cabinet Hinge Door Hinges |
| Model number | 769 |
| Specification | Full overlay, half overlay, insert |
| Function | soft close hinge |
| Material | Iron with nickel plating |
| Color | Nickel |
| Type | hydraulic hinge |
| Angel of opening | 98 degree |
| Depth of hinge cup | 11.5mm |
| Range of door thinckness | 14-18mm |
| Cup Diameter | 35mm |
| Optional Cup hole patten | 45mm/48mm/52mm |
| Optional plate | 2 hole plate(normal) & 4 hole plate(normal) & 3D plate |
| plate height | H=0 / H=2 (2 hole) // 4 hole plate H=0 // 3D plate H=0 |
| Installation | Clip on |
| Weight | 104±1g |
| Cycle test | 50000 cycle |
| Salt spray test | 48 hours |
| MOQ | 20000 PCS |
| Package | bulk packing: 200 Pcs/Ctn |
| Supply Ability | 500000 Pc/Pcs per Month |
- Bulk Package
- small bag package
- small box package
- Blister package-For Super Market
- Brown/ White color export carton & Color box & Color Carton all available
- Pallets packing also available no matter for hinge and slide
We have sophisticated production equipment and the sophisticated production technologiesm, the product with SGS, ISO,UL approval .
1
Own Import &Export License
2 High efficient Punching machines & Rolling Machines together with automatic assembling and packing machines.
3 Strict quality control process and enough testing machines: cycle test; salt spray test
4 Well train and experienced QA/QC inspection works and daily record &report to GM directly and daily.
5 Experienced and well trained workers. With clear and written instruction to ensurance stable quality products.
6 Clean and Tidy production line
Guangdong Xingpeng Industrial Co., Ltd. is located in Jieyang City, Guangdong Province .Xingpeng was founded in 2000.Our company is professional in manufacturing concealed hinges and ball bearing slides. Now have more than 50 types of concealed hinges and more than 10 types of ball bearing slides.We have 22 years of export & production experience and have own imp-export license. We have enough capacity to make the delivery and the quality as what you are looking for. Price will benefit each other.
