Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hengxin
-
Dimensions(L*W*H):
-
1150x1000x1700mm
-
Weight:
-
320 KG
-
Certification:
-
CCC
-
Product name:
-
Leather Silk Screen Printing Machine
-
Voltage / Herbs:
-
110V/60Hz; 220V/50Hz
-
Worktable:
-
with Vacuum function
-
Stroke:
-
rail track
-
Air cylinders:
-
FESTO, Germany
-
Control system:
-
TOUCH SCREEN + PLC
-
Max printing size:
-
400x600mm
-
Printing color:
-
Single One Time
-
Application area:
-
Card
Quick Details
-
Condition:
-
New
-
Color & Page:
-
single color
-
Voltage:
-
110V / 220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hengxin
-
Dimensions(L*W*H):
-
1150x1000x1700mm
-
Weight:
-
320 KG
-
Certification:
-
CCC
-
Product name:
-
Leather Silk Screen Printing Machine
-
Voltage / Herbs:
-
110V/60Hz; 220V/50Hz
-
Worktable:
-
with Vacuum function
-
Stroke:
-
rail track
-
Air cylinders:
-
FESTO, Germany
-
Control system:
-
TOUCH SCREEN + PLC
-
Max printing size:
-
400x600mm
-
Printing color:
-
Single One Time
-
Application area:
-
Card

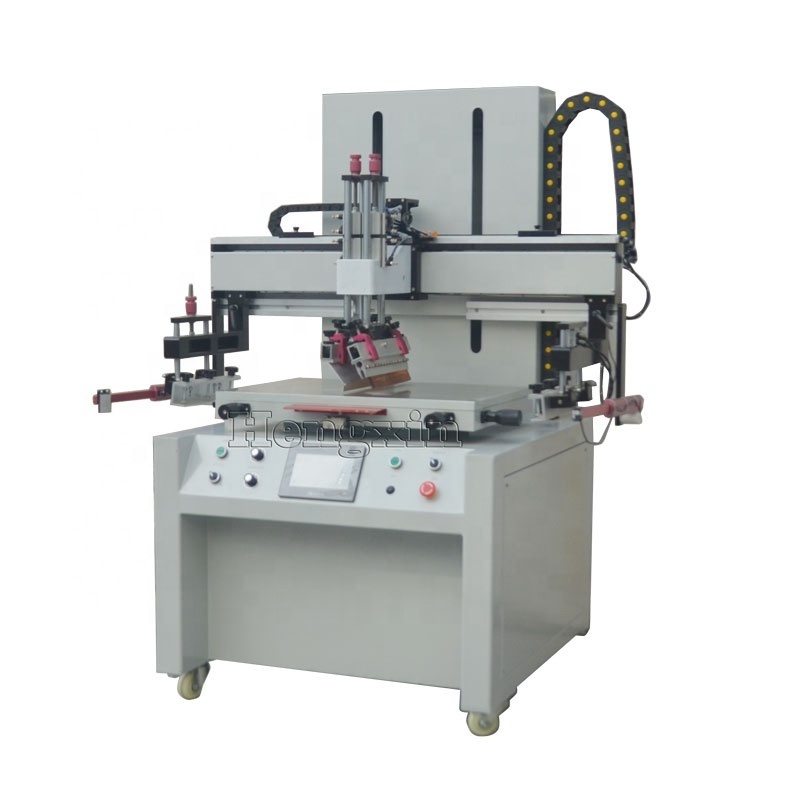

Leather Silk Screen Printing Machine
Products Description
Possessed of competitive pricing and suitable for various type industrial product printing, it is the most satisfied within industry as first choice
Constantly explore medium size screen printer on market, it is acknowledged, application scope of medium size screen printer can be adapted by various industries, and enhance to spread out the market, such as Self-adhesive Sticker, Credit Card (VIP member card), Nameplate, UV varnish, leather, etc Printing precision is not critically as same as photoelectronic industry, but various type of products printing Quick change screen and facilitate screen cleaning and precise registration are valued
Constantly explore medium size screen printer on market, it is acknowledged, application scope of medium size screen printer can be adapted by various industries, and enhance to spread out the market, such as Self-adhesive Sticker, Credit Card (VIP member card), Nameplate, UV varnish, leather, etc Printing precision is not critically as same as photoelectronic industry, but various type of products printing Quick change screen and facilitate screen cleaning and precise registration are valued
|
Model
|
S-4060V screen printer
|
|
Substrate Thickness
|
0.1〜30mm
|
|
Max Productivity
|
700 P/H
|
|
Max Printing Area
|
400x600mm
|
|
Max Frame O/D Size
|
700x950mm
|
|
Table Size
|
500x700mm
|
|
Vacuum Hole Diameter
|
ψ1.5mm
|
|
Peel-off Height
|
20mm
|
|
Table Micro-adjustment
|
±10mm，±10mm
|
|
Machine Weight
|
325kg
|
|
Machine Dimension
|
1130x900x1700mm
|
Features:
Screen up down adopts double guide rails structure to operate rapid stable motion.
Three point screen micro adjustment, table can be adjusted front / back / right / leftward direction to facilitates registration for multi-layer printing.
Pneumatic print head carriage up down control, facilitates to exchange squeegee / flood coater / screen and ink cleaning.
Equipped with peel-off function to avoid sticky mesh after printing.
Incorporated multi-adjustment structure for squeegee / flood coater to adjust angle / depth / pressing pressure.
Digitalized control touch-screen panel possesses versatile function and easy operation.
Error message is displayed on touch-screen panel to guide quick trouble shooting.
E-stop pressing plate and E-stop switch for safety protection
Three point screen micro adjustment, table can be adjusted front / back / right / leftward direction to facilitates registration for multi-layer printing.
Pneumatic print head carriage up down control, facilitates to exchange squeegee / flood coater / screen and ink cleaning.
Equipped with peel-off function to avoid sticky mesh after printing.
Incorporated multi-adjustment structure for squeegee / flood coater to adjust angle / depth / pressing pressure.
Digitalized control touch-screen panel possesses versatile function and easy operation.
Error message is displayed on touch-screen panel to guide quick trouble shooting.
E-stop pressing plate and E-stop switch for safety protection
