Quick Details
-
Max. Loading Capacity:
-
50
-
Weight (KG):
-
120 KG
-
Place of Origin:
-
Foshan
-
Brand Name:
-
Nanyang
-
Voltage:
-
3 phases , customized voltage
-
Dimension(L*W*H):
-
680*6000*1000mm
-
Power (kW):
-
1.2 kW
-
Marketing Type:
-
good price in 2024
-
Product name:
-
3D powder rotary mixing machine
-
Keyword:
-
powder mixing, detergent mixing, W model mixer
-
Machine Type:
-
three dimension
-
Usage:
-
mixing and blending powder material
-
Application scope:
-
chemical lab powder
-
Mixing type:
-
3D rotary
-
After-sales Service Provided:
-
Online Support Video Technical Support
-
Advantage:
-
effective and labor saving
-
package:
-
one set packed in wooden box
-
Control:
-
by electric control box
Quick Details
-
Barrel Volume (L):
-
100
-
Max. Loading Volume (L):
-
100 L
-
Range of Spindle Speed(r.p.m):
-
1 - 12 r.p.m
-
Max. Loading Capacity:
-
50
-
Weight (KG):
-
120 KG
-
Place of Origin:
-
Foshan
-
Brand Name:
-
Nanyang
-
Voltage:
-
3 phases , customized voltage
-
Dimension(L*W*H):
-
680*6000*1000mm
-
Power (kW):
-
1.2 kW
-
Marketing Type:
-
good price in 2024
-
Product name:
-
3D powder rotary mixing machine
-
Keyword:
-
powder mixing, detergent mixing, W model mixer
-
Machine Type:
-
three dimension
-
Usage:
-
mixing and blending powder material
-
Application scope:
-
chemical lab powder
-
Mixing type:
-
3D rotary
-
After-sales Service Provided:
-
Online Support Video Technical Support
-
Advantage:
-
effective and labor saving
-
package:
-
one set packed in wooden box
-
Control:
-
by electric control box
Details Description

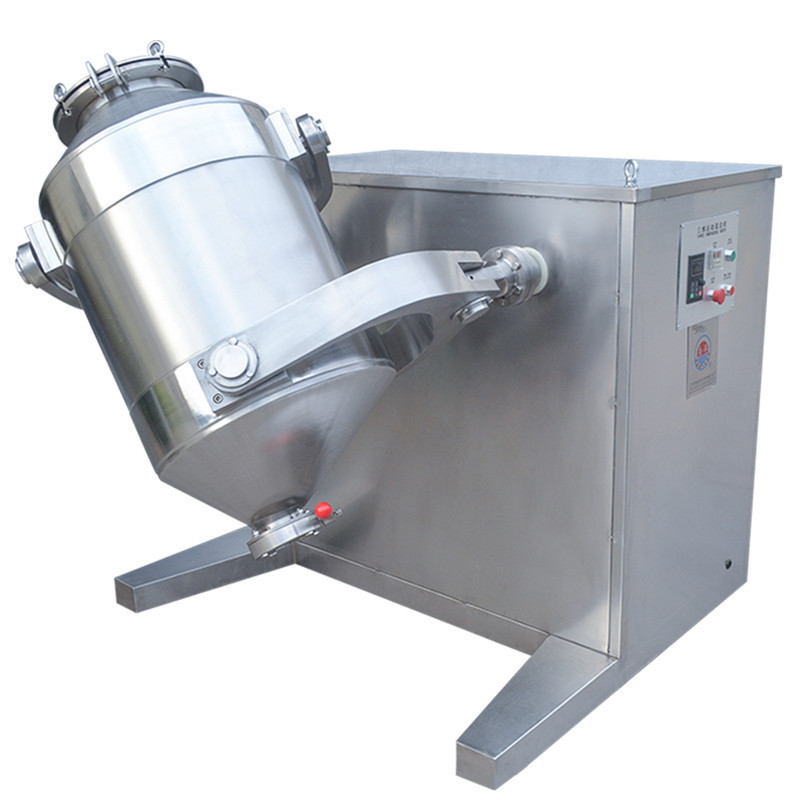

Good price 3D mixer powder machine chemical powder lab bin mixer three dimension laboratory powder mixer machine
Capability & Characteristic
The tank type mixer produced by our factor is provided with delicate construction and pleasant appearance, it is suitable for mixing and homogenizing powder or particle supplies in such industries including pharmaceutical, daily chemical, food, chemical industry, dye and pigment, pesticide, ceramics etc. The product leaves no dissolution, volatilization or degeneration of supplies during mixing process.
The tank type mixer produced by our factor is provided with delicate construction and pleasant appearance, it is suitable for mixing and homogenizing powder or particle supplies in such industries including pharmaceutical, daily chemical, food, chemical industry, dye and pigment, pesticide, ceramics etc. The product leaves no dissolution, volatilization or degeneration of supplies during mixing process.
Made of stainless steel tank body this is polished internally and externally, easy for cleaning, the blenders rotate to bring supply from two directions to the center, the exterior layer propellers push the supply to both sides and the two-way rotary blenders and the propellers are in combined use for continuous circulation of supplies in the tank body, leaving no leak to the entirely sealed body during mixing process.
Specification of the construction
1. Mixer speed reducer: the reducer is a key driving mechanism for the mixer, which is mounted on the right side of the machine, when in operation, reducer drives mixer shaft under a speed ratio of 1:51 because the motor inside the frame drives worm and worm wheel by chain, the mixer shaft end is equipped with sealing device, which could be cleaned by dismounting back cover if necessary.
1. Mixer speed reducer: the reducer is a key driving mechanism for the mixer, which is mounted on the right side of the machine, when in operation, reducer drives mixer shaft under a speed ratio of 1:51 because the motor inside the frame drives worm and worm wheel by chain, the mixer shaft end is equipped with sealing device, which could be cleaned by dismounting back cover if necessary.
2. Mixing tank: the tank is made of stainless steel and has built-in blenders which are mounted horizontally on mixer speed reducer and lay off speed reducer.
3. Dismounting of blender: when dismounting and disassembling the mixer, remove the two ends first and loosen the screw caps. then draw the blenders smoothly and evenly. Pay attention to smooth operation when dismounting and disassembling blenders. indiscriminate knocking and prying may result in bending and deforming.
Electric specification
The machine uses 380V AC power supply. The mixing duration could be manually and electrically controlled. When manual control is used, user should set the knob to manual position and set the desired mixing time, this is to say, to use manual control, user should set the knob to manual position only. Check any damaged driving members regularly for the purpose of reliability.
The mixing tank made food grade sus304 and polished in out side
The support screw is firm made of stainless steel, endure good use
The tank inside mirror polished meet food processing craft
The material outlet with butterfly valve in the bottom easy discharge
The mixing paddle made of food grade, makes mixing evenly easily
The over 34 years factory give the better quality and service for buyer
|
Volume
|
100
|
200
|
300
|
500
|
1000
|
2000
|
|||||
|
Capacity
|
50kg
|
100kg
|
150kg
|
250kg
|
500kg
|
1000kg
|
|||||
|
Material
|
SS304/SS316
|
SS304/SS316
|
SS304/SS316
|
SS304/SS316
|
SS304/SS316
|
SS304/SS316
|
|||||
|
Speed
|
12r/min
|
1.5KW
|
2.2KW
|
3.0KW
|
4.0KW
|
7.5KW
|
|||||
|
Power
|
0.75KW
|
1.2KW
|
1.5KW
|
2.2KW
|
4.0KW
|
5.5KW
|
|||||
|
Mixing time
|
3-10 mins
|
5-12 mins
|
6-15 mins
|
10-20 mins
|
15-30 mins
|
15-30 mins
|
|||||
Suitable Material
