CISO VSP Grease distributor grease lubrication distribution block progressive divider valve manifolds block

CISO VSP Grease distributor grease lubrication distribution block progressive divider valve manifolds block

FOB Reference Price: Get Latest Price

≥4 Sets

US $140

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: CISO

Operating pressure:: 25Mpa

Operating temperature:: - 30℃ ~ +150℃

Maximum cycle speed with cycle indicator:: 60cyc/min

Lubricants:: Oil 32 CST ~ NLGI 2

Inlet port:: G 1/4 or npt 1/4

Outlet port:: G 1/8 or npt 1/8

Outlets:: 3-22

Material:: Stainless steel

Quick Details

Warranty:: 1year

Place of Origin:: Shandong, China

Model Number:: VSP

Brand Name:: CISO

Operating pressure:: 25Mpa

Operating temperature:: - 30℃ ~ +150℃

Maximum cycle speed with cycle indicator:: 60cyc/min

Lubricants:: Oil 32 CST ~ NLGI 2

Inlet port:: G 1/4 or npt 1/4

Outlet port:: G 1/8 or npt 1/8

Outlets:: 3-22

Material:: Stainless steel

Products Description

Haracteristics

● Three kinds of thread are available：
R, NPT, BSPP

● Nickel-plated steel

● Oil-NLGI 2

● CE certification

● Maximum operating pressure 25mpa

● VSP modular distributor valve can ensure accurate lubrication

● Replacement of the metering element without dismantling the pipe, thus ensuring low maintenance costs

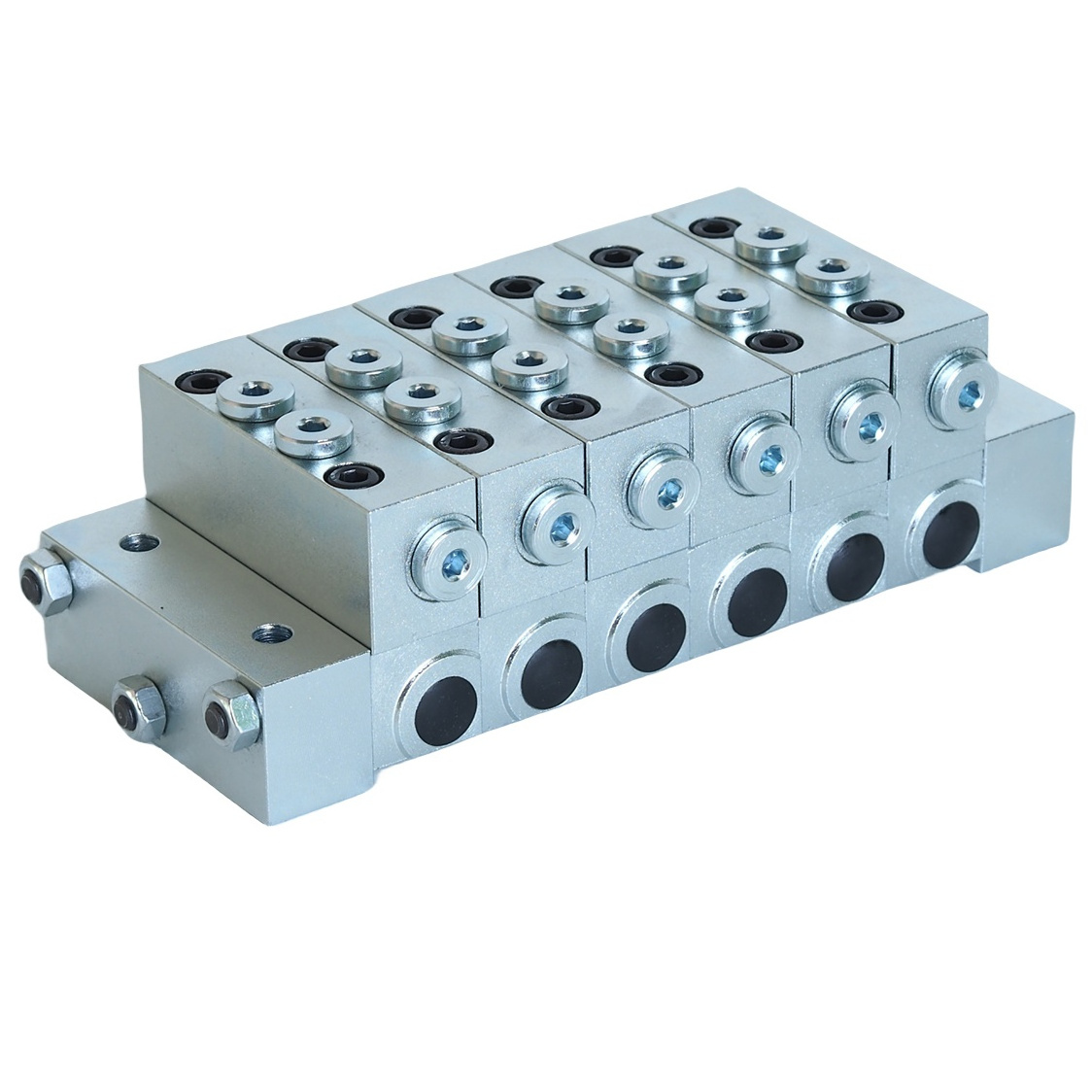

VSP modular distribution valve

The VSP modular distributor valve can ensure accurate lubrication, and is suitable for all kinds of harsh conditions, is a perfect lubricant distributor solution.

The VSP modular distributor valve consists of two main parts: THE BASE (consisting of a minimum of three elements). THE METERING VALVES (available with both a single outlet as well as a double one).To maximize the performance of the plant, it is crucial to use electrical monitoring elements that detect malfunctioning or system blockage.

Thanks to The VSP modular distributor valve modularity, the system can be easily expanded and replacement of metering elements can occur without removing the pipework, thereby guaranteeing low maintenance costs.The modularity of the VSP modular distributor valve furthermore allows you to bundle lubrication points according to system requirements. Modular overall supply, save assembly time for customers.

Technical data
Operating pressure	25Mpa
Lubricants	Oil 32 CST ~ NLGI 2
Discharge (for outlet)	- 30℃ ~ +150℃
Maximum cycle speed with cycle indicator	60cyc/min
Inlet port	G 1/4 or npt 1/4
Outlet port	G 1/8 or npt 1/8
Outlets	3-22
Material	Stainless steel

Dimensions(mm)：

Lubrication system customization

Single Line Lubrication System

A single-line lubrication system is a type of lubrication system in machinery and equipment that is used to provide a continuous supply of lubricant to various components.
A metering valve is mounted on the main line connected to the pump. The metering valve has a certain resistance to pressure shocks, after which the pressure is built up and the pressure delivers the established lubricant to the lubrication point. When the system is depressurised, a certain dose of lubricant is replenished in the metering valve for the next lubrication.

The Advantages : ● Connecting numerous lubrication points ● Smallest dosing quantities ● Compact construction
● For oil or grease ● Cost-effective ● Easy assembly

Progressive Lubrication System

The progressive lubrication system comprises a feed pump and progressive distributors.The lubricant is pumped through the main lines to the progressive distributor with the pump. The lubricant is delivered “progressively” to the friction point.The circulation of a progressive distributor is monitored optically or lectrically.

The Advantages :
● Compact lexible kit
● Monitored function
● Channels flow through completely
● Wide range of use
● Integrated return valve inside

Dual Line Lubrication System

Dual line lubrication systems can be used for large systems with dispersed lubrication points that require different amounts of lubrication. Using two main lines Alternating branch lines along the main line are connected to a two-line metering unit to supply large quantities of lubricant to the lubrication points.

In large two-line systems, pressure switches at the end of the line are used to control and In large two-line systems, end-of-line pressure switches are used to control and monitor the system. These flexible systems are simple in design and can be controlled.Dual line metering units can be combined with downstream progressive metering units to increase the total number of lubrication points receiving small quantities of lubricant. Two-line systems that can dispense accurate lubricant over distances of up to 100 metres or more, up to 2,000 lubrication points.

The Advantages :
●Reliability, up to 2,000 lubrication points can be supplied with precisely measured lubricant over a length of up to 100 m.

●Simple and flexible, easy to expand or reduce

●Multiple applications

●Ultrasonic high and low level control

●Built-in lubricant filter

●Maintains high efficiency in harsh environmental conditions.
