Quick Details
-
Description:
-

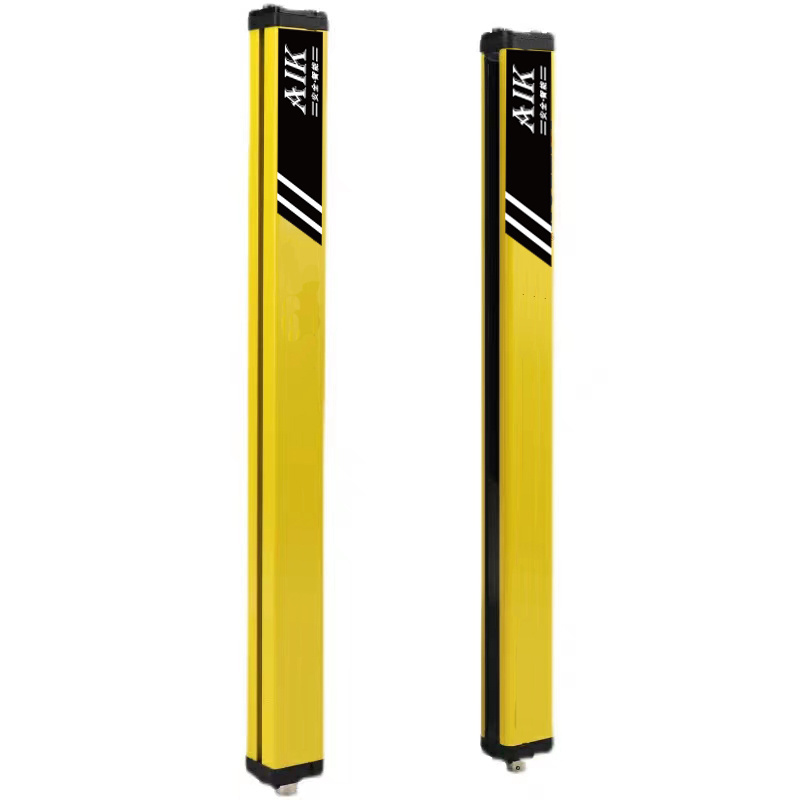

Safety Light Curtains, Safety Light Curtains
-
Model Number:
-
EC1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AIK
-
Theory:
-
safety sensor
-
Output:
-
NPN/PNP/Relay
-
Product name:
-
Performance Optical Sensor Safety Light Curtain barrier Light Sensor
-
model number:
-
EC series
-
output:
-
NPN/PNP/Relay
-
usage:
-
Photoelectric Sensor
-
Operating Voltage:
-
10-30VDC
-
Working temperature:
-
-10℃~+55℃
-
Material:
-
Aluminum alloy
-
service:
-
online support
-
Appliaction:
-
Punching Machine
-
Certificate:
-
CE FCC RoHS
Quick Details
-
Use:
-
SAFETY PROTECTOR
-
Series:
-
EC
-
Mounting Type:
-
Photoelectric protection device
-
Description:
-
Safety Light Curtains, Safety Light Curtains
-
Model Number:
-
EC1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AIK
-
Theory:
-
safety sensor
-
Output:
-
NPN/PNP/Relay
-
Product name:
-
Performance Optical Sensor Safety Light Curtain barrier Light Sensor
-
model number:
-
EC series
-
output:
-
NPN/PNP/Relay
-
usage:
-
Photoelectric Sensor
-
Operating Voltage:
-
10-30VDC
-
Working temperature:
-
-10℃~+55℃
-
Material:
-
Aluminum alloy
-
service:
-
online support
-
Appliaction:
-
Punching Machine
-
Certificate:
-
CE FCC RoHS
Products Description
safety light curtain is photoelectric safety protection device (also known as safety protector, punch protector, infrared safety protection device, etc.). In modern factories, people and machines work together, in some potentially dangerous mechanical equipment, such as stamping machinery, shearing equipment, metal cutting equipment, automatic assembly line, automatic welding line, mechanical transmission and handling equipment, dangerous areas (toxic, high pressure, high temperature, etc.), easy to cause personal injury to operators.
This safety light curtains carry dual-circuit external control system, with reference to European standard design, main element was imported from abroad and its safety performance has reached the international European four-level standard. Complete inspection, easy to use, strong shock resistance, various installation methods can be applied to a variety of high-risk equipment, and can be protect operator safety and equipment in harsh environments.
Product Features:
1. Easy installation , easy to use accessories.
It's connected by an aviation plug for quick and accurate loading and unloading.
2. Perfect self-checking function, adopting the latest safety technology design, and strictly design according to European standards.
3 high resolution, protect your fingers, palms, and human body.
4. Short response time and high reliability.
5.Integrated design, no controller required, easy to use.
Control principle :
The light emitted by the illuminator is directly received by the light receiver to form a protective light curtain, and the light receiver monitors the on/off state of the light curtain, and performs the on/off state signal of the light curtain.Output low level (or high level) through the NPN (or PNP) transistor, and send it to the machine PLC or alarm circuit through the transmission data line to realize the machine tool downtime or alarm.
1. Easy installation , easy to use accessories.
It's connected by an aviation plug for quick and accurate loading and unloading.
2. Perfect self-checking function, adopting the latest safety technology design, and strictly design according to European standards.
3 high resolution, protect your fingers, palms, and human body.
4. Short response time and high reliability.
5.Integrated design, no controller required, easy to use.
Control principle :
The light emitted by the illuminator is directly received by the light receiver to form a protective light curtain, and the light receiver monitors the on/off state of the light curtain, and performs the on/off state signal of the light curtain.Output low level (or high level) through the NPN (or PNP) transistor, and send it to the machine PLC or alarm circuit through the transmission data line to realize the machine tool downtime or alarm.
PRODUCT SPECIFICATIONS
|
Voltage
|
DC24V±20%
|
Output current
|
<200mA
|
|
rated power
|
<5W
|
response time
|
<10ms
|
|
insulate resistance
|
>100MΩ
|
size
|
35*53mm
|
|
working temperature
|
-10℃-55℃
|
Output
|
NPN & PNP
|
|
light-interference
|
10000Lux.
|
Materials
|
aluminum alloy
|
Operation method:
* Check whether the safety light curtain is firmly fixed on the equipment to be equipped, whether the transmitter and receiver of the light curtain sensor are in a plane, and the protection area bounded by the transmitter and receiver should be a rectangle in the plane .
* Check whether the transmitter and receiver of the safety light curtain are properly assembled with their respective cables, and whether the terminal of the cable is accurately and firmly connected with the power supply and control unit.
* Power on the safety light curtain sensor, and the time curtain sensor starts to self-check, synchronize and self-calibrate.
About 1 second later, the yellow indicator light of the transmitter is stable, and the indicator light of the receiver is all off, indicating that the light curtain sensor is in normal working state.
* Check whether the safety light curtain is firmly fixed on the equipment to be equipped, whether the transmitter and receiver of the light curtain sensor are in a plane, and the protection area bounded by the transmitter and receiver should be a rectangle in the plane .
* Check whether the transmitter and receiver of the safety light curtain are properly assembled with their respective cables, and whether the terminal of the cable is accurately and firmly connected with the power supply and control unit.
* Power on the safety light curtain sensor, and the time curtain sensor starts to self-check, synchronize and self-calibrate.
About 1 second later, the yellow indicator light of the transmitter is stable, and the indicator light of the receiver is all off, indicating that the light curtain sensor is in normal working state.
Main application:
Forging machine tools, automobile manufacturing, metal stamping, laser cutting machine, bending machine, computer parts, electronics factory, plastic machinery, paper cutting machine, automation equipment, forging machine tools, hydraulic machinery, robots, industrial manipulator, packaging equipment, production lines, three-dimensional garage and other automation equipment, it can also be used for multifaceted area protection or anti-theft.
Company Introduction
Packing&Shipping
FAQ
Q1.How to place order?Talk to service staff, confirm machine details, and then place order by Alibaba.
Q2.How to Pay?
we accept T/T, Alibaba trade ensurance order.
Q3.How about your delivery time?
The specific delivery time depends on the items and the quantity of your order, better to confirm it with the seller.
Q4.Do you test all your goods before delivery?
Yes, we have 10% test before delivery.
Q5: Can I get a sample to check the quality?
Yes, you can make a trial order for 1 set to check the quality.
Q2.How to Pay?
we accept T/T, Alibaba trade ensurance order.
Q3.How about your delivery time?
The specific delivery time depends on the items and the quantity of your order, better to confirm it with the seller.
Q4.Do you test all your goods before delivery?
Yes, we have 10% test before delivery.
Q5: Can I get a sample to check the quality?
Yes, you can make a trial order for 1 set to check the quality.
