Quick Details
-
Application:
-
Mortar putty coating, etc.
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AWY
-
Dimension(L*W*H):
-
1300*450*750 (mm)
-
Weight:
-
180 kg
-
Power:
-
4KW
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mortar Spraying Machine
-
Sand-to-cement ratio:
-
1:3
-
Mortar conveying capacity:
-
1.5m³/h
-
Inner diameter of material tube:
-
32mm
-
Maximum passing particles:
-
5mm
-
Work efficiency:
-
100²/h
-
Work pressure:
-
3-6Mpa
-
Voltage:
-
380V/220V
-
Packing weight:
-
200kg
-
Factory standard equipment:
-
10m material pipe, 10m air pipe, 1 gun with 5 nozzles
Quick Details
-
Max. vertical conveying distance:
-
10M
-
Max. horizontal conveying distance:
-
20M
-
Hopper Capacity:
-
60L
-
Application:
-
Mortar putty coating, etc.
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AWY
-
Dimension(L*W*H):
-
1300*450*750 (mm)
-
Weight:
-
180 kg
-
Power:
-
4KW
-
Marketing Type:
-
New Product 2023
-
Product name:
-
Mortar Spraying Machine
-
Sand-to-cement ratio:
-
1:3
-
Mortar conveying capacity:
-
1.5m³/h
-
Inner diameter of material tube:
-
32mm
-
Maximum passing particles:
-
5mm
-
Work efficiency:
-
100²/h
-
Work pressure:
-
3-6Mpa
-
Voltage:
-
380V/220V
-
Packing weight:
-
200kg
-
Factory standard equipment:
-
10m material pipe, 10m air pipe, 1 gun with 5 nozzles
Product Description
Advantages of AWY-311/AWY-511 machine:
The density of the mortar exceeds the prescribed standard, avoiding troubles and losses caused by quality, construction period, labor cost, etc.
Simple operation, energy saving and eco-friendly, multiple purposes, can spray mortar, fireproof materials, refractory materials, and can also convey mortar. It is not restricted by regional and environmental conditions and the shape of the sprayed surface. It is suitable for house protection, painting and priming. Can be used for indoor and outdoor wall spraying. Cement mortar grouting, bridge grouting and waterproof surface spraying, fireproof spraying, thermal insulation material spraying, ceiling spraying, wall spraying, paint spraying, garden spraying, relief effect paint.
Spraying machine can easily spray an area of 150m²/h.
The density of the mortar exceeds the prescribed standard, avoiding troubles and losses caused by quality, construction period, labor cost, etc.
Simple operation, energy saving and eco-friendly, multiple purposes, can spray mortar, fireproof materials, refractory materials, and can also convey mortar. It is not restricted by regional and environmental conditions and the shape of the sprayed surface. It is suitable for house protection, painting and priming. Can be used for indoor and outdoor wall spraying. Cement mortar grouting, bridge grouting and waterproof surface spraying, fireproof spraying, thermal insulation material spraying, ceiling spraying, wall spraying, paint spraying, garden spraying, relief effect paint.
Spraying machine can easily spray an area of 150m²/h.
|

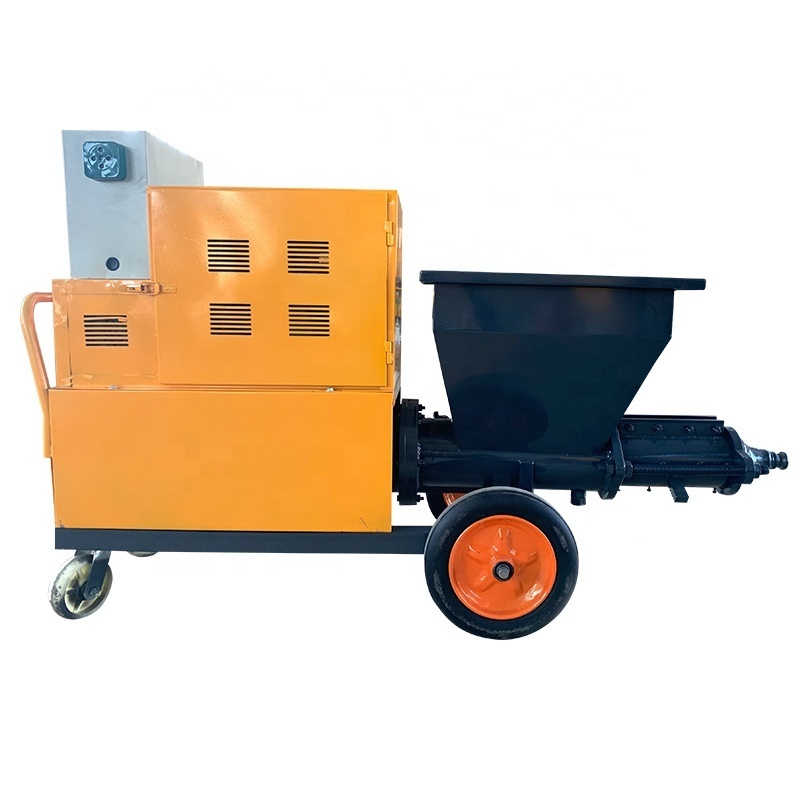

Wall Cement Mortar Spraying Machine
|
|
|
||
|
Model
|
AWY-311
|
AWY-511
|
||
|
Vertical conveying distance
|
10m
|
20m
|
||
|
Horizontal conveying distance
|
20m
|
30m
|
||
|
Sand-to-cement ratio
|
1:3
|
1:3
|
||
|
Motor power
|
4kw/Air pump motor 2.2KW
|
7.5kw/Air pump motor 2.2KW
|
||
|
Mortar conveying capacity
|
1.5m³/h
|
2m³/h
|
||
|
Work efficiency
|
100²/h
|
150²/h
|
||
|
Machine size
|
1300*450*750 (mm)
|
1780*640*1200(mm)
|
||
|
Packing size
|
1530*530*1100(mm)
|
1700*600*1100(mm)
|
||
|
Hopper volume
|
60L
|
80L
|
||
|
Inner diameter of material tube
|
32mm
|
32mm
|
||
|
Work pressure
|
3-6Map
|
5-8Map
|
||
|
Voltage
|
380V/220V
|
380V
|
||
|
Maximum passing particles
|
5mm
|
5mm
|
||
|
Application scope
|
Mortar putty coating, etc.
|
|
||
|
Factory standard equipment
|
10m material pipe, 10m air pipe, 1 gun with 5 nozzles
|
|
||
|
Weight
|
180kg
|
280kg
|
||
|
Packing weight
|
200kg
|
300kg
|
||
