Switch Type :
|
16mm
Short Body
Metal Push Button Switch
|
|
|
Metal Switch Model Number :
|
LTUS16H-10E/J/S/
RGB/3-6V
|
|
|
Mounting Hole Size(Diameter) :
|
16mm
|
|
|
Head Type :
|
High Round Head
|
|
|
Contact Configuration :
|
1NO
|
|
|
LED Lamp :
|
Ring Shaped
Tri-color
RGB
LED
Lamp
|
|
|
Optional LED Color :
|
RED, GREEN, YELLOW, BLUE, WHITE
|
|
|
Operation Type :
|
Momentray
|
|
|
Shell Material :
|
Stainless Steel (or Aluminum Alloy Black)
|
|
|
Switch Shell Color :
|
Silver
|
|
|

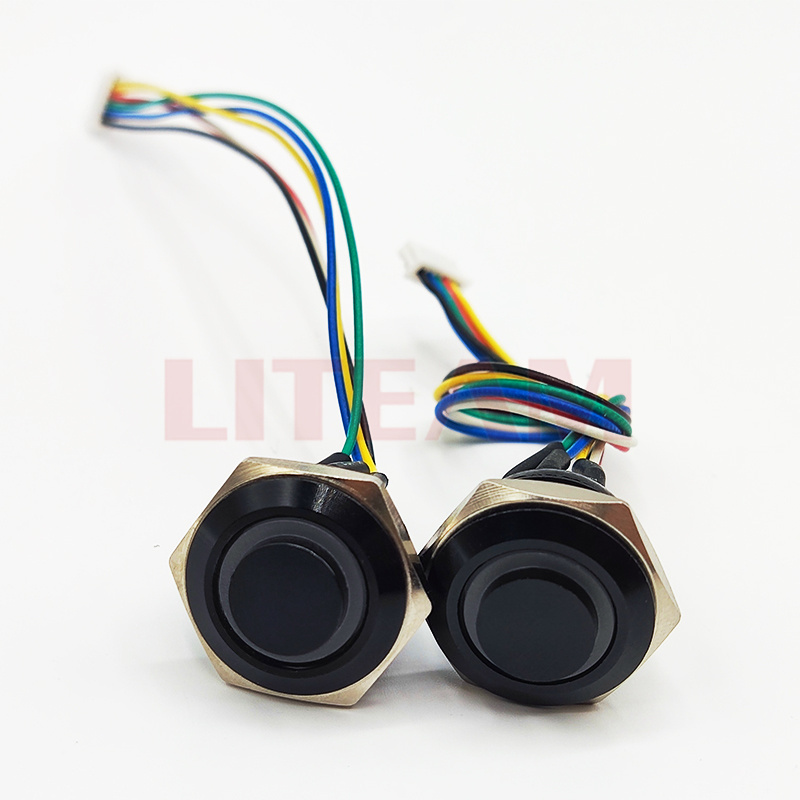

Custom Soldered With :
12.5cm 28awg wire
,
other end connected with 6pole Molex connector.
|
|
|
|
Other Accessories :
|
High Quality Nut + Waterproof Rubber O-ring
|
|
|
Brand Name :
|
|
|
LITEAM
|
LITEAM
|
|
||||
|
Certification :
|
|
|
CE
|
|
CE
|
||||
|
Max. Current :
|
3A
|
|
Max. Voltage :
|
250V
|
|
||||
|
Protection grade :
|
IP65/IP67/IP68; IK08/IK10
|
|
Mechanical Life :
|
More than 1 million time
|
|
||||
|
Contact Resistance :
|
≤50mΩ
|
|
Insulation Resistance :
|
≥1000MΩ
|
|
||||
|
Working Environment Humidity :
|
Working Environment
Humidity
|
|
Working
Temperature :
|
-25°C ~ +55°C (No freezing; Air circulation)
|
|
||||
|
Vibration Resistance :
|
50HZ, Amplitude ≈ 1.2mm
|
|
Accessories :
|
Nut, Waterproof O-ring
|
|
||||
|
Operation Type :
|
|
|
Momentary(Spring return) ; Latching(Self locking)
|
|
|
||||
|
Contact Configuration Introduction :
|
|
|
NO=Normal Open ; NC=Normal Close
|
|
|
||||
