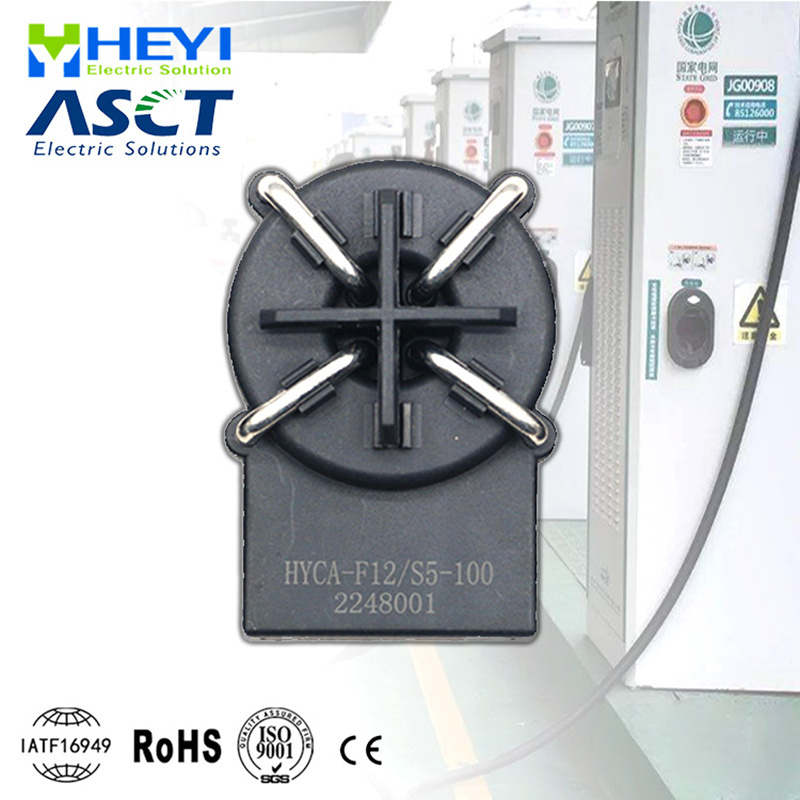

HEYI HYCA-1 High sensititivity AC DC Leakage Current Sensor HYCA-F12 for Charging Pile System Circuit DC Current Transformer

HEYI HYCA-1 High sensititivity AC DC Leakage Current Sensor HYCA-F12 for Charging Pile System Circuit DC Current Transformer

FOB Reference Price: Get Latest Price

≥5 Pieces

US $25

≥100 Pieces

US $24.5

≥1000 Pieces

US $20

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Coil Number:: AUTOTRANSFORMER

Place of Origin:: Zhejiang, China

Brand Name:: HEYI

Model Number:: HYCA-1

Mounting Type::: PCB

Features::: 3 in 1

Output::: ±2.5V

Storage Temparature::: 40℃~105℃

Static Power Consumption::: 110mW

Voltage Input, high level::: 4.2~5VDC

Working Temperature::: 40℃~105℃

Supply Voltage(VDD)::: 4.85~5.15 VDC

Voltage Input, low level::: 0~0.6VDC

Working Altitude::: ≤4000m

Quick Details

Use:: Electronic

Phase:: Single

Coil Structure:: TOROIDAL

Coil Number:: AUTOTRANSFORMER

Place of Origin:: Zhejiang, China

Brand Name:: HEYI

Model Number:: HYCA-1

Mounting Type::: PCB

Features::: 3 in 1

Output::: ±2.5V

Storage Temparature::: 40℃~105℃

Static Power Consumption::: 110mW

Voltage Input, high level::: 4.2~5VDC

Working Temperature::: 40℃~105℃

Supply Voltage(VDD)::: 4.85~5.15 VDC

Voltage Input, low level::: 0~0.6VDC

Working Altitude::: ≤4000m

Product Description

Detects direct leakage currents up to 6 mA DC to avoid failure of household residual current device type A.

This product integrates three functions of sensor, transformer and relay into one integrated sensor.

Electrical/Reliability Characteristics
Working Temperature	40℃~105℃
Storage Temparature	40℃~105℃
Supply Voltage(VDD)	4.85~5.15 VDC recommend 49*51 VDC
Static Power Consumption	110mW
Clearance (Primary-Primary/Secondary)	≥6.5mm ≥10mm
Creepage Primary-Primary/Secondary)	≥8mm ≥10mm
Voltage Input, low level	0~0.6VDC
Voltage Input, high level	4.2~5VDC
FIT	25℃= 48.755 80℃ = 213.13
Designed Life	≥20 years
Working Altitude	≤4000m

Trip-Current (residual current related characteristics.
Wav.	Freq.	Min.	Typ	Max.	Unit
AC	50Hz	20.0	23.0	26.0	mA
A0°	50Hz	11.0	15.0	30.0	mA
A90°	50Hz	10.0	20.0	30.0	mA
A135°	50Hz	10.0	24.0	35.0	mA
2PDC	50Hz	3.5	5.0	7.0	mA
3PDC	50Hz	3.1	4.6	6.2	mA
S-DC	-	3.0	4.6	6.0	mA

Trip-Time (residual current related characteristics
Wav.	Freq.	Current	TYP.	Unit
AC	50Hz	30mA	25	ms
AC	50Hz	60mA	16	ms
AC	50Hz	150mA	15	ms
AC	50Hz	5A~100A	8.5	ms
A0°	50Hz	42mA	25	ms
A0°	50Hz	84mA	18	ms
A0°	50Hz	210mA	10	ms
A0°	50Hz	42mA+6mADC	18	ms
A0°	50Hz	84mA+6mADC	15	ms
A0°	50Hz	210mA+6mADC	15	ms
S-DC		6mA	48	ms
S-DC		60mA	16	ms
S-DC		300mA	8.5	ms
2PDC/3PDC	50Hz	60mA	20	ms
2PDC/3PDC	50Hz	120mA	25	ms
2PDC/3PDC	50Hz	300mA	12	ms
2PDC/3PDC	50Hz	5~50A	12	ms
