Quick Details
-
Power:
-
1500
-
Weight:
-
50 KG
-
Dimension(L*W*H):
-
450*350*700
-
Function:
-
Multifunctional
-
Material:
-
304 Stainless Steel
-
Type:
-
Wafer Baking Oven
-
Feature:
-
Saving Energy
-
Advantage:
-
Simple Operation
-
Kw:
-
1.5
-
Color:
-
Customised
-
MOQ:
-
1 Set
-
Packing:
-
Wodoen Case
-
Size:
-
450*350*700mm
Quick Details
-
Place of Origin:
-
HENAN CHINA
-
Brand Name:
-
CHANDA/OEM
-
Voltage:
-
220V/380V
-
Power:
-
1500
-
Weight:
-
50 KG
-
Dimension(L*W*H):
-
450*350*700
-
Function:
-
Multifunctional
-
Material:
-
304 Stainless Steel
-
Type:
-
Wafer Baking Oven
-
Feature:
-
Saving Energy
-
Advantage:
-
Simple Operation
-
Kw:
-
1.5
-
Color:
-
Customised
-
MOQ:
-
1 Set
-
Packing:
-
Wodoen Case
-
Size:
-
450*350*700mm
Product Description

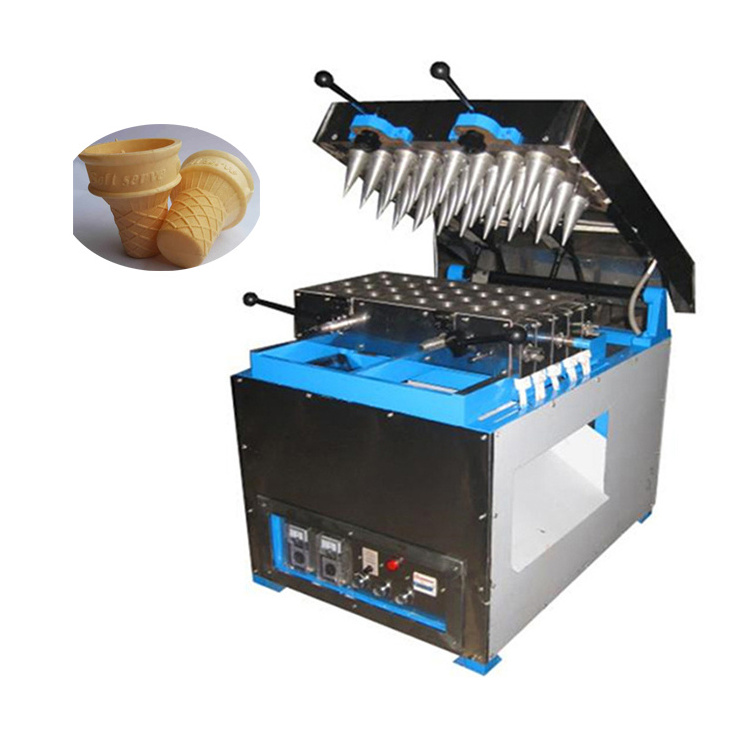

Waffle cone making machine is mainly used for making crispy ice cream cones ,widely applied in various snack shops, such as restaurant equipment, cake room equipment, shop equipment, bakery equipment, the western shop equipment, beverage shop equipment, frozen food factory equipment, etc.
1. Easy to operate, one person can operate.
2. Food grade stainless steel material.
3. Many models with different capacity for your choice, also can make different shape cone by changing different mould.
|
Model
|
SY-DST2
|
SY-DST4
|
SY-DST10
|
SY-DST12
|
|
Capacity
|
50-60pcs/ h
|
100-120pcs/ h
|
250-300pcs/ h
|
300-350pcs/ h
|
|
Baking quantity
|
2pcs/ time
|
4pcs/ time
|
10pcs/ time
|
12pcs/ time
|
|
Baking time
|
1-2min
|
1-2min
|
1-2min
|
1-2min
|
|
Voltage
|
220V/380V
|
220V/380V
|
220V/380V
|
220V/380V
|
|
Power
|
1.5kw
|
2.4kw
|
4.5kw
|
6.5kw
|
|
size(mm)
|
450*350*700
|
530*430*650
|
760*600*1050
|
800*700*880
|
|
Net weight(kg)
|
45
|
80
|
180
|
200
|
|
EXW Price
|
$970
|
$1,170
|
$2,150
|
$2,480
|
|
Model
|
SY-DST24
|
SY-DST32
|
SY-DST40
|
SY-DST60
|
|
Capacity
|
600-800pcs/ h
|
800-1000pcs/ h
|
1200-1400pcs/ h
|
2400-3000pcs/ h
|
|
Baking quantity
|
24pcs/ time
|
32pcs/ time
|
40pcs/ time
|
60pcs/ time
|
|
Baking time
|
1-2min
|
1-2min
|
1-2min
|
1-2min
|
|
Voltage
|
220V/380V
|
220V/380V
|
220V/380V
|
220V/380V
|
|
Power
|
12kw
|
15kw
|
18kw
|
21kw
|
|
size(mm)
|
1050*800*900
|
880*880*1380
|
1080*800*1440
|
1260*1140*1640
|
|
Net weight(kg)
|
280
|
320
|
600
|
850
|
|
EXW Price
|
$3,500
|
$4,000
|
$5,400
|
$8,000
|
Operation steps
1. Brush some oils on the upper mold and lower mold.
2. Adopt the temperature control knob and rise the temperature.
3. Pull the upper mold and close the lower mold when the temperature rises up.
4. Pour the ice cream cone making liquid into the low mold.
5. Close the upper mold and lower mold together.
6. Wait one to two minutes, the ice cream cone will form the shape.
7. Pull up the upper mold and open the lower mold, the finished ice cream cones will slip out automatically.
