Quick Details
-
Weight (T):
-
6
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
capacity:
-
450kn
-
slide of stroke:
-
40mm
-
strokes:
-
150-200SPM
-
Die height:
-
200-270mm
-
Width of material:
-
300mm
-
sucking length:
-
1000mm
-
Main motor power:
-
5.5kw
-
Total weight:
-
6000kg
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
YADON
-
Dimension(L*W*H):
-
6500*2500*2330
-
Weight (T):
-
6
-
Warranty:
-
1 year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
capacity:
-
450kn
-
slide of stroke:
-
40mm
-
strokes:
-
150-200SPM
-
Die height:
-
200-270mm
-
Width of material:
-
300mm
-
sucking length:
-
1000mm
-
Main motor power:
-
5.5kw
-
Total weight:
-
6000kg
Product Description
Main features

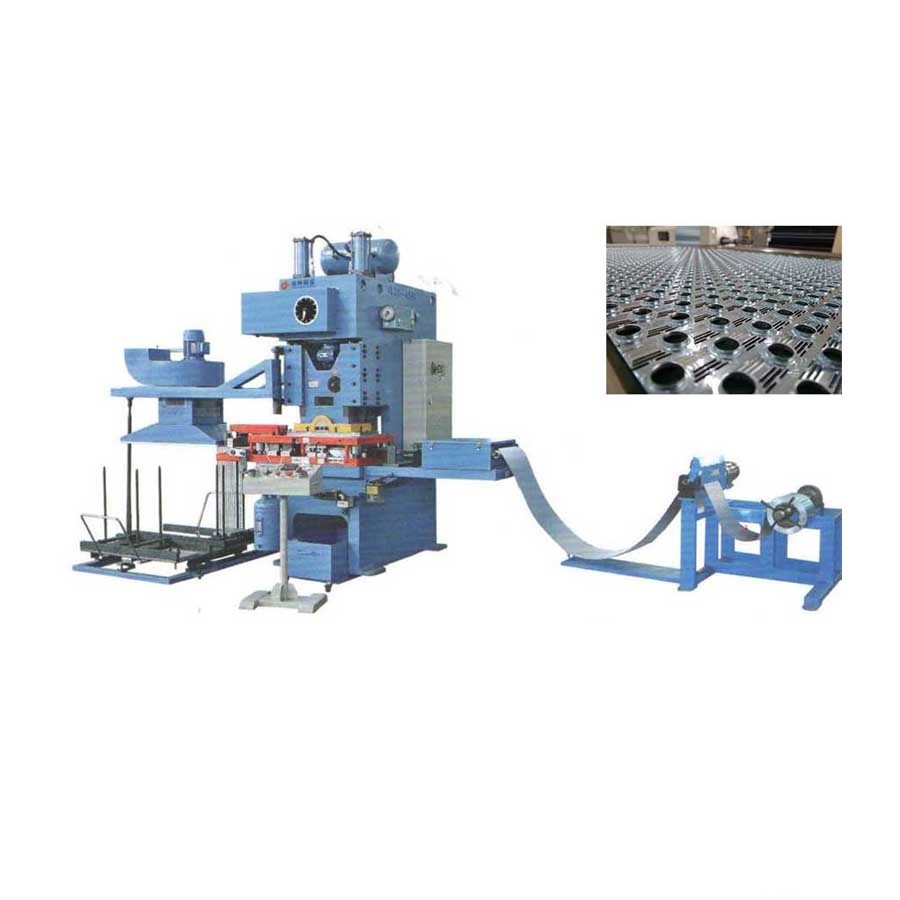

1.JL21 series C-type fins press line for the punching of air conditioner fins is specially intended for meeting the requirements for the produxtion of air conditioner fins. The line mainly consists of uncoiler, oil tank, fin press, suction unit, stacker and relevant electrical control systerm.
2. Imported PLC, counter and contact point free cam controller are adopted to meet the requirements of counting the fins cut collected as well as the function of progress change.
3. Production line of special specifications can be made subject to the user's requirements.
Detailed image
Specification
|
Model
|
|
JL21-45C
|
JL21-63C
|
JL21-45B
|
JL21-63B
|
JL21-80B
|
||||
|
Capacity
|
KN
|
450
|
630
|
450
|
630
|
800
|
||||
|
Slide of stroke
|
mm
|
40
|
40
|
40
|
60/50/40
|
60/50/40
|
||||
|
Strokes
|
s.p.m
|
150-250
|
150-250
|
100-180
|
100-150
|
90-120
|
||||
|
Die height
|
mm
|
200-270
|
210-290
|
200-270
|
210-290
|
220-300
|
||||
|
Botton size of slide
|
mm
|
500x300
|
600x350
|
500x300
|
600x350
|
600x350
|
||||
|
Size of table
|
mm
|
800x580x100
|
850x580x110
|
800x580x80
|
850x580x90
|
900x600x100
|
||||
|
Width of material
|
mm
|
300
|
300
|
300
|
300
|
300
|
||||
|
Sucking length
|
mm
|
1000
|
1000
|
1000
|
1000
|
1000
|
||||
|
Collecting height of material
|
mm
|
600
|
600
|
600
|
600
|
600
|
||||
|
Inner diameter of material rolling
|
mm
|
Φ75
|
Φ75
|
Φ75
|
Φ75
|
Φ75
|
||||
|
Outer diameter of material rolling
|
mm
|
850
|
850
|
850
|
850
|
850
|
||||
|
Main motor power
|
kw
|
5.5
|
7.5
|
5.5
|
7.5
|
11
|
||||
|
Overall diamensions
|
mm
|
6500x2500x2330
|
6500x2500x2500
|
6500x2500x2500
|
6600x2500x2800
|
6600x2500x2800
|
||||
|
Total weight
|
kg
|
6000
|
7500
|
6000
|
7500
|
8500
|
||||
|
Die height adjustment
|
|
Motorised
|
|
Manual
|
Motorised
|
|
||||
|
Overload protect type
|
|
Hydraulic
|
|
Block shearay
|
Hydraulic
|
|
||||
|
Speed adjustment
|
|
FDI
|
|
|
|
|
||||
|
Signal output
|
|
Rotary encoder
|
|
|
|
|
||||
|
Angle display
|
|
Pilot pin & diginal mode
|
|
|
|
|
||||
|
Crank bearing way
|
|
Roller bearing
|
|
Bronze bush
|
|
|
||||
