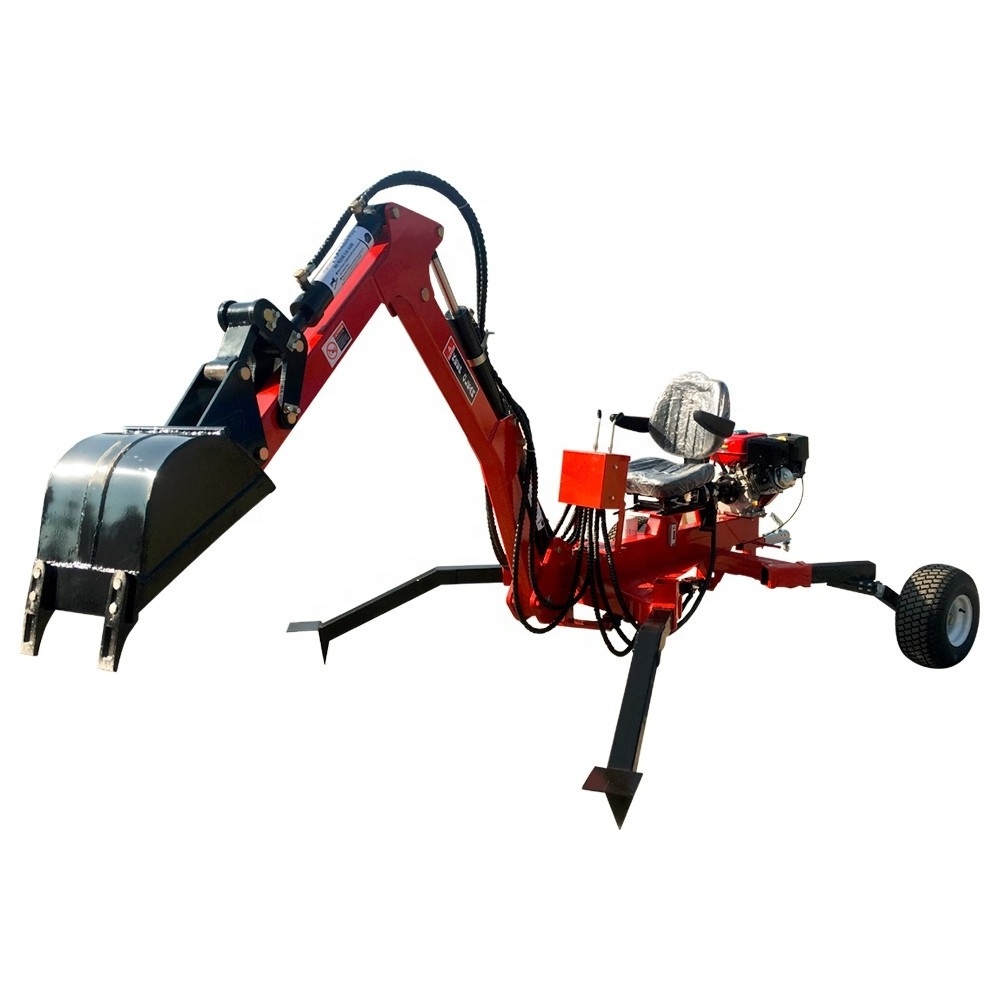

1) Mini towable backhoe matched any vehicles;
2) It is used for dicthing in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads;
3) Hydraulic transmission is used. featured with compact structure. Flexibility, convenient operation and quick mounting and dismounting.
|
SPECIFICATIONS FOR BACKHOE
|
|
|
|
Model
|
LW-6
|
|
|
Power
|
9HP / 15HP Gasoline engine (or diesel engine)
|
|
|
Structure Weight
|
550Kgs
|
|
|
Max. Digging Depth
|
2400mm
|
|
|
Max. Digging Radius
|
2800mm
|
|
|
Max. Digging Height
|
2500mm
|
|
|
Max. Unloading Height
|
1200mm
|
|
|
Stabilizer Wdith
|
1800mm
|
|
|
Swing Angle For Boom
|
140 degree
|
|
|
Bucket Turning Angle
|
160 degree
|
|
|
Bucket Capacity
|
0.036m³
|
|
|
Bucket Width
|
Optional: 220mm/300mm/400mm/500mm,600mm
|
|
|
Coupler Size
|
2" or 50mm Ball For Easy Towing
|
|
|
Dimension (L x W x H)
|
1800mmx1100mmx900mm
|
|
|
Quantity in 20'GP / 40'HQ
|
12/36PCS
|
|
|
Remark
|
Please contact us for more details, thanks.
|
|
Name:
coupler
ball
Original: China
*
2" size for North American market.
* 50mm size for Europe market.
Please freely contact with us for more details, thanks.
Name:
pressure reducing valve for the steering system
Original:
China
It's for avoide steering arm damage when operating the steering while digging into the soil.
It's pressure can be adjustable, please freely contact with us for more details, thanks.
1) Control Valve Bank
2) comfortable seat
3) hydraulic oil input
please freely contact with us for more details, thanks.
* High strength parts make machine more reliable.
* Epoxy powder coating make machine more bright color and rust-resisting.
please freely contact with us for more details, thanks.
V type bucket.
( width from 600mm to be 220mm)
600mm width bucket with teeth.
log grapple thumb.
9hp standard gasoline engine ( 270CC) .
EPA emission approved for North America market.
or EC emission approved for Europe.
15hp
optional gasoline engine.
(420CC)
EPA emission approved for North America market.
or EC emission approved for Europe.
9hp or 13hp Honda
optional gasoline engine. (GX270 or GX390)
|
Packaging
|
|
|
|
Size
|
1800 (L) * 1100 (W) * 900 (H)
|
|
|
Weight
|
550KG/PCS
|
|
|
Packaging Details
|
Iron frame packing.
*For 1PCS sample machine: 1800mmx1130mmx900mm iron frame package with film dust-cover. *For 2pcs in one PKG. 1800mmx1130mmx1800mm iron frame package with film dust-cover. |
|
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
