Quick Details
-
Dimension(L*W*H):
-
3930x3000x3660mm
-
Year:
-
2024
-
Power (kW):
-
110 kW
-
Weight (KG):
-
9500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Banbury Mixer
-
cooling system:
-
water
-
seal:
-
no oil or dust leakage
-
rotor:
-
chrome plated
-
tilting system:
-
hydraulic tilting or worm gear reducer
-
main motor:
-
ariable speed,save energy
-
support (frame) material::
-
casted iron or casted steel
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guangyue/OEM
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
3930x3000x3660mm
-
Year:
-
2024
-
Power (kW):
-
110 kW
-
Weight (KG):
-
9500 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Banbury Mixer
-
cooling system:
-
water
-
seal:
-
no oil or dust leakage
-
rotor:
-
chrome plated
-
tilting system:
-
hydraulic tilting or worm gear reducer
-
main motor:
-
ariable speed,save energy
-
support (frame) material::
-
casted iron or casted steel

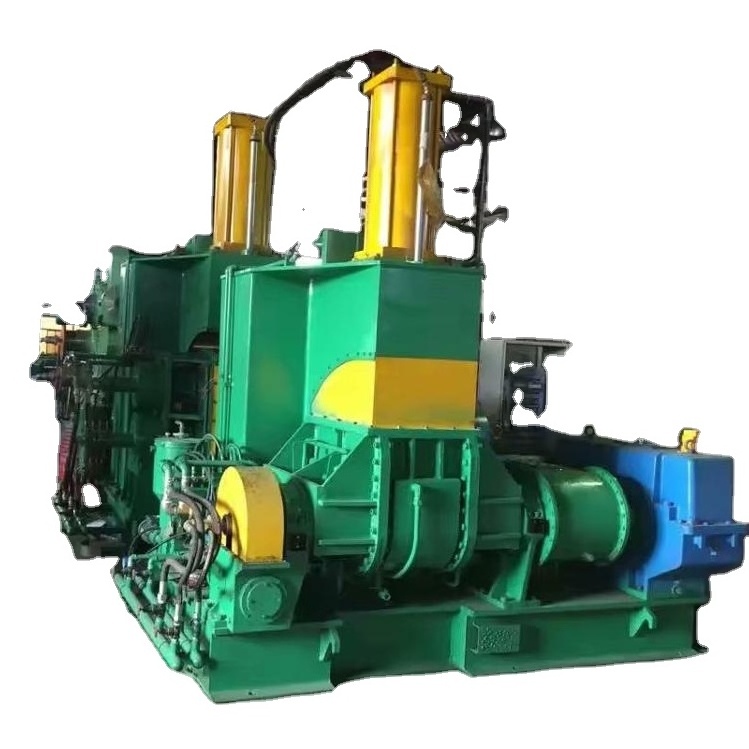

Dust and Leak Proof Rubber Kneader Banbury Mixer with Lower Price
Advantage :
1. High mixing performance
2. Prevented environmental pollution
3. Easy installation ,operation ,maintenance
4.Low the running cost
Application :
Most Suitable Kneeding application:EVA,
Rubber & TPR,Sole,Rubber ,Roller,Hoses,Belts,Sponges,Sportbolls,Vibration
Insulator,Elastic Cord,Sealing Materials,Tire,tapes,
Master Batches,Pigment,Ink Automobile & Electric Rubber
Parts,Chemical In-dustry Compounds.
Feature :
1,An automatic temperature and time control system to provide a 100% mixing effect.
2,Easy to clean chamber and changing colors.
3,In 6-10 minutes/batch of output equivalent to 2-3units of mixing roller.
4,Pressurized and sealed mixing chamber to provide high
mixing performance and prevented environmental pollution.
5,Easy instation,operation and maintenance tolower the running cost.
Parameter of the Kneader Machine :
|
Parameters |
VERSION |
||||
|
X(S)N-35/30 |
X(S)N-55/30 |
X(S)N-75/30 |
X(S)N-110 |
||
|
Net chamber volume |
75 |
125 |
175 |
250 |
|
|
Working volume |
35 |
55 |
75 |
110 |
|
|
Front/back rotor friction ratio |
1.22 |
1:1.22 |
1:1.22 |
1.22 |
|
|
Power |
55 |
75 |
110 |
160 |
|
|
Main motor rotation speed |
985 |
985 |
985 |
985 |
|
|
Turn angle |
140 |
140 |
140 |
140 |
|
|
Size |
3200*1900*2950 |
3750*1950*3050 |
3760*2143*30500 |
3930*3000*3660 |
|
|
Weight(kg) |
6500 |
7800 |
10000 |
16000 |
|
