Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM19-FJ-5
-
Material:
-
Aluminum Alloy Black
-
LED color:
-
Red.yellow.green.white.blue.double Color
-
Function:
-
1NO 1NC
-
Mounting Hole Size:
-
19MM
-
Mechanical Life:
-
500000 Cycles
-
Head shape:
-
Flat Head
-
LED Voltage:
-
2V/3V/5V/6V/12V/24V/36V/110V/220V/others
-
Electrical Life:
-
100000 Ccles
-
Application:
-
Industrial Control
-
Operation type:
-
Self-locking Momentory
-
Certification:
-
CE, ROHS, UL
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM19-FJ-5
-
Material:
-
Aluminum Alloy Black
-
LED color:
-
Red.yellow.green.white.blue.double Color
-
Function:
-
1NO 1NC
-
Mounting Hole Size:
-
19MM
-
Mechanical Life:
-
500000 Cycles
-
Head shape:
-
Flat Head
-
LED Voltage:
-
2V/3V/5V/6V/12V/24V/36V/110V/220V/others
-
Electrical Life:
-
100000 Ccles
-
Application:
-
Industrial Control
-
Operation type:
-
Self-locking Momentory
-
Certification:
-
CE, ROHS, UL

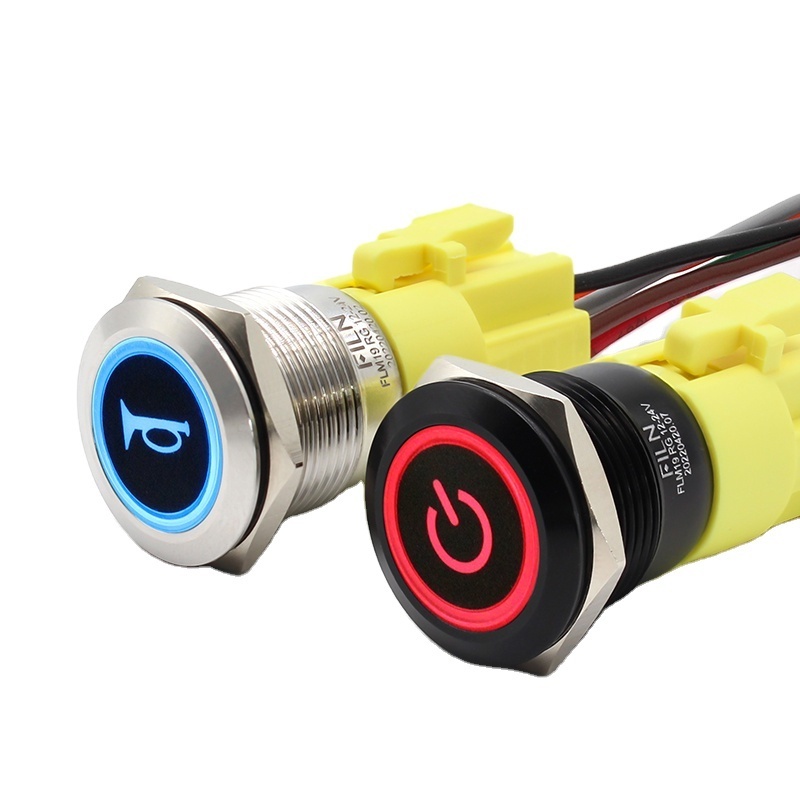

19MM PUSH BUTTON SWITCH WITH SYMBOLS 5A 220V WATERPROOF BUTTON SWITCH MOMENTARY LATCHING 24V 110V 220V WITH HARNESS SWITCH
Mounting Hole Size: 19MM
Function: 1NO1NC
Symbol choice: As customer's request
Material: Stainless steel/Brass/Black
Voltage Choice: 3V-380V
LED Type: Non-Polarity, do not divide the positive and negative.
Operating Way: Latching and Momentary
Waterproof Degree: IP67
Harness Detail: Usually use AWG20, and 20cm wire length. It's okay to customized wire material and length.
If you are interested in it, pls do not hesistate to contact us directly.
[Push Button Switch Contact Configuration:momentary]:Push button it and finger keep it ON,finger release, it come back itself,OFF.latching: Push it, ON; Push it again, OFF. 1NO1NC One piece Package include 185 Symbols.
[Provide 2 ways for wiring]:1.LED Light Always ON.2.Push the Button, LED ON.
[High Quality Metal Material]:1.Silver Body Color:304 Stainless Steel, Anti Corrosion.2.Black Body Color:Andozed Aluminum alloy,Matching your Panel.
[LED Power Supply]:12-24VDC Push Button Switch light symbol
[FREE symbols]: IP65 Degree,can be used in wet or dusty environment. Connect Socket:Include connect socket with 20cm Free Wire.
