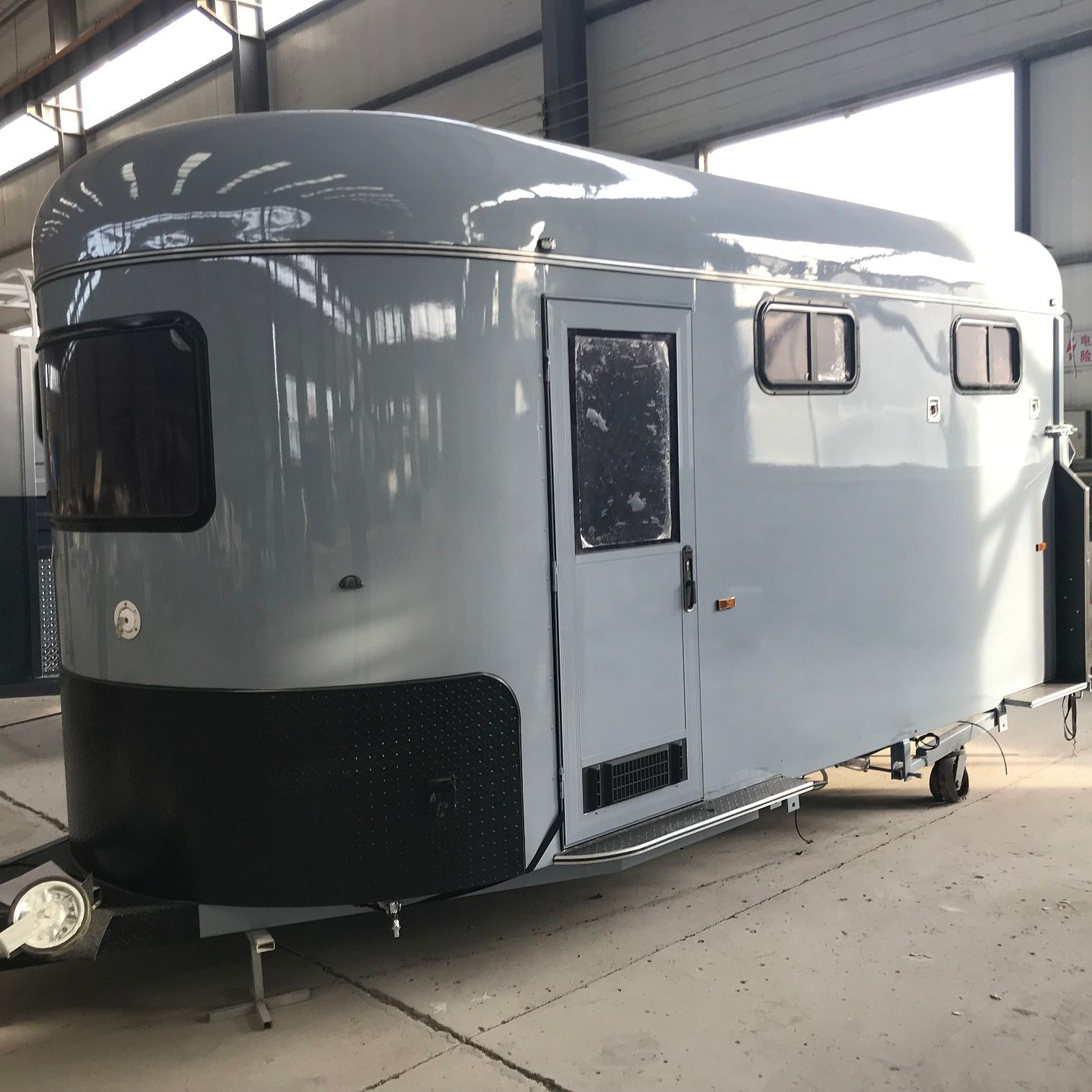

horse float angle load deluxe 2 horses manufacturer

horse float straight load deluxe 2 horses manufacturer

1. The double hot dip galvanized chassis offers a 15-20 years guarantee against rusting in bad working condition.

2. Different ATM will need different tyres . Three horse and more will choose 205R tyres which can keep transportation much safer also conform the ADRS.

3. 50*50 axles making the trailer more strong.

4. 17.5mm ultra thick anti-slip rupper floor

5. Water tank including the level display , Show you the detailed information .

6. protection cover for gas struts in tailgate .

7 . 5MTs’ gooseneck adopt gas brake .

8 . Beautiful style of closed front .

9. FRP roof is much tougher

10. Upgated U shape big horse ring is tougher and more convenient.

11. Button lock in the cupboard , practical and convenient .

12. Australian standard coded Trailer chain.

3mm Fiber-glass roof ,durable and sturdy

Double electric axles ,50*50 , making the trailer more strong

Rock suspension

Adjustable Knight wheel , Floats can be parked in a safe and secrue place

Drop-down windows and side windows with high quality

All the LED Conform to ADRS

Rug rack with small door

Break away System guarantee the safety of floats and horse in some extreme cases

Beautiful and durable cupboard

Exquisite saddle box

All the screws&nuts&handles use the stainless steel.

Specification :

Model	STD-2HAL-L860
Materials	Chassis Material: double hot dip galvanized RHS (3.5mm-4.0mm)
	Frame Material: double hot dip galvanized RHS (2.5mm)
	Body Panel: galvanized sheet (1-1.5mm)
	Roof: Special molded FRP
Brake	Perfect security structure design, double axle electric brakes
Drawbar	Drawbar Checker Plate 1.2mm aluminium
	Drawbar Safety Chain two & Bracing Wheel one
Suspension	Roll rocker tandem spring 7 plate
Axles	Two special trailer axles 50*50
Wheels & Tyre	Five 185R14 tyres and 14' aluminum alloy rims including a spare wheel
Rubber Matting	18mm special plywood for floor& ramp door
	Rubber Matting For Inner Side Panel            6mm Rubber Matting
	Rubber Matting For Floor & Ramp Door     17.5 mm anti-slip rubber sheet
Windows& Doors	Front Window (mm) 1220*610
	Side Sash Windows   600mm*400mm*4
	Skylight   two large size upturning ventilation windows
	Rear Upper Door (mm)1980*1065  Strut & High-intensity anti-rust strut
	Ramp Door (mm)  2030*1210
	Side Door (mm)   1730*615
	Hinges for Rear Upper Door    special 6mm diameter copper hinges
Supporting Wheel	Swing-able knight supporting wheels to make parking safe and reliable
Lights& Retro Reflectors	Trailer Plug        Seven-prongs Plug
	Rear Lights brackets aluminium
	LED interior lights, two small LED sidelights, two LED combination taillights
	Retro Reflectors   8
Auxiliary Fittings	Cupboard          Front
	Horse Protection Frame  fully padded
	Horse Ring        6
	Saddle Rack    Two
	Rug Rack          Side
	Saddle Box       one
Dimensions	Body Dimension (L x W x H: mm) : 4120 x 1980 x 2230
	Inner Dimension (L x W x H: mm) : 4070 x 1930 x 2155
	Overall Dimension(L x W x H: mm): 4970 x 2290 x 2600
	Length of Tone (mm):      850
Empty Weight	1500 KGs
Carrying capacity	1800 KGs
