- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1350*900*1800 mm
-
Weight:
-
550 kg
-
Marketing Type:
-
New Product
-
Machine Name:
-
Cattle/Horse/Pig Feed Crusher Mill|Household Electric Feed Mill
-
Raw material:
-
Wheat Maize Corn
-
Application:
-
Flour Production Industry
-
Name:
-
Cattle/Horse/Pig Feed Crusher Mill
-
Usage:
-
Powder Making
-
Product name:
-
Household Electric Feed Mill
-
Function:
-
Grain Flour Grinder
-
Feature:
-
High Efficiency Low Cost
Quick Details
-
Max. Capacity:
-
100-400 kg/hour
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Longer Food Machinery
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1350*900*1800 mm
-
Weight:
-
550 kg
-
Marketing Type:
-
New Product
-
Machine Name:
-
Cattle/Horse/Pig Feed Crusher Mill|Household Electric Feed Mill
-
Raw material:
-
Wheat Maize Corn
-
Application:
-
Flour Production Industry
-
Name:
-
Cattle/Horse/Pig Feed Crusher Mill
-
Usage:
-
Powder Making
-
Product name:
-
Household Electric Feed Mill
-
Function:
-
Grain Flour Grinder
-
Feature:
-
High Efficiency Low Cost
Product Description

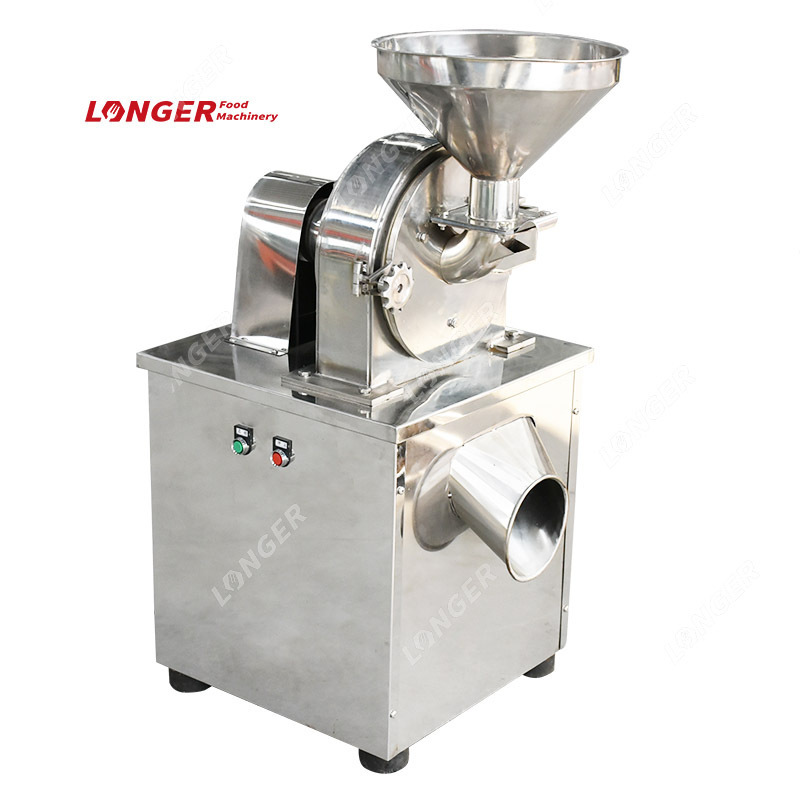

Crushing Mill machine has wide application and is widely used for pharmaceutical industry,chemical industry, pesticide industry, foodstuuf industry,grain industry and so on. Using the relative motion between movable and fixed teech disc, the raw materials can be crushed undertaking the comprehensive actions such as impacted by teech,friction, impacted between raw materials, and finally the raw materials are crushed.
The comminuted material can be discharged directly from the grinding chamber, and the particle size is
determined by changing the screen mesh with different mesh numbers.(The screen in the machine is available with the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm)
determined by changing the screen mesh with different mesh numbers.(The screen in the machine is available with the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm)
Cocoa Crushing Machine's Testing Pictures:
Features of Crusher Mill Machine :
Specification
|
Model
|
LFM-S20C
|
LFM-S30C
|
LFM-S40C
|
LFM-S50C
|
LFM-S60C
|
|
Capacity(kg/h)
|
50-100
|
50-200
|
100-400
|
200-500
|
200-800
|
|
Crushed powder fineness(mesh)
|
20-120
|
20-120
|
20-120
|
20-120
|
20-120
|
|
Cutter diameter(mm)
|
200
|
300
|
350
|
500
|
550
|
|
Host power(kw)
|
4
|
5.5
|
11
|
15
|
18.5
|
|
Cleaning motor power(kw)
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
|
Dimension(mm)
|
1000*500*1200
|
1200*700*1650
|
1350*900*1800
|
1400*900*1950
|
1600*1100*2100
|
|
Weight(kg)
|
220
|
300
|
550
|
670
|
750
|
Important reminder:
1,The technical parameters are for reference only.
2,The product quotation is for reference only, It is based on the actual purchased model and configuration.
3,For more information, please call or consult customer service.
