Quick Details
-
Material:
-
zinc alloy
-
Size:
-
120x56x18mm
-
Certification:
-
CE ROHS ip68
-
Double frequency:
-
125khz
-
Warranty:
-
1 year
-
Output:
-
wiegand 26 /standalone access controller
-
Support card type:
-
TK4100 . EM4200 , EM4100
-
Color:
-
silver
-
Application:
-
access control sytem
-
Operation system:
-
Windows ME.2000.ME.NT.XP/window 7/8/10/11
Quick Details
-
Frequency:
-
125KHz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DWECCRF
-
Material:
-
zinc alloy
-
Size:
-
120x56x18mm
-
Certification:
-
CE ROHS ip68
-
Double frequency:
-
125khz
-
Warranty:
-
1 year
-
Output:
-
wiegand 26 /standalone access controller
-
Support card type:
-
TK4100 . EM4200 , EM4100
-
Color:
-
silver
-
Application:
-
access control sytem
-
Operation system:
-
Windows ME.2000.ME.NT.XP/window 7/8/10/11
Product Description

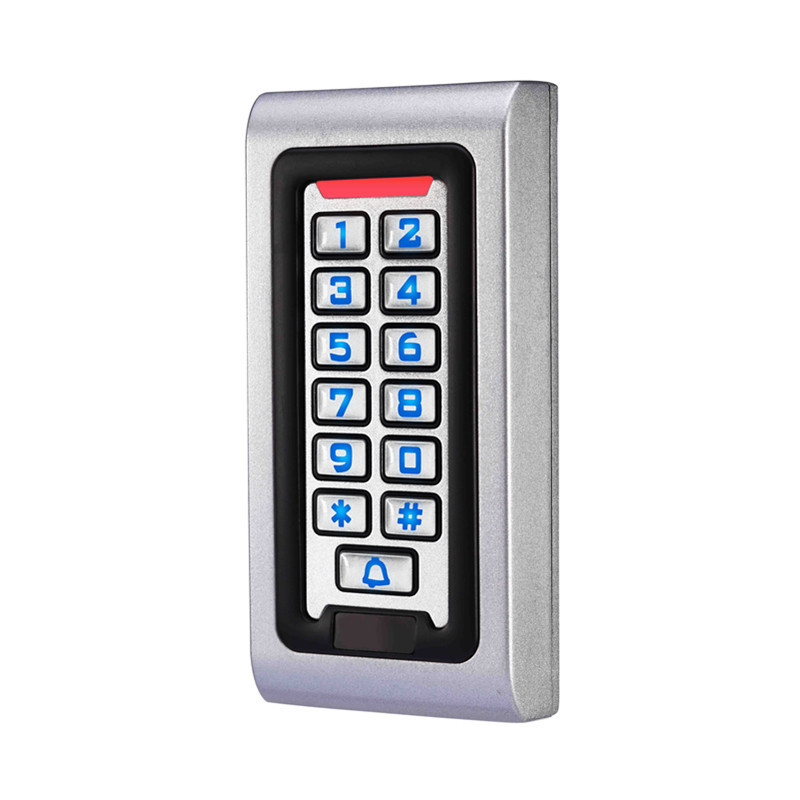

IP68 waterproof 125khz DC 12V acs secure resident metal keypad smart card reader door access control system rfid
Metal waterproof IP68 standalone controller D008-C201
The product is Contact-less inductive card Metal Password Access Controller，According to the model, respectively support EM,
Mf cards， It is one of the most advanced stand alone access controller. It uses unique metal exterior design, Dexterity
keyboard panel operation, Built-in high-grade microprocessors, Strong anti-interference ability, Safety and reliability is
extremely high, can provide a powerful security for 2,000 users. It has strong functions, such as low power consumption, Luminous
keyboard, independent passwords, wiegand output, the output short circuit protection, door magnetic alarm, prevent demolition
alarm, exit button, the doorbell interface, level of security Settings, etc. widely used in home, office, residential area and
other public places.
2. Features
Low power consumption: less than 30mA standby current
Luminous keyboard: the night can also operate keyboard
User capacity: support 2,000 users
Independent password: can use password which irrelevant with the card to open the door
User modification password: Users can revise the door password
Search speed: charge to open the door time less than 0.1 S.
Output short circuit protection: electric lock or alarm output circuit within 100 μS when shut down automatically output
Wiegand output: With Wiegand output interface，Wg26 card number
Usable keyboard delete card number: After card is lost, usable keyboard delete card， Thoroughly eliminate safety lapses
The demolition alarm: Illegal dismantling machine, built-in alarm sound buzzer
The bell button and interface: key and circuit segregation, external any the doorbell.
|
Fetures
|
|
Description
|
|
||
|
Work Voltage
|
|
DC9-28V
|
|
||
|
Reading Range
|
|
2 to 8cm depends on cards or tags
|
|
||
|
Capacity
|
|
2000 users
|
|
||
|
Weight
|
|
500g
|
|
||
|
Box Dimension
|
|
19*13*6CM
|
|
||
|
Waterproof rate
|
|
ip 68
|
|
||
Packing & Delivery
Package include:
1 x wiegand 26 standalonea access controller ( This link for reader only , not included any cards or tags in video )
1 x wiegand 26 standalonea access controller ( This link for reader only , not included any cards or tags in video )
FAQ
Q: Do this reader reader and writer ?
A: No , this reader is read only , can not write
Q: Can you offer SDK ?
A: This reader do not need SDK , if it use as wiegand 26 reader, need work with tcp ip access controller .
if it work as standalone access controller , it can work without network .
Q: What frequency do it supports ?
A: It support 125khz cards and tags . (But ISO15693 and 125khz H I D cards and tags, 13.56mhz i CLASS cards or tags not support .
Q: What payment way do you accept ?
A: We accept pay via alibaba trade assurance , paypal , western union or tt via bank , you can choose the way you like .
Q: What is your MOQ ?
A: MOQ 1 pcs , if you need customer-defined LOGO , ODM serivice , usually need 200pcs .
