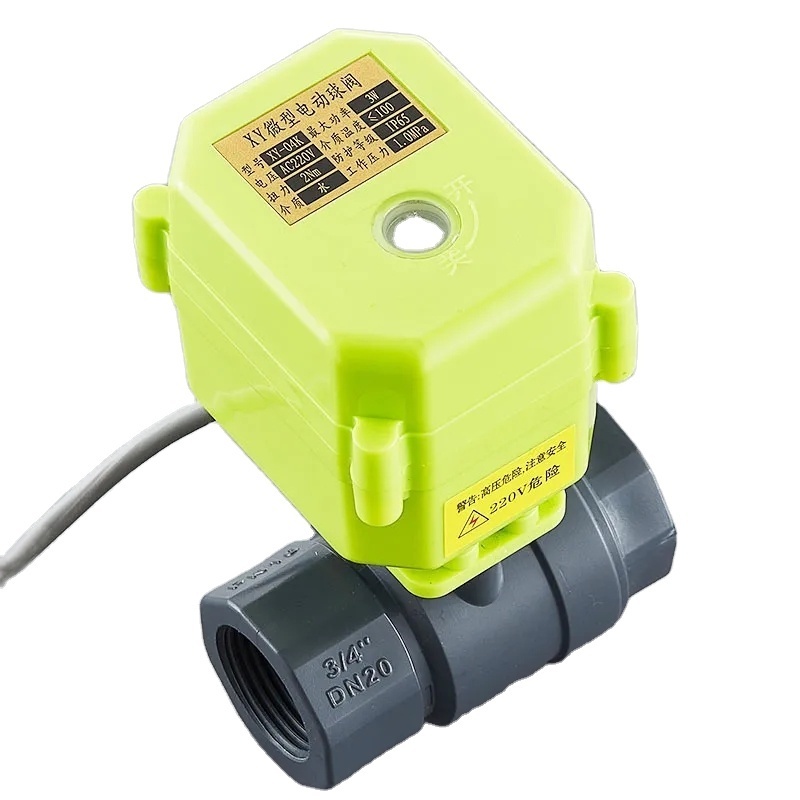

High quality 2 Way DN15 / DN20 2Nm Motorized Ball Valve 1/2" / 3/4" PVC ON / OFF 5S 2 Wire Power-off Reset with Signal Feedback

Features:

1. beautiful appearance, compact, all-metal gear transmission mechanism, reliable performance, output torque, long life;

2. the electrical spacing, positioning accuracy, consistency is very high;

3. actuator and valve assembly can be multi-angle assembly, convenient in demand for space allocation;

4. Ball floating seal structure, no drip, suitable for heavy dirt and long-term non-action situations

5. Replace solenoid valve or solenoid valve does not work properly environment;

6. Protection level can reach IP65, can be used in a relatively humid environment.

Specification :

Maximum working pressure : 1.0Mpa

circulation means : water, air

rated voltage : AC / DC9-24V  / AC220V optional

Wiring Control Methods : XY-04K

Max.working current : 100mA

Open / close time : < 5 S

Product life: 100,000 times

Valve body material : PVC

Motor power:<3W

Actuator Material : Engineering plastics

Seal Material : EPDM & PTFE

Rotation of actuator : 90 degree

Max. Torque output : 2 n. m

Medium temperature: 0-40°C

Manual override : NO

Protection class : IP65
