Quick Details
-
Brand Name:
-
S-Creation
-
Model Number:
-
C6048
-
Work Time (h):
-
24H
-
Certificate:
-
CE
-
Warranty:
-
1 year
-
Material:
-
ABS
-
Color:
-
Black
-
Function:
-
charging
-
Feature:
-
Quick start instructions
-
Usage:
-
off grid solar system
-
USB output:
-
5V/2A
-
Display:
-
LCD Screen
Quick Details
-
Type:
-
PWM
-
Application:
-
Lighting Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
S-Creation
-
Model Number:
-
C6048
-
Work Time (h):
-
24H
-
Certificate:
-
CE
-
Warranty:
-
1 year
-
Material:
-
ABS
-
Color:
-
Black
-
Function:
-
charging
-
Feature:
-
Quick start instructions
-
Usage:
-
off grid solar system
-
USB output:
-
5V/2A
-
Display:
-
LCD Screen
Products Description
LCD Symbol
Solar Controller
-
USB Output Voltage
: 5V
-
Battery Voltage
: 12V/24V auto can be choosed
-
Battery type
:
Lead-Acid Battery & Lithium Battery
-
Electric Protection
: Over-current and short-circuit protection, inverse connection protection, low voltage and overcharge protection, over load and over charge protection
- Easy to Use : Comes with a LCD display that can clearly indicate the status and data, it can be conveniently switched.modes and parameter configuration
- Suitable for Off arid Solar Energy System with solar panels. Use in home,industrial. Commercial, camping RV etc
- Easy to Use : Comes with a LCD display that can clearly indicate the status and data, it can be conveniently switched.modes and parameter configuration
- Suitable for Off arid Solar Energy System with solar panels. Use in home,industrial. Commercial, camping RV etc
Details Images
> ABS material
> Smart large screen console
>
Wall-mounted design
>
Easy to install and save space
>
Terminal
Product Features

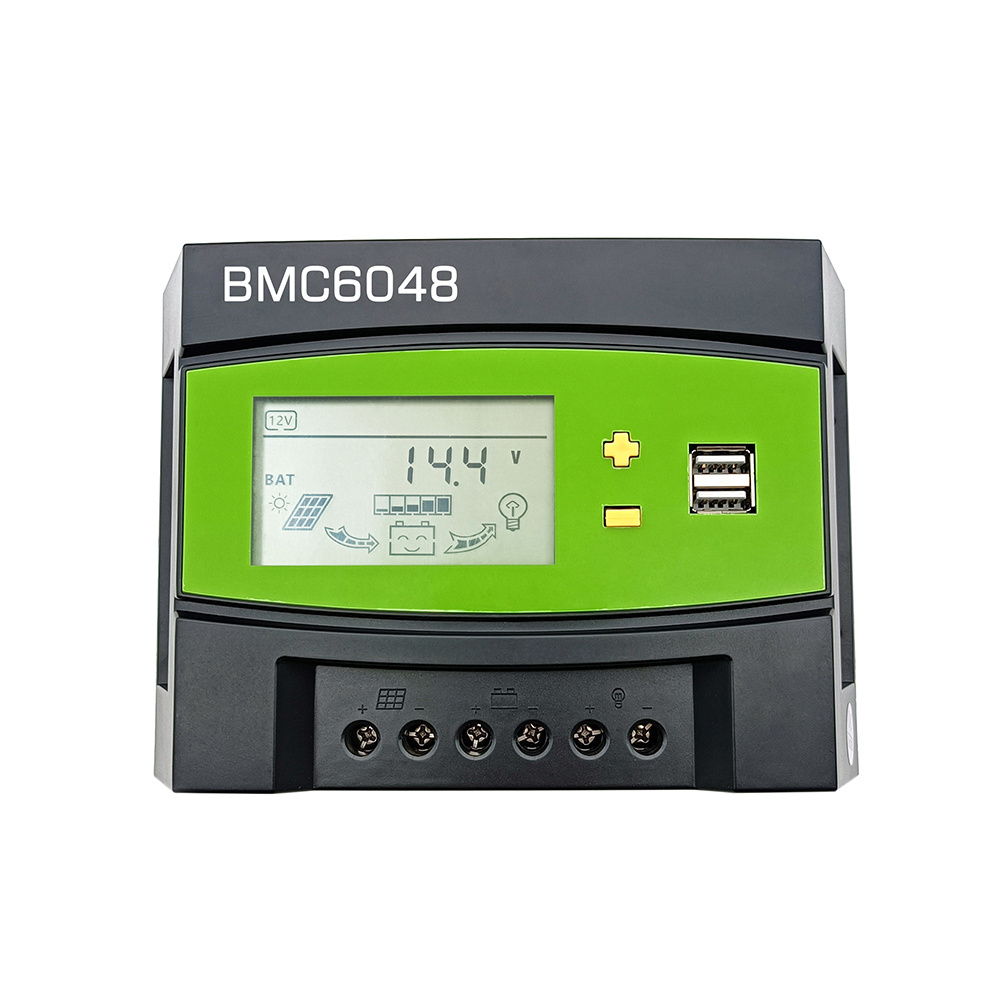

This series controller is a PWM charge controller with built in LCD that adopts the most advanced digital technique.
The multiple load control modes enable it can be widely used in solar off grid system, traffic signal, solar street light, etc.
* System voltage of battery automatic detection;
* Intelligent PWM charging: Bulk, Absorption, Float, Equalization;
* LCD display with Back-lighting shows device’s operating data and working condition;
* Humanized simple button operation; Adjustable charge-discharge control parameters;
* Support of various battery types: Lead-acid battery (AGM, Gel, Flooded), Lithium battery (LiFePO4, LiNiCoMnO2) and etc;
* Multiple load control modes: Manual Control, Light Control, Reverse Light Control, Light and Dual Time Control;
* Automatic temperature compensation and accumulated function of charge and discharge;
* Double USB output 5V/2A;
* Perfect electronic protections.
Product Paramenters
|
Model
|
YSC4048
|
|
C6048
|
|
|||
|
Current
|
30A
|
40A
|
50A
|
60A
|
|||
|
Voltage
|
12/24V48V
|
|
|
|
|||
|
size（mm）
|
179*105*44
|
|
184*130*48
|
|
|||
|
Battery Types
|
Lead-Acid Battery & Lithium Battery
|
|
|
|
|||
|
Charging Stages
|
Four-Stage PWM Charging
|
|
|
|
|||
|
Mount
|
Wall mounting
|
|
|
|
|||
|
Note
|
1. LCD with Backlight shows the Current & Voltage of solar panel and battery;
2. Max Voltage of Solar Panel 100V;
3. DC Load with Light and Dual Time Control;
4. Two USB 5V/2A;
5. Perfect Protections.
|
|
|
|
|||
