All our products have passed the CE, CCC, ROHS etc. certifications.
-
Our push buttons use 95% silver contacts,with good contact performance.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China, ZHE
-
Brand Name:
-
Yueshun
-
Model Number:
-
YD19-10/L
-
Body Color:
-
Black house
-
Rating:
-
1A 24VDC
-
Head shape:
-
Flat Round head
-
Certification:
-
CE Rohs
-
Product name:
-
Anti Vandal Piezo Touch Switch
-
Operation type:
-
Momentary
-
Protection rating:
-
IP68
-
Material:
-
Aluminum Anodized
-
Mounting Hole Size:
-
19mm
Quick Details
-
Protection Level:
-
IP68
-
Max. Current:
-
200mA
-
Max. Voltage:
-
24V DC/ AC
-
Place of Origin:
-
China, ZHE
-
Brand Name:
-
Yueshun
-
Model Number:
-
YD19-10/L
-
Body Color:
-
Black house
-
Rating:
-
1A 24VDC
-
Head shape:
-
Flat Round head
-
Certification:
-
CE Rohs
-
Product name:
-
Anti Vandal Piezo Touch Switch
-
Operation type:
-
Momentary
-
Protection rating:
-
IP68
-
Material:
-
Aluminum Anodized
-
Mounting Hole Size:
-
19mm
YUESHUN PUSH BUTTON SWITCH
-Professional manufacturer of custom
high quality
metal push buttons.
We can print the pattern you provide on the Piezo Switch's button
Product Display

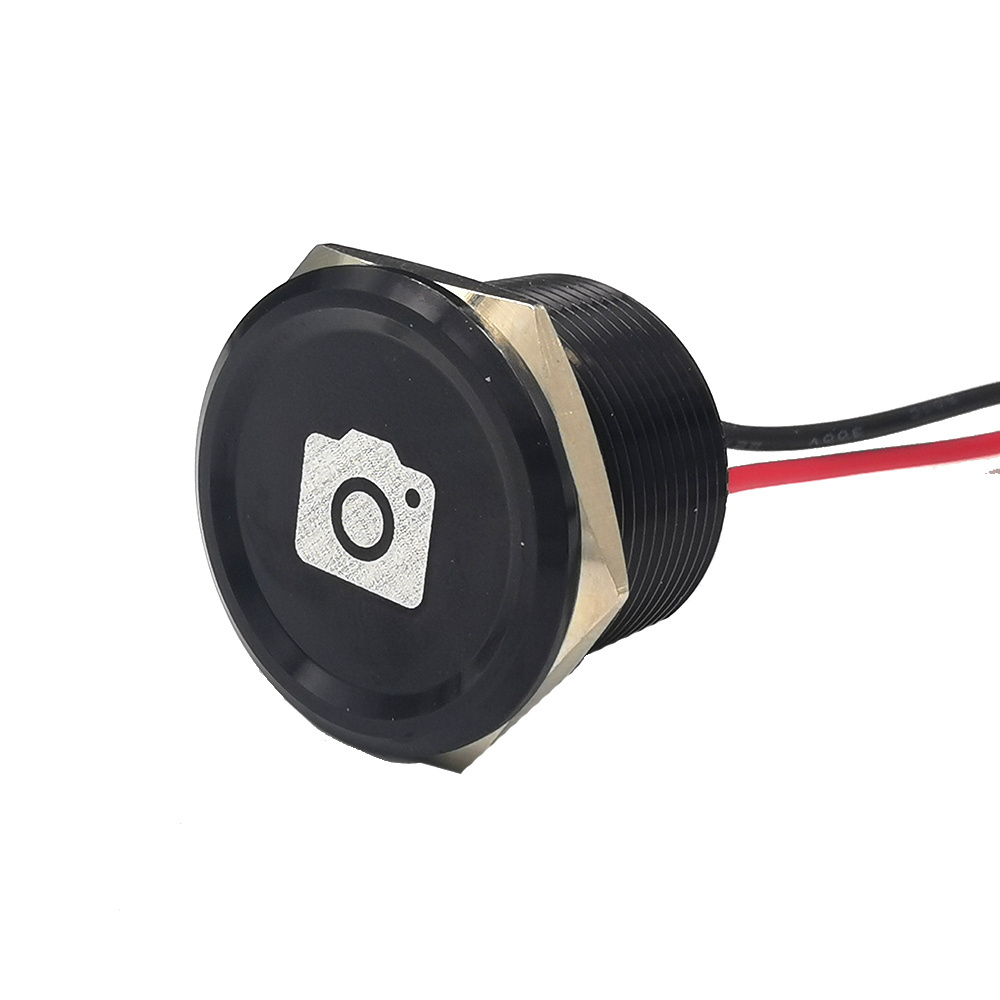

IP68 custom printing Black aluminum enclosure house on off Momentary normally open piezo switch 22 mm
★All our products have passed the CE, CCC, ROHS etc. certifications ★Our push buttons use 95% silver contacts,with good contact
performance.
★Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★It is a Good quality push button, its push feeling is very good.
★Our push buttons are made of anti-damage metal, not easy to fade, excellent performance,
IP67 protection level.
IP67 protection level.
★It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Product Paramenters
|
|
|
|
Brand Name
|
YUESHUN
|
|
roduct Name
|
Metal Piezo Switch
|
|
Mounting Hole Size
|
22 mm
|
|
Max Switch Rating
|
200mA / 24VDC/AC
|
|
Operation Type
|
Momentary
|
|
Head Shape
|
Flat Round head
|
|
Terminal Type
|
2 wires of 0.22 square,30mm ( Wire length can be customized.)
|
|
Body Color
|
Black
|
|
Body Material
|
Anodized Aluminum
|
|
Pulse Time
|
Less than or equal to 50ms
|
|
IP Degree
|
IP68 IEC529
|
|
Contact Resistance
|
≤ 50mΩ
|
|
Operation Temperature
|
-40℃～ 70℃
|
|
Operation Humidity
|
10%-90%
|
|
Operating Life
|
More than 200000 cycles
|
|
Panel Thickness
|
1-8mm
|
|
Torque
|
5-14Nm
|
|
Operating Pressure
|
About 3-8N
|
