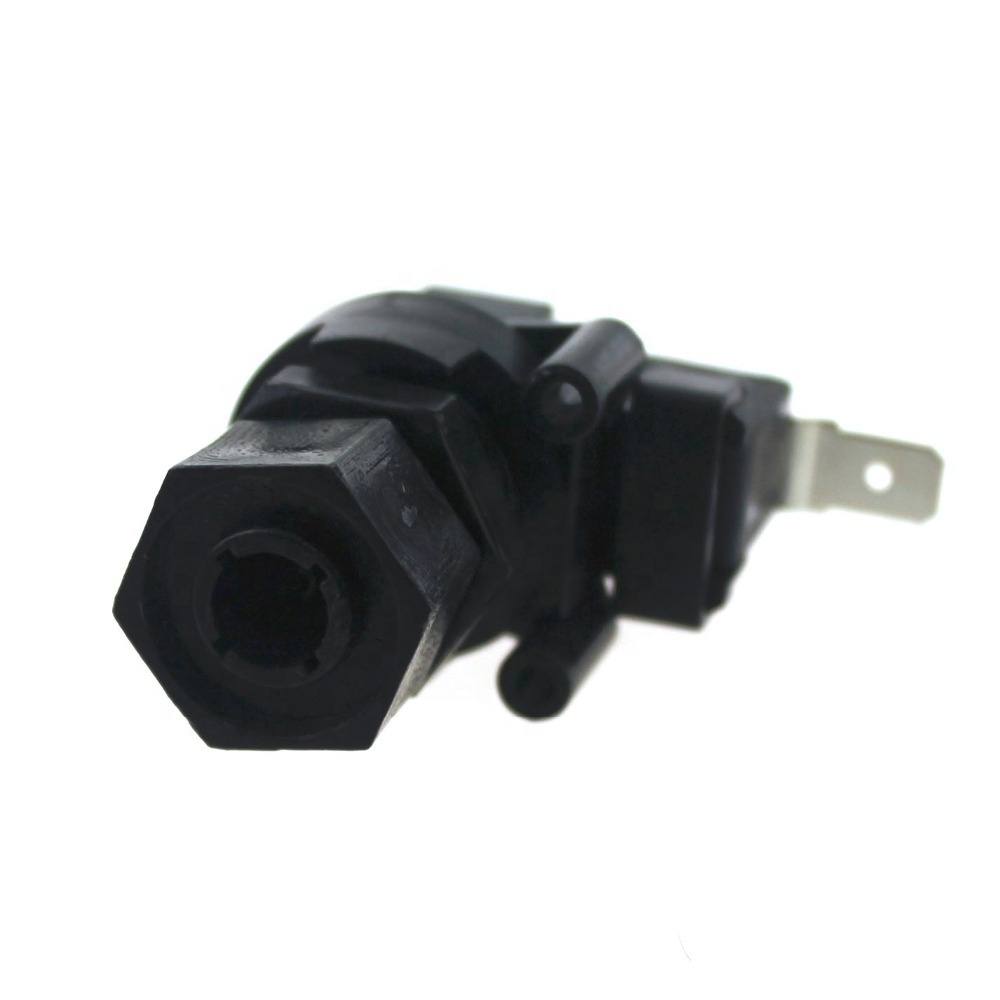

SC-40 SPST or SPDT low pressure momentary Alternate air pressure control switch

SC-40 SPST or SPDT low pressure momentary Alternate air pressure control switch

FOB Reference Price: Get Latest Price

≥5 Pieces

US $4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: SC-40 air pressure switch

Max. Current:: 3A, 21A

Max. Working Pressure:: 50psi

Operating Pressure Range:: 20 mbar to 1000 mbar

Action type:: Alternate or Momentary

Contact Arrangement:: SPST or SPDT

Terminals:: 6.35 or 4.88 mm male Q.C.

Media:: Air or other non hazardous gas, water

Lead time:: 1-3 days

Payment:: TT/Western union/Paypal

name:: electronic water pressure control switch

Quick Details

Max. Voltage:: 240V, 250VAC

Place of Origin:: Zhejiang, China

Brand Name:: YUMO air pressure switch

Model Number:: SC-40 air pressure switch

Max. Current:: 3A, 21A

Max. Working Pressure:: 50psi

Operating Pressure Range:: 20 mbar to 1000 mbar

Action type:: Alternate or Momentary

Contact Arrangement:: SPST or SPDT

Terminals:: 6.35 or 4.88 mm male Q.C.

Media:: Air or other non hazardous gas, water

Lead time:: 1-3 days

Payment:: TT/Western union/Paypal

name:: electronic water pressure control switch

SC-40 SPST or SPDT low pressure momentary Alternate air pressure control switch

Product Description

SC-40 can be used together with SC-41 air button (also called as Actuator) for remote control purpose. It is widely used in food waste disposer, pumps for swimming pools and spas, hot tubs, sanitary equipment, out door machines, medical equipment etc. As a remote control switch, it is small enough to fix in the control box of the engine. Used as a remote control, the air switch has two actions:

1) Momentary action: when the air button is pushed, the air switch is actuated. When air button is released, the air switch will also be released. This is the way the basic pressure switches are working.

2) Alternate action (also referred to as latching or bistable): the first pushing on air button actuates the air switch, and the air switch keep actuating when air button is released. A second push on the air button will release the air switch.

Model	SC-40
Media	Air or other non hazardous gas, water
Operating Pressure Range	20 mbar to 1000 mbar
Proof Pressure	50 PSI
Operating Temperature Range
Contact Arrangement	SPST or SPDT
Electric Rating	1/2HP 250V, for long distance remote control; 2HP 250V, for high rating application; Other rating can be available on request
Terminals	6.35 or 4.88 mm male Q.C.
Connection	4mm OD tube,1/4 NPT male thread, 1/8 NPT male thread
