Quick Details
-
Application:
-
Office Building
-
Design Style:
-
Asian
-
Type:
-
Scaffolding
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
EHONG STEEL
-
Model Number:
-
Scaffolding Frame
-
Product name:
-
Light duty 1700x1219mm Q235 steel scaffolding ladder step frame
-
Material:
-
Q195 / Q235 / Q345
-
Surface treatment:
-
Galvanized/ Color powder coating
-
Package:
-
Bundle or bulk as requested
-
Thickness:
-
1.0mm-2.5mm
-
Height:
-
914/1219/1524/1700/1930mm
-
Width:
-
914/1219/1524mm
-
Delivery Time:
-
15-20Days
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Office Building
-
Design Style:
-
Asian
-
Type:
-
Scaffolding
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
EHONG STEEL
-
Model Number:
-
Scaffolding Frame
-
Product name:
-
Light duty 1700x1219mm Q235 steel scaffolding ladder step frame
-
Material:
-
Q195 / Q235 / Q345
-
Surface treatment:
-
Galvanized/ Color powder coating
-
Package:
-
Bundle or bulk as requested
-
Thickness:
-
1.0mm-2.5mm
-
Height:
-
914/1219/1524/1700/1930mm
-
Width:
-
914/1219/1524mm
-
Delivery Time:
-
15-20Days
|
Name |
Light duty 1700x1219mm Q235 steel scaffolding ladder step frame |
|
Type |
E-frame , H-frame a frame scaffolding |
|
Material |
Q235, Q345 Steel |
|
Surface Treatment |
Painted , Pre-Galvanized, Hot Dipped Galvabized ,Powder Coated |
|
Main Component |
Frame ,Catwalk ,Joint Pin ,Cross Brace ,Base Jack ,U-head Jack And Castor |
|
Specification |
Main Pipe :42* 1.5 /1.8/ 2.0/ 2.2 mm ; Inner Pipe : 25*1.5 /1.8/2.0 mm etc |
|
Cross Brace |
21.3* 1.2/ 1.4 mm etc a s r equest l ength |
|
Joint Pin |
3 6 * 1.2/ 1.5 /2.0* 225/210 mm etc |
|
Cat Walk |
420 /450/480 mm*45mm*1. 0/1.1/1.2/1.5/1.8/2.0 mm |
|
Application |
Matching with frames, joint pins, base jack, u-head jack, catwalk, stair, etc,as working platform for construction , indoor&outdoor decoration, housing maintenance, etc |
|
OEM i s a vailable |
|

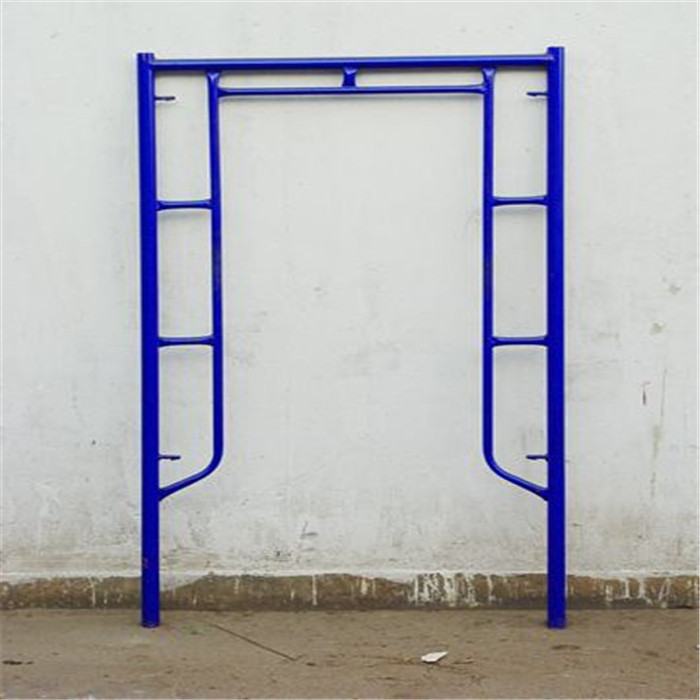

E Frame ( Door type frame)
H Frame ( Ladder type frame)
|
Scaffolding Frame |
||
|
Model NO. |
Specification (H*W) |
Weight |
|
E-Frame Scaffolding (Door-type frame) |
1930*1219 mm |
12.5/13.5 kg |
|
1700*1219 mm |
12.5/13 kg |
|
|
1700*914 mm |
10.8 kg |
|
|
1524*1219 mm |
11 kg |
|
|
H Frame Scaffolding (Ladder-type frame) |
1930*1219mm |
14.65/16.83kg |
|
1700*1219 mm |
14/14.5 kg |
|
|
1524*1524 mm |
13-14 kg |
|
|
1219*1219 mm |
10 kg |
|
|
914*1219 mm |
7.5 kg |
|
Cross Brace Description:
|
Item No. |
AXBXC |
Reference Weight |
|
JSCW-001 |
1219x1524x1952mm(21.3x1.5mm) |
2.9kg |
|
JSCW-002 |
1219x1219x1724mm(21.3x1.5mm) |
2.5kg |
|
JSCW-003 |
1219x1829x2198mm(21.3x1.5mm) |
3.2kg |
|
JSCW-004 |
610x1219x1363mm(21.3x1.5mm) |
2.0kg |
|
JSCW-005 |
610x1219x1928mm(21.3x1.5mm) |
2.8kg |
|
JSCW-006 |
914x1829x2045mm(21.3x1.5mm) |
3.0kg |
|
JSCW-007 |
610x1219x1524mm(21.3x1.5mm) |
2.3kg |
