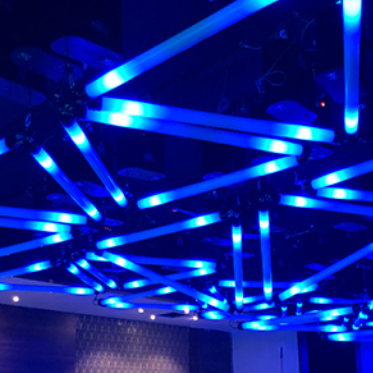

Ceiling Decoration Lighting DMX Winch System RGB 3D Kinetic LED Triangle

Ceiling Decoration Lighting DMX Winch System RGB 3D Kinetic LED Triangle

FOB Reference Price: Get Latest Price

≥1 Pieces

US $175

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Weight（kg）:: 8

Input Voltage(V):: AC100-240V/50-60Hz

Lamp Luminous Flux(lm):: 8500

CRI (Ra>):: 90

Working Temperature(℃):: -25 - 45

Working Lifetime(Hour):: 20000

Place of Origin:: Guangdong, China

Brand Name:: MOER

Emitting Color:: RGB

Effect:: Pixel control

Certification:: CE/FCC/RoHS

Power:: 150w

Channel:: 95/113/140/185CH

Display:: LCD Screen

Length of tube:: 0.5/1/1.2/1.8/2m

Material:: Aluminum + Iron

Length of lift cable:: 0m ~ 15m

Advantages:: Less Noise

Dimmer:: 0-100% Dimming

Quick Details

Type:: Matrix Light

Application:: Hotel

Warranty(Year):: 3-Year

Product Weight（kg）:: 8

Input Voltage(V):: AC100-240V/50-60Hz

Lamp Luminous Flux(lm):: 8500

CRI (Ra>):: 90

Working Temperature(℃):: -25 - 45

Working Lifetime(Hour):: 20000

Place of Origin:: Guangdong, China

Brand Name:: MOER

Emitting Color:: RGB

Effect:: Pixel control

Certification:: CE/FCC/RoHS

Power:: 150w

Channel:: 95/113/140/185CH

Display:: LCD Screen

Length of tube:: 0.5/1/1.2/1.8/2m

Material:: Aluminum + Iron

Length of lift cable:: 0m ~ 15m

Advantages:: Less Noise

Dimmer:: 0-100% Dimming

Product Description

DMX WINCH UNIT

SPECIFICATIONS:

Dimensions: 26.8 x 14 x 30.3cm
Weight: 7 kg
Load on cable: 0.5 – 3 kg
Lifting height: 1m-15m
Lifting speed: 0 – 0.5 m/s / 0 – 1.5 ft/s
Power supply: 100 – 240V AC, 50 – 60 Hz, 1.3A/240V 2.6A/115V
Power on cable Mono: 1/3/6/9/182CH
LED control: RGB pixel mapping
Control: DMX512 (bidirectional)
Connection: 3/5-pin XLR DMX

CONSTRUCTION

– suitable for temporary and permanent installations
– patented high precision cable rolling and positioning system
– specially designed cable with integrated power cords and suspension wires
– solid cable end piece with quick-lock power plug
– nonvolatile security chain link
– black lifting cable
– detachable 360 degree rotatable truss clamp
– winch shell available in black, white and custom colors

OPTIONAL

– custom motorization for heavier lifting – custom light objects can be attached – sensors, motors or other electronic devices can be attached – compact stackable transport stage cases available – mount: truss clamp ø 40 – 70 mm / ø 1.85 – 2.00 in

– ODM service: custom for logo/speical requirements

The new Winch LED / PIXEL.The unit provides full real-time control from any 3rd party lighting console or control software thanks to super fast processor and new firmware. The new Winch LED / PIXEL communicates their status and position back to the control unit 30 times per second. This allows for extra secure operation and additional advanced features like projection mapping of moving objects or synchronized movement of one object connected to multiple winches. The reinforced powered cable is fully retractable and features a new fast lock power connector at the end. All Winch LED / PIXEL are fully CE compliant.

RGB/RGBW Pixel Line lights

Our RGB Pixel Line lights were specifically developed for the Kinetic Lights. The extra soft light diffuser have perfect light
refraction characteristics. The RGB LED pixel mappable light strip is integrated into an aluminium profile. The brightness of our RGB LED Pixel Line lights is also suitable for shaded daylight applications. Multiple Pixel Line lights attached to our Winch LED/ Pixel systems can be arranged in a matrix called THE PIXEL WAVE.

PIXEL TUBE

– suitable for hanging
– pixel mappable light profile
– 60 individual pixels & two leds for one pixel point/ 48/60 individual pixels & one leds for one pixel point
– RGB/RGBW LED illumination
– extra soft light diffuser
– 50/100/120/180/200cm length(can be customized)– diameter:35/50mm
– 1,5 kg per unit

- Can use the tubes light to create triangle/square/and others shape.
- Special requirements can be customied

Detailed Images

Winch units detail drawing

Add a spare part to hold/fix the safety cable, invoid it to get loose or lost. It's good for the rental business. Because the safety cable always lost or loose when using it in rental business.

Other speical requirements can be accepted if needed.

Combi cable is the newest one, easy and convenient when using. This is the optional one that we can produce if client need it.

Common power/dmx cable or combi cable both ok for us.

Our winch units can hold all the lights fixtures. No matter It's pixel control one or not, both are ok. Flexible & multi-fuctions.

Custom the lifting height from 1meter to 15meter. ODM service: logo custom/special requirements can be accepted.

Can be pixel controled, create assume effects.

Come with lots individual pixels.

360° brightness

OED service is accept/ customs the lengh of the tube line is accept for us. Good quality with two years warranty.
