Quick Details
-
Model Number:
-
TW10+TW18
-
Dimension:
-
650*500*540mm
-
Output Power:
-
800w
-
Product Name:
-
speaker 18 inch subwoofer
-
Keyword:
-
bass speakers 2000w 18 inch
-
Application:
-
Commercial, Home,Party, Stage, KTV, Professional Performance
-
Rate Power(RMS):
-
800W
-
Peak Power:
-
2400W
-
Sensitivity:
-
LF 102dB
-
Frequency Response:
-
40Hz~200Hz
-
Wiring Method:
-
2 Speakon-socke (4-pint)
-
Impedance:
-
8 0hm
-
Certificate:
-
CE/FCC/ROHS/ISO9001/ISO14001
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GADMEI
-
Model Number:
-
TW10+TW18
-
Dimension:
-
650*500*540mm
-
Output Power:
-
800w
-
Product Name:
-
speaker 18 inch subwoofer
-
Keyword:
-
bass speakers 2000w 18 inch
-
Application:
-
Commercial, Home,Party, Stage, KTV, Professional Performance
-
Rate Power(RMS):
-
800W
-
Peak Power:
-
2400W
-
Sensitivity:
-
LF 102dB
-
Frequency Response:
-
40Hz~200Hz
-
Wiring Method:
-
2 Speakon-socke (4-pint)
-
Impedance:
-
8 0hm
-
Certificate:
-
CE/FCC/ROHS/ISO9001/ISO14001
|

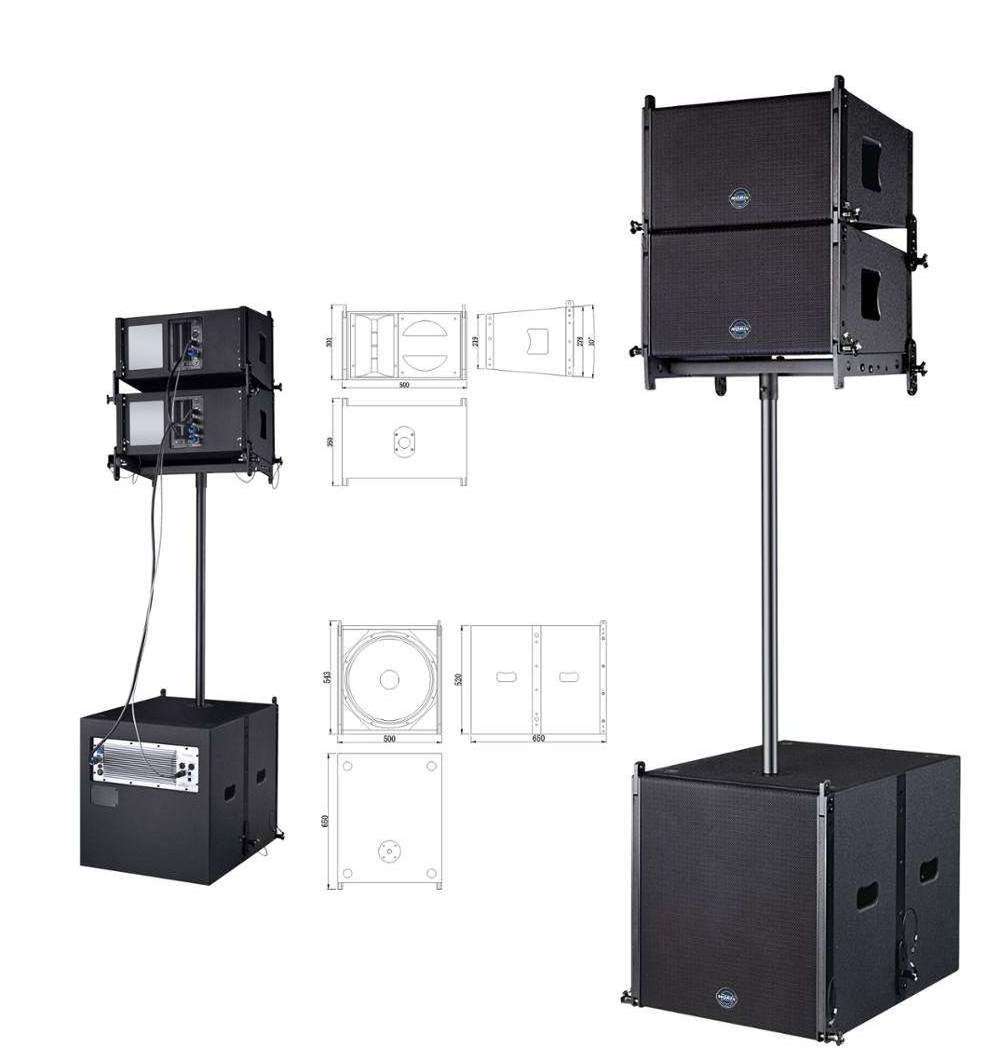

Product Name
|
TW-10 (Has powered and passive model)
|
TW-18(Subwoofer,bulit in DSP)
|
|
Description
|
Passive 1*10inch full range line array
|
Passive 1*18 inch subwoofer
|
|
Components
|
0"MF,2 x 1.75"HF(Neodymium)
|
18"Subwoofer
|
|
Rated Power
|
MF:350W AES HF:150W AES
|
800W AES
|
|
Program Power
|
MF: 700W HF:300W
|
1600W
|
|
Type
|
Passive
|
Passive
|
|
MF Sensitivity(1W/m)
|
104dB
|
106dB
|
|
Rated Maximun SPL
|
128dB peak,@1m
|
138dB Peak, @1m
|
|
Frequency Response
|
60Hz ~ 20KHz (±3dB)
|
40HZ~200Hz (±3dB)
|
|
Input Impedance
|
20KΩ
|
20KΩ
|
|
Input Sensitivity
|
0.775v
|
0.775v
|
|
Distortion
|
<0.05%
|
<0.05%
|
|
Damping Factor
|
≥400
|
≥400
|
|
Power Connector
|
Power Con
|
Power Con
|
|
Weigh
|
20KG
|
44KG
|
|
Item Dimensions (W X D X H)
|
500 X 350 X306mm
|
500 X 650 X543mm
|
|
Features description
|
● Band-through design, high-strength box structure.
● A 10-inch high-efficiency
midrange unit.
● 2 1.75-inch pure super tweeters
● Computer optimized analog design to obtain good frequency response and phase
characteristics.
● It can be used with the subwoofer of this brand.
● Applicable to gymnasiums, theaters, various indoor and outdoor performances and slow-moving large-scale entertainment venues
|
● Professional line array subwoofer, used with TW-10 for hanging or flooring
● The low frequency is powerful and flexible. ●Promoted by a single power amplifier.
● Band-through design, high-strength box structure.
● One 18-inch high-efficiency subwoofer.
● Computer optimized analog design to obtain good frequency response and phase characteristics.
● It can be used with full-range
speakers of this brand.
● Applicable to slow-motion large-scale entertainment venues and places that need to enhance high-energy
low-frequency effects |
Contact me for more product information and discounts!
