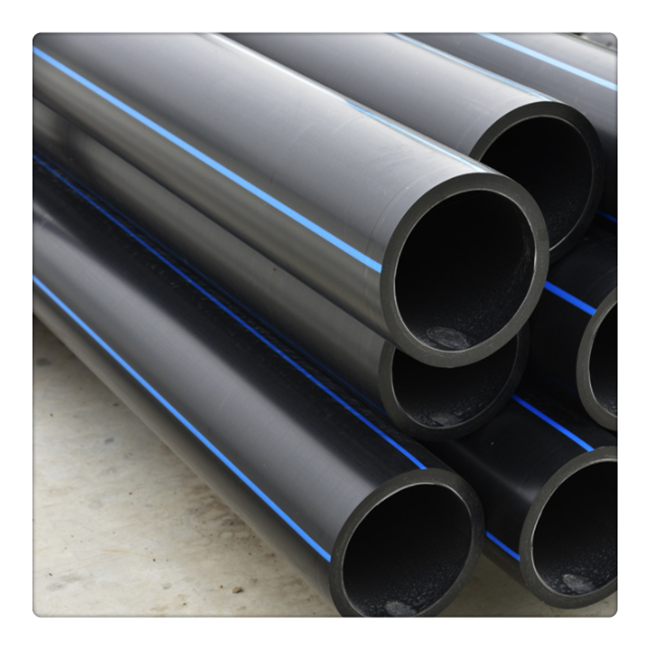

high quality Tianjin DRD PN8 1.5 inch poly PEHD pipe hdpe pipe pe pipe for irrigation
high quality Tianjin DRD PN8 1.5 inch poly PEHD pipe hdpe pipe pe pipe for irrigation
high quality Tianjin DRD PN8 1.5 inch poly PEHD pipe hdpe pipe pe pipe for irrigation
high quality Tianjin DRD PN8 1.5 inch poly PEHD pipe hdpe pipe pe pipe for irrigation
high quality Tianjin DRD PN8 1.5 inch poly PEHD pipe hdpe pipe pe pipe for irrigation
high quality Tianjin DRD PN8 1.5 inch poly PEHD pipe hdpe pipe pe pipe for irrigation
high quality Tianjin DRD PN8 1.5 inch poly PEHD pipe hdpe pipe pe pipe for irrigation
high quality Tianjin DRD PN8 1.5 inch poly PEHD pipe hdpe pipe pe pipe for irrigation

high quality Tianjin DRD PN8 1.5 inch poly PEHD pipe hdpe pipe pe pipe for irrigation

FOB Reference Price: Get Latest Price
≥100 Meters
US $0.02
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
HDPE 16-1800
Specification:
DN16-1800
Length:
5.9M 11.9M As required
Thickness:
2.0-117.6mm
Standard:
ISO4427 AS/NZS4130/DIN8074/EN12201/GOST18599
Product name:
wholesale of 12 inch 18 inch HDPE water pipe for irrigation
Size:
Sdr7.4/sdr 9/sdr/11/sdr13.6/sdr17
Temperature:
-50° ~ 50°
Working pressure:
PN4/PN5/PN6/PN8/PN10/PN12.5/PN16/PN20/PN25/PN30
Connection:
Butt Fusion/Socket Fusion
Application field:
Industry Agriculture/Water supply and Drainage
Certificate:
ISO4427/ISO9001.ISO14001/ISO18001
size2:
2.5Mpa/2.0mpa/1.6mpa/1.25mpa/1.0mpa/0.8mpa
Packing:
In rolls, 5.8m length, 11.9m/length
color:
Black/blue/yellow/red or according to client's requirement

Quick Details

Processing Service:
Moulding, Cutting
Place of Origin:
Hebei, China
Brand Name:
DRD/OEM
Model Number:
HDPE 16-1800
Specification:
DN16-1800
Length:
5.9M 11.9M As required
Thickness:
2.0-117.6mm
Standard:
ISO4427 AS/NZS4130/DIN8074/EN12201/GOST18599
Product name:
wholesale of 12 inch 18 inch HDPE water pipe for irrigation
Size:
Sdr7.4/sdr 9/sdr/11/sdr13.6/sdr17
Temperature:
-50° ~ 50°
Working pressure:
PN4/PN5/PN6/PN8/PN10/PN12.5/PN16/PN20/PN25/PN30
Connection:
Butt Fusion/Socket Fusion
Application field:
Industry Agriculture/Water supply and Drainage
Certificate:
ISO4427/ISO9001.ISO14001/ISO18001
size2:
2.5Mpa/2.0mpa/1.6mpa/1.25mpa/1.0mpa/0.8mpa
Packing:
In rolls, 5.8m length, 11.9m/length
color:
Black/blue/yellow/red or according to client's requirement
Product Description

You May Also like


high quality Tianjin DRD PN8 1.5 inch poly pipe hdpe pipe pe pipe for irrigation
HDPE Pipe is leak-free, tough, flexible, fully-restrained, and cost competitive. Plus, it’s great for trenchless applications. Any one of these attributes makes it a winner, but combined, these features make HDPE pipe THE responsible infrastructure choice of the future.
HDPE pipe is made of high density polyethylene resin.The product's physical properties make it applicable to open-trench, horizontal directional drilling,pipe-bursting and slip-lining installations.
It can be manufactured with the color striping to identify application, such as blue stripe for potable water, yellow stripe for gas applications and red stripe for mining or cable protection applications.
Main application as follows：
1. Urban potable water pipeline network system.
2. Replaceable cement pipe, iron pipe and steel pipes.
3. Fire fighting pipeline.
4. Landscaping water supply network.
5. Sewage discharge pipes.
6. Ore and mud transfers.
7. Agricultural irrigation pipe.
Specification

high quality Tianjin DRD PN8 1.5 inch poly pipe hdpe pipe pe pipe for irrigation
PE100
0.4MPa
0.5MPa
0.6MPa
0.8MPa
1.0MPa
1.25MPa
1.6MPa
2.0MPa
2.5MPa
Outside Diameter
PN4
PN5
PN6
PN8
PN10
PN12.5
PN16
PN20
PN25
SDR41
SDR33
SDR26
SDR21
SDR17
SDR13.6
SDR11
SDR9
SDR7.4
Wall Thickness (en)
20
-
-
-
-
-
-
2.0
2.3
3.0
25
-
-
-
-
-
2.0
2.3
3.0
3.5
32
-
-
-
-
2.0
2.4
3.0
3.6
4.4
40
-
-
-
2.0
2.4
3.0
3.7
4.5
5.5
50
-
-
2.0
2.4
3.0
3.7
4.6
5.6
6.9
63
-
-
2.5
3.0
3.8
4.7
5.8
7.1
8.6
75
-
-
2.9
3.6
4.5
5.6
6.8
8.4
10.3
90
-
-
3.5
4.3
5.4
6.7
8.2
10.1
12.3
110
-
-
4.2
5.3
6.6
8.1
10.0
12.3
15.1
125
-
-
4.8
6.0
7.4
9.2
11.4
14.0
17.1
140
-
-
5.4
6.7
8.3
10.3
12.7
15.7
19.2
160
-
-
6.2
7.7
9.5
11.8
14.6
17.9
21.9
180
-
-
6.9
8.6
10.7
13.3
16.4
20.1
24.6
200
-
-
7.7
9.6
11.9
14.7
18.2
22.4
27.4
225
-
-
8.6
10.8
13.4
16.6
20.5
25.2
30.8
250
-
-
9.6
11.9
14.8
18.4
22.7
27.9
34.2
280
-
-
10.7
13.4
16.6
20.6
25.4
31.3
38.3
315
7.7
9.7
12.1
15.0
18.7
23.2
28.6
35.2
43.1
355
8.7
10.9
13.6
16.9
21.1
26.1
32.2
39.7
48.5
400
9.8
12.3
15.3
19.1
23.7
29.4
36.3
44.7
54.7
450
11.0
13.8
17.2
21.5
26.7
33.1
40.9
50.3
61.5
500
12.3
15.3
19.1
23.9
29.7
36.8
45.4
55.8
-
560
13.7
17.2
21.4
26.7
33.2
41.2
50.8
62.5
-
630
15.4
19.3
24.1
30.0
37.4
46.3
57.2
70.3
-
710
17.4
21.8
27.2
33.9
42.1
52.2
64.5
79.3
-
800
19.6
24.5
30.6
38.1
47.4
58.8
72.6
89.3
-
900
22.0
27.6
34.4
42.9
53.3
66.2
81.7
-
-
1000
24.5
30.6
38.2
47.7
59.3
72.5
90.2
-
-
1200
29.4
36.7
45.9
57.2
67.9
88.2
-
-
-
1400
34.3
42.9
53.5
66.7
82.4
102.9
-
-
-
1600
39.2
49.0
61.2
76.2
94.1
117.6
-
-
-
Features

FEATUTES

1. Nontoxic
2. Corrosion resistance
3. No Leakage
4. Higher flow capacity than steel pipes

FEATURES

5. Convenient for construction and installation
6. Lower installation costs than cement and steel pipes
7. Longevity of working life more than 50 years
8. HDPE pipe can be recycled and environment-friendly
Advantages

high quality Tianjin DRD PN8 1.5 inch poly pipe hdpe pipe pe pipe for irrigation
Advantages
1). Adopt multi-machine co-extrusion, the silicon core layer is synchronously embedded in the pipe. It will be permanent
lubricated and not be stripped forever
2). The friction coefficient of the inner wall is very small. Optical cable (electric
cable) can be repeatedly extracted and tension in the pipe.
3). Waterproof, damp-proof, can avoid the damage by rodent animals.
4). Aging-resistant, anti corrosion of chemicals, long service with 50 years 5). Good weather resistant ability, and its suitable
temperature from -40°C to 100°C. 6). Convenient in construction, save time and the project cost
Connection Methods
high quality Tianjin DRD PN8 1.5 inch poly pipe hdpe pipe pe pipe for irrigation

Butt Fusion Joint

Socket Fusion Joint
This technique consists of simultaneously heating both the external surface of the pipe and the internal surface of the socket
fitting until the material reaches fusion temperature; inspecting the melt pattern; inserting the pipe end into the socket; and
holding it in place until the joint cools.Mechanical equipment is available and should be used for sizes larger than 2 inch
diameter to attain the increased force required and to assist in alignment.

Follow these general steps when performing socket fusion:
1.Select the equipment
2.Square and prepare the pipe ends
3.Heat the parts
4.Join the parts
5.Allow to cool

Socket Fusion Joint

Socket Fusion Joint
This technique consists of simultaneously heating both the external surface of the pipe and the internal surface of the socket
fitting until the material reaches fusion temperature; inspecting the melt pattern; inserting the pipe end into the socket; and
holding it in place until the joint cools.Mechanical equipment is available and should be used for sizes larger than 2 inch
diameter to attain the increased force required and to assist in alignment.

Follow these general steps when performing socket fusion:
1.Select the equipment
2.Square and prepare the pipe ends
3.Heat the parts
4.Join the parts
5.Allow to cool .

Electro Fusion Joint

Electro Fusion Joint
This technique of heat fusion joining is somewhat different from the conventional fusion joining.The main difference between
conventional heat fusion and electro fusion is the method by which the heat is applied. In conventional heat fusion joining, a
heating tool is used to heat the pipe and fitting surfaces.The electro fusion joint is heated internally,either by a wire coil at
the interface of the joint or, as in one design, by a conductive polymer.Heat is created as an electric current is applied to the
conductive material in the fitting.

General steps to be followed when performing electro fusion joining are:
1.Prepare the pipes
2.Clamp the fittings and pipe(s)
3.Apply the electric current
4.Cold and remove the clamps

HDPE Fittings for Connection:

high quality Tianjin DRD PN8 1.5 inch poly pipe hdpe pipe pe pipe for irrigation
Application Show

high quality Tianjin DRD PN8 1.5 inch poly pipe hdpe pipe pe pipe for irrigation

CONTACT

Mobile: +0086-18222118739
Email: amy(at)drdcn.com
CERTIFICATE
FAQ

high quality Tianjin DRD PN8 1.5 inch poly pipe hdpe pipe pe pipe for irrigation

sdr7.4 1.5 inch poly pipe hdpe pipe pe pipe for irrigation
Q1. Are you trading company or manufacturer ?
A: We are professional manufacturer and welcome to your visit at any time.

Q2. How long is your delivery time?
A: Generally it takes 5-10 days if the goods are in stock,which is depends on your quantity and can be negotiable.

Q3. Do you provide samples ?
A: Yes,of course sample is avaliable and for small quantity we can supply for free.

Q4.What is your terms of payment ?
A: L/C,Western Union,T/T30% in advance ,balance before shippment and so on.

Q5. For pipe fittings, what do you do mainly?
A: For fittings, coupling (socket), elbows, tee, reducer, union, valve, cap some electrofusion fittings and compression fittings.

Q6.Can I have my own Logo on the product?
A: Yes, sure,you just send us your drawing,we'll make logo for you and before production we will confirm with you in advance.

Q7.Can I request to change the method of packaging and transportation?
A: Yes, the packaging and transportation can be made as per your requirements.
