Quick Details
-
Weight:
-
14500 KG
-
After-sales Service Provided:
-
Video technical support
-
Product Name:
-
Portable Water Well Drilling Rig For Sale
-
Bore diameter:
-
140-254mm
-
Drilling depth:
-
180m
-
Stroke:
-
3.4m
-
Travelling speed:
-
2.5km/h
-
Gradeability:
-
30%
-
Rated pressure:
-
1.7-2.5mpa
-
Air consumption:
-
17-31m3/min
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VOTE
-
Dimension(L*W*H):
-
3800*1500*2200mm
-
Weight:
-
14500 KG
-
After-sales Service Provided:
-
Video technical support
-
Product Name:
-
Portable Water Well Drilling Rig For Sale
-
Bore diameter:
-
140-254mm
-
Drilling depth:
-
180m
-
Stroke:
-
3.4m
-
Travelling speed:
-
2.5km/h
-
Gradeability:
-
30%
-
Rated pressure:
-
1.7-2.5mpa
-
Air consumption:
-
17-31m3/min

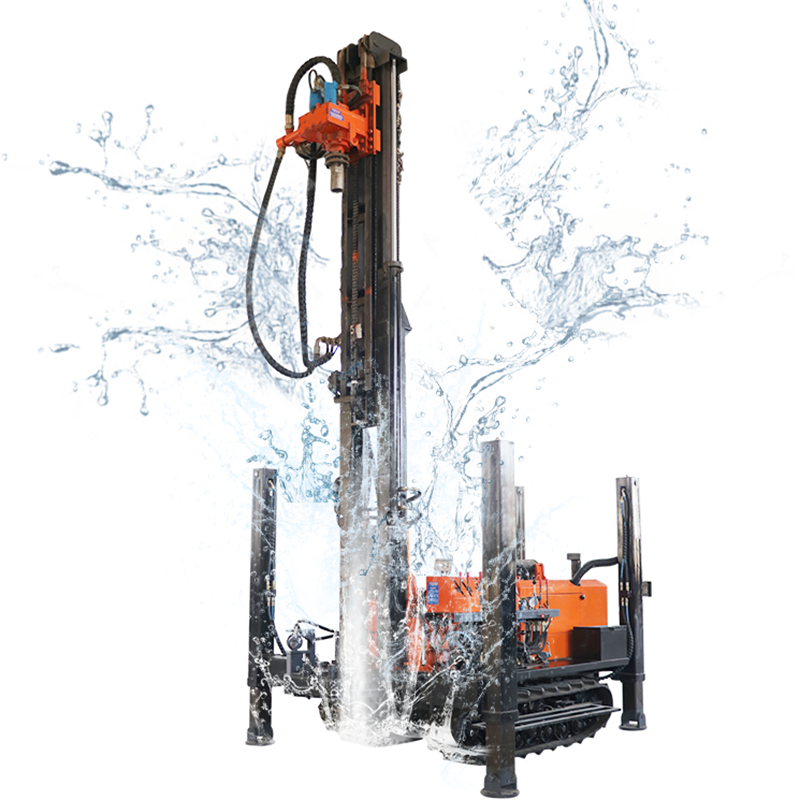

VTZJ-180 Water Well Drilling Rig Machine Rubber Crawler Drilling Depth 180M
The VTZJ-180 pneumatic DTH drilling rig is capable of drilling upto 160mm dia meter holes for pore-forming purposes to a depth of 18 0 meters.
VTZJ180 new generation multi-purpose DTH deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.
Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.
The Main Parameters
|
Model |
VTZJ180 |
|
Weight |
4.5T |
|
Bore diameter |
140-254mm |
|
Drilling depth |
180m |
|
Stroke |
3.4m |
|
Travelling speed |
2.5km/h |
|
Gradeability |
30% |
|
Power |
55KW |
|
Rated pressure |
1.7-2.5mpa |
|
Air consumption |
17-31m³/min |
|
Drill rod diameter |
Φ76 Φ89 |
|
Drill rod length |
1.5m 2.0m 3.0m |
|
Elevating capacity |
15T/15 K N |
|
Swing speed |
45-65rpm |
|
Swing torque |
3200-4600N.M |
|
Dimensions |
3800*1500*2200mm |
