Quick Details
-
Cutting Area:
-
600*400mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
RDCAM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LM
-
Weight (KG):
-
260 KG
-
Core Components:
-
laser tube
-
Products handled:
-
non-metals engraving and cutting with CO2 laser
-
Laser power:
-
60w/80w/100w/130w/150w
-
Function:
-
Cutting and Engraving
-
Laser tube:
-
Co2 Sealed Glass Laser Tube
-
Color:
-
Blue-white
-
Working area:
-
600*400mm
-
working table:
-
honeycomb worktable / blade worktable
-
Work mode:
-
stepper motor
-
Control system:
-
RuiDa controller
-
Cooling system:
-
water cooling
-
Product name:
-
wood photo frame laser cutting machine
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
0-600mm/sec
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
600*400mm
-
Cutting Thickness:
-
0-30mm
-
Control Software:
-
RDCAM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LM
-
Weight (KG):
-
260 KG
-
Core Components:
-
laser tube
-
Products handled:
-
non-metals engraving and cutting with CO2 laser
-
Laser power:
-
60w/80w/100w/130w/150w
-
Function:
-
Cutting and Engraving
-
Laser tube:
-
Co2 Sealed Glass Laser Tube
-
Color:
-
Blue-white
-
Working area:
-
600*400mm
-
working table:
-
honeycomb worktable / blade worktable
-
Work mode:
-
stepper motor
-
Control system:
-
RuiDa controller
-
Cooling system:
-
water cooling
-
Product name:
-
wood photo frame laser cutting machine

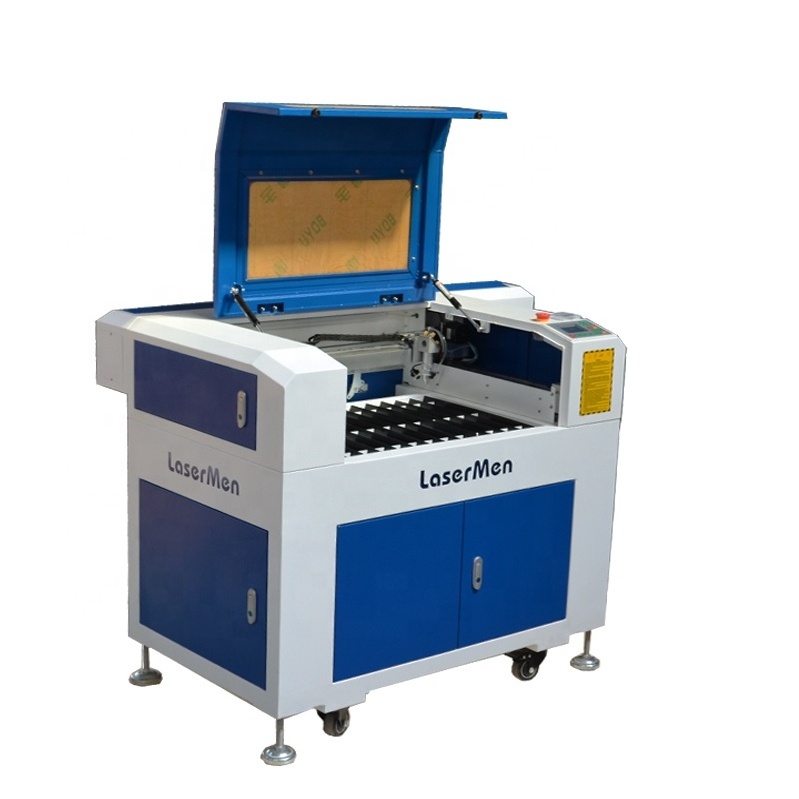

small acrylic/wood photo frame laser cutting machine for sale 6040/jigsaw puzzle making machine/glass etching machine
Product Description
|
▶ Model
|
LM-6040 laser machine
|
|
▶ Laser type
|
CO2 laser tube, water-cooled
|
|
▶ Working area
|
600mm x 400mm
|
|
▶ Cutting speed
|
0-5000cm/min
|
|
▶ Repeating location
|
≤±0.01
|
|
▶ Transmission type
|
belt transmission
|
|
▶ Driving system
|
stepper motors
|
|
▶ Machine table
|
Blade table
|
|
▶ Graphic format supported
|
BMP, HPGL(PLT), JPEG, DXF, AI, DST
|
|
▶ Software supported
|
CorelDraw, AutoCAD, Photoshop, Tajima
|
|
▶ Control system
|
Ruida Brand USB Off-line control system
|
|
▶ Working voltage
|
110v/220V, 50Hz/60Hz
|
1.Adopting international advanced DSP control technology, it is the pioneer of fast and continuous curve cutting function and shortest processing path optimization function, which greatly increases the working efficiency.
2 YAKO 2/3-phrase motor ,ONK belt and PMI rail, to assure the stability and precision.
3. Reci or Yongli, famous brand CO2 laser tube manufactures in the world, high and stable laser quality.
4 Ruida controlling card, pioneer of fast and continuous curve cutting function and shortest processing path optimization function which greatly increase the working efficiency.
2 YAKO 2/3-phrase motor ,ONK belt and PMI rail, to assure the stability and precision.
3. Reci or Yongli, famous brand CO2 laser tube manufactures in the world, high and stable laser quality.
4 Ruida controlling card, pioneer of fast and continuous curve cutting function and shortest processing path optimization function which greatly increase the working efficiency.
Applicable Materials
Non-metal materials such as acrylic, wood, bamboo, double-color sheets, paper, leather, shells, or horn, resin, ABS, lamp shade, etc.
Applicable Industries
Models (Construction model, wooden toys, etc.), advertising, decoration, arts and crafts, electronics, electric appliances, etc.
Detailed Images
CO2 laser tube.
CO2 laser tube power available:60w, 80w, 100w, 130w,
For engraving, 40w and 60w 80W are good choices. 100w and above are mainly for cutting
Water chiller.
S&A,best in china,it is used to cool the laser tube
Constant water temperature ensures laser tube a longer service time and high stability.
High accuracy stepper motor and YAKO driver
Air pump.
(1). Push fumes away from the laser's focal lens to protects the lens from contaminants which could destroy the lens.
(2). Push air into the material's kerf as created by the laser beam, will remove debris/fumes and allow the laser light to penetrate deeper through the material.
Belt transmission
Imported high quality belt and rail,more stable and wearable.
Recommend:
ONK belt from Japan and PMI rail from Taiwan.
Blade worktable
It is suitable for hard materials, such as acrylic, wood and so on.
CO2 laser head
High quality, more stable.Stable light speed, good engraving and cutting effect,Blow up auxiliary functions
Reflector and Focus lens
Brand: II-VI
Origin: US
1 lens and 3 reflectors,Optical path design, small optical path deviation, high stability
Tool box
All tools and instructions for the machine, software installation CD, and protective glasses
exhaust fan
it can removes dust and smoke to protece the optical parts and the users
>>Options>>
Red dot
The laser is invisible. Red dot shows the position of the laser on the material. It's more convenient for location.
Honeycomb
Honeycomb table is for processing cloth, leather and other soft materials.
Up/down Z-axis
You can adjust the table height by operating the Z-axis to process thick materials. Z-axis is also a must when you need to use auto focusing and rotary.
different samples
Related products
Our Company
Packing & Delivery
Our Service
2-YEAR WARRANTY, LIFETIME MAINTENANCE 1.Two-year warranty for the machine, except for consumables. 2.Laser tube warranty: - CO2 40W, 50W, 60W tubes: 3 months; - CO2 80W tube: 6 months; - CO2 100W, 130W, 150W, 180W tubes: 10 months; - CO2 220W, 300W tubes: 12 months. 3.Optical lens and mirrors are not within warranty scope.
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 24/7 on-line receiving your question or requesting.
* Providing solution within 12 hours.
FAQ
1.Q:Why should you choose us?
A:If you choose us, you will get best quality,best service,best price,best warranty.
2.Q:I'm not familiar with the machine?
A:You just need to tell us materials, working size and thickness.I will recommend you the right machine.
3.How to operate the machine ?
A:We will deliver English manual and video with the machine to you.If you still need our help,please contact us.
4.Q:How can I get the sample to check you quality ?
A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided.
5.Q:Do the machine can be customized according my requirements?
A:Sure,we have a strong technical team and have rich experience. Our goal is to make you satisfied.
6.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW are available.
