Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China
-
fail secure electric strike lock:
-
Low Temperature and Timer
-
Voltage:
-
DC12V
Fail Safe/Fail Secure glass door electric strike lock (Framless glass door)

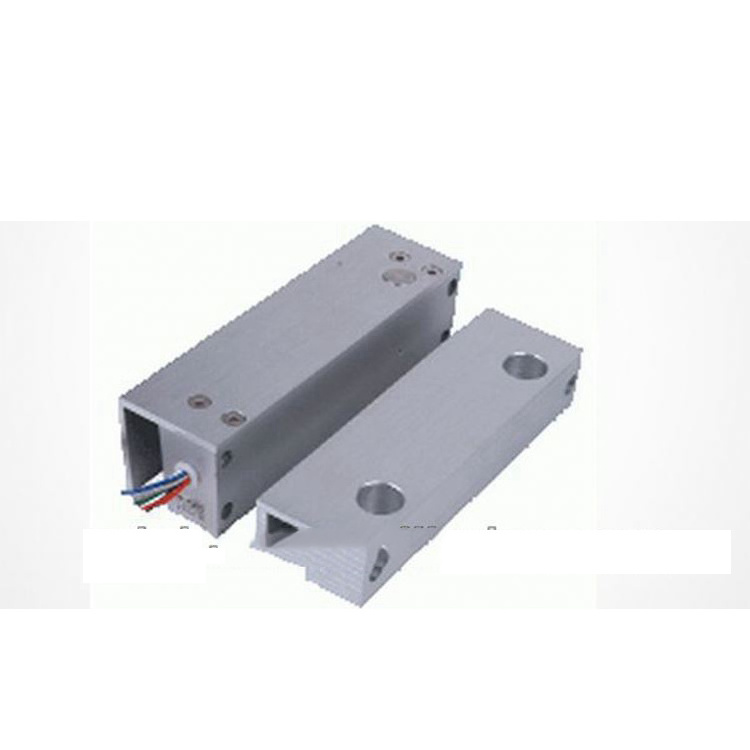

Electric Strike for Frameless Glass Door -------- DH-5818B
Low Temperature, Safe & Durable
Long Life with 500000 Operations
MOV Provides Reverse Current Protection .
Auto relock if no action within 5 sec
Quality guarantee : 12 months
CE approved
-
Voltage: DC12V
-
Start Current: 900mA
-
Standby Current: 120mA
-
Fail Safe:power to lock
- Bolt: 17mmDIA,stainless steel 13mm throw
-
Solid Bolt: polishing housing, 1000Kg Holding Force
-
Suitable For: 12mm Electric Bolt For Fully Frameless
-
Surface Temp: Low Temperature
-
Induction Distance:8mm
-
Door lock delay time: 0/ 3/ 6 seconds available to set
-
Signal Output: lock status indicator and door status Output.NC/NO/COM
-
Operating temp: -10~+25°C(14-131F)
-
Operating Humidity: 0~90%(non-condensing)
-
Special Designed: Tested to 500000 cycles
-
Face place material: High Aluminum,Carrulous Line Finished
-
Weight: 1.2kg
