Quick Details
-
Weight:
-
4500
-
Power (kW):
-
5.5
-
Application:
-
Tire Rereading Line
-
Product name:
-
Curing Chamber
-
Color:
-
Blue/Green/Customizable
-
Capacity:
-
8/12/16/24tire
-
Heating Mode:
-
Electricity/Steam/Oil
-
After-sales Service:
-
Video Technical Support
-
Certificate:
-
CE/ISO
-
Marketing Type:
-
New Product 2022
Quick Details
-
Place of Origin:
-
Qingdao,China
-
Brand Name:
-
XinRuiChen
-
Voltage:
-
220V/380V/Custom
-
Weight:
-
4500
-
Power (kW):
-
5.5
-
Application:
-
Tire Rereading Line
-
Product name:
-
Curing Chamber
-
Color:
-
Blue/Green/Customizable
-
Capacity:
-
8/12/16/24tire
-
Heating Mode:
-
Electricity/Steam/Oil
-
After-sales Service:
-
Video Technical Support
-
Certificate:
-
CE/ISO
-
Marketing Type:
-
New Product 2022
Truck Tyre Retreading Machines
retreading process as follow

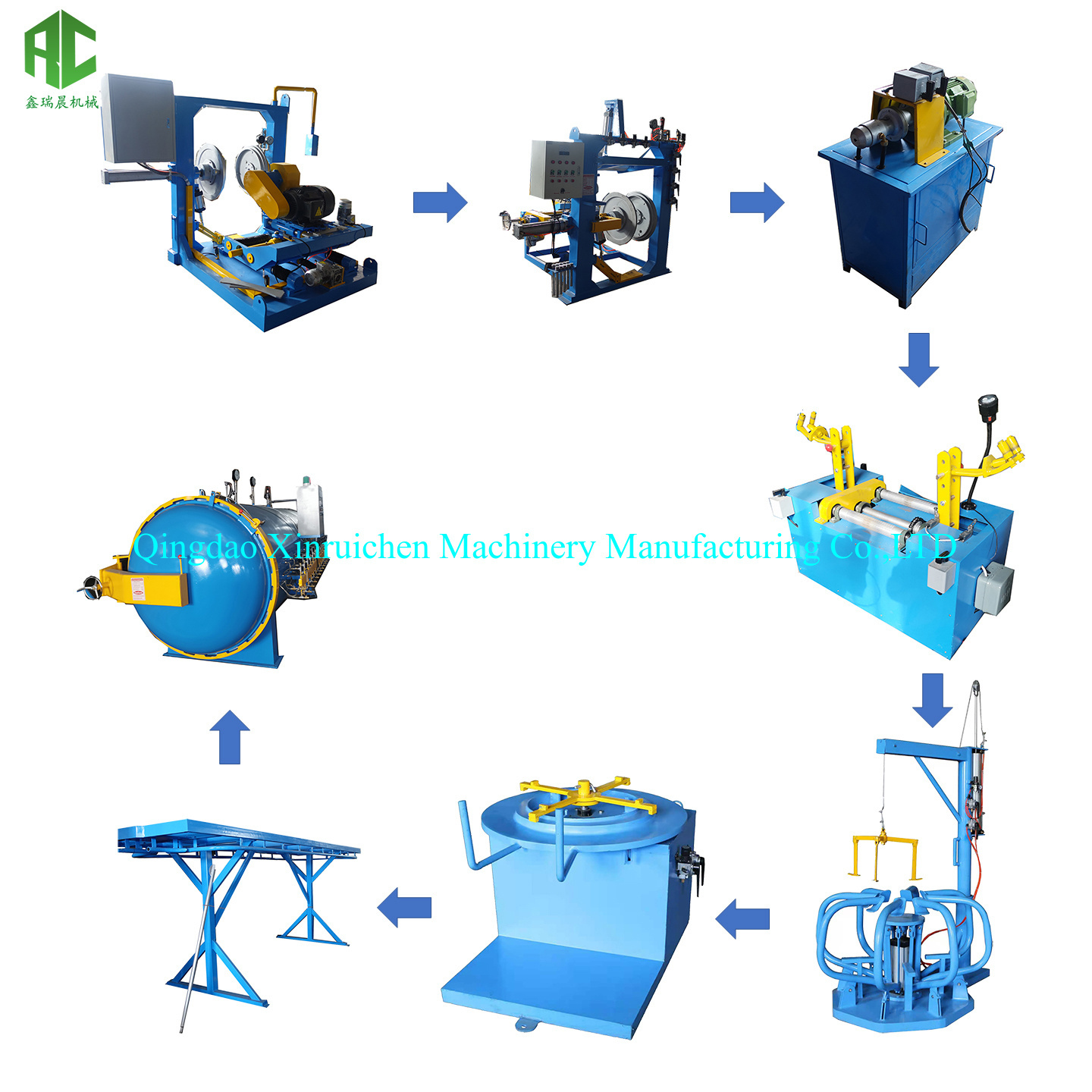

tyre clean firstly dry tyre → inspecting tyre → buffing tyre → buffing outer wound of tyre → buffing inner wound of tyre → secondly inspecting tyre → repair inner wound → brushing adhesive on roof of tyre → secondly drying tyre → repair outer wound → affix middle rubber piece → tread building →assemble envelop → assemble inner tyre → assemble curing rim → inspecting inner tyre and curing rim → curing→ disassemble curing rim→ disassemble inner tyre → disassemble envelop → inspect end product → embellish tyre→ store tyre.
|
Tyre number 12.00 R20 |
12 |
14 |
16 |
18 |
22 |
25 |
|
Theoretical steam consumptionkcal/h |
43000 |
52000 |
60000 |
65000 |
70000 |
90000 |
|
Electric hot-tube power--electric kw |
50 |
60 |
70 |
75 |
80 |
100 |
|
Electric hot-tube power--steam kw |
8 |
8 |
9 |
9 |
12.5 |
12.5 |
|
Fan motor power kw |
4 |
4 |
5 |
5 |
11 |
11 |
|
Width--uncovered mm |
5900 |
6600 |
7400 |
7800 |
8900 |
9900 |
|
Width--covered mm |
5100 |
5800 |
6600 |
7100 |
8100 |
9100 |
|
Practicable work width mm |
3600 |
4200 |
5000 |
5500 |
6800 |
7500 |
|
H eight mm |
2200 |
|||||
|
W eight t |
4.6 |
4.9 |
5.3 |
5.52 |
5.9 |
6.4 |
|
Designed pressure MPa |
0.9 |
|||||
|
Maximum pressure MPa |
0.8 |
|||||
|
Experimental pressure MPa |
1.1 |
|||||
|
Designed temperature(c) |
180 |
|||||
|
Compressed air source MPa |
0.8 |
|||||
Q: How to send your enquiry? Kindly tell me the answer...
-1) How many tires do you retread each time?
-2) What's your main tire size?
-3) Do you use or sell? What's your probable budget?
-4) Leave me your WhasApp,Skype or WeChat.
