Quick Details
-
Brand Name:
-
TOP Oil Purifier
-
Voltage:
-
380V(or as needed)
-
Power:
-
48kW
-
Dimension(L*W*H):
-
1750*1300*2250 mm
-
Weight:
-
1000 kg, 850-3000kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working Vacuum:
-
-0.08~-0.099MPa
-
Temperature Range:
-
20 ~ 80℃
-
Total power:
-
36-135KW
-
outlet(inlet) caliber:
-
32-76mm
-
Breakdown voltage:
-
≥70kV
-
Color:
-
as needed
Quick Details
-
Marketing Type:
-
New Product 2024
-
Flow:
-
3000L/h
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
TOP Oil Purifier
-
Voltage:
-
380V(or as needed)
-
Power:
-
48kW
-
Dimension(L*W*H):
-
1750*1300*2250 mm
-
Weight:
-
1000 kg, 850-3000kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Working Vacuum:
-
-0.08~-0.099MPa
-
Temperature Range:
-
20 ~ 80℃
-
Total power:
-
36-135KW
-
outlet(inlet) caliber:
-
32-76mm
-
Breakdown voltage:
-
≥70kV
-
Color:
-
as needed
Series ZYD-I Mobile Double Vacuum Transformer Switch Insulating Oil Filtration and Regeneration Machine

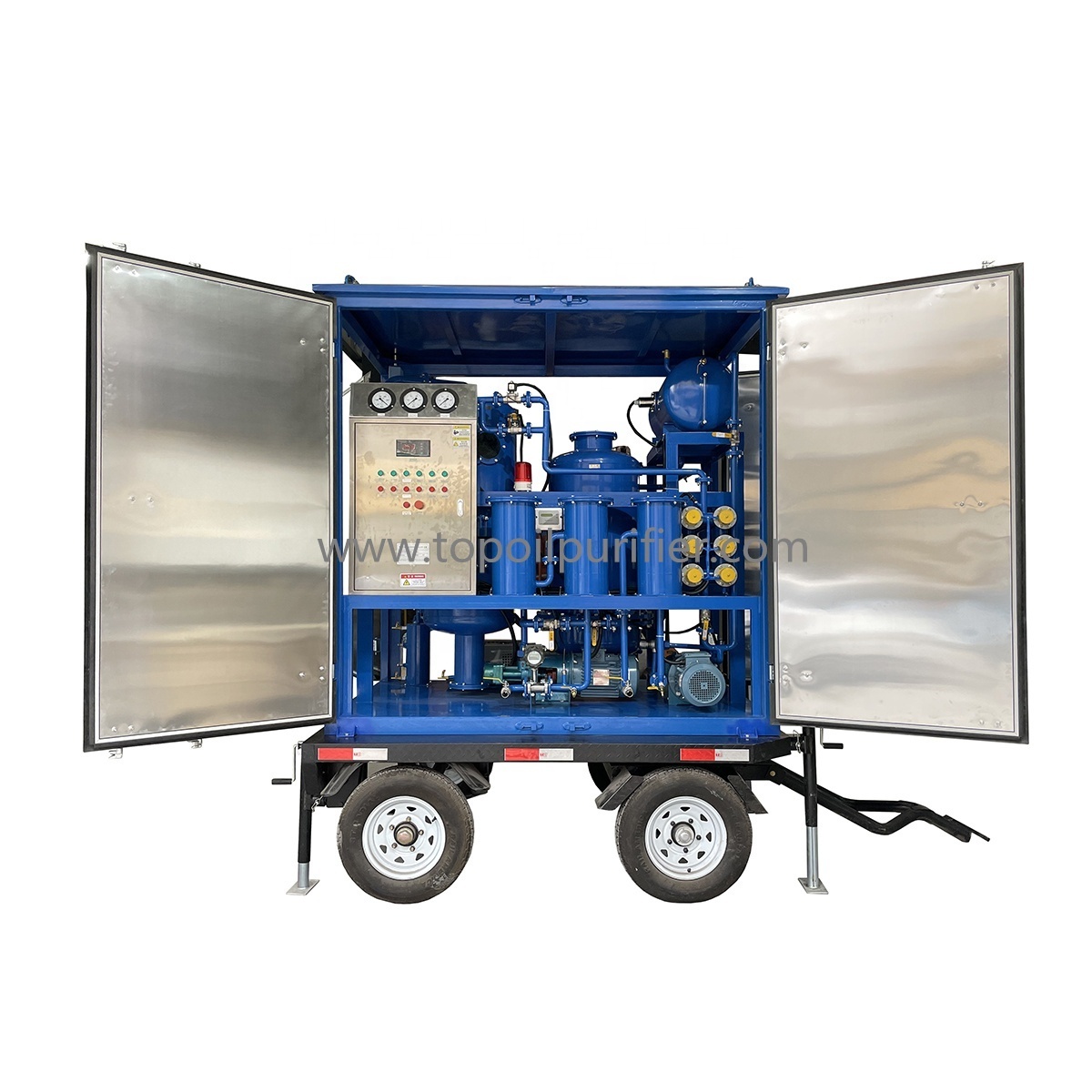

ZYD-I-M is outdoor usage mobile type double stage vacuum transformer oil regeneration system, equipped with trailer which can move long distance, and equipped with weather proof, dust and water resistance enclosure. It is specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. It not only provides regular oil purification including degassing, drying and particulate removal but also removes acidity, sludge, other soluble oil decay products, and improves color.
The system is mounted on a leak proof base and is installed and operated on a trailer.
|
Item
|
|
Unit
|
ZYD-I-M-30
|
ZYD-I-M-50
|
ZYD-I-M-100
|
ZYD-I-M-150
|
ZYD-I-M-200
|
ZYD-I-M-250
|
ZYD-I-M-300
|
|||||||
|
Flow rate
|
|
L/min
|
30
|
50
|
100
|
150
|
200
|
250
|
300
|
|||||||
|
Flow rate
|
|
L/h
|
1800
|
3000
|
6000
|
9000
|
12000
|
15000
|
18000
|
|||||||
|
Working vacuum
|
|
MPa
|
-0.08~-0.099
|
|
|
|
|
|
|
|||||||
|
Vacuum pressure
|
|
MPa
|
≤0.3
|
|
|
|
|
|
|
|||||||
|
Temperature range
|
|
℃
|
20~80
|
|
|
|
|
|
|
|||||||
|
Power
|
|
|
AC380V/50HZ/3Ph 5 wire (can be customized)
|
|
|
|
|
|
|
|||||||
|
Working noise
|
|
dB(A)
|
68
|
70
|
70
|
75
|
75
|
75
|
75
|
|||||||
|
Heating power
|
|
kW
|
30
|
36
|
48
|
60
|
80
|
108
|
120
|
|||||||
|
Total power
|
|
kW
|
36
|
44
|
54
|
70
|
93
|
120
|
135
|
|||||||
|
Inlet/Outlet
|
|
mm
|
φ32
|
φ32
|
φ42
|
φ42
|
φ48
|
φ60
|
φ60
|
|||||||
|
Weight
|
|
kg
|
850
|
1000
|
1100
|
1250
|
2200
|
2600
|
3000
|
|||||||
|
Overall
|
Length
|
mm
|
1700
|
1750
|
1800
|
1900
|
2000
|
2150
|
2200
|
|||||||
|
|
Width
|
mm
|
1200
|
1300
|
1400
|
1450
|
1500
|
1550
|
1600
|
|||||||
|
|
Height
|
mm
|
2200
|
2250
|
2450
|
2450
|
2450
|
2450
|
2450
|
|||||||
|
|
Breakdown Voltage
|
kV
|
≥75
|
|
|
|
|
|
|
|||||||
|
|
Moisture content
|
PPM
|
≤3
|
|
|
|
|
|
|
|||||||
|
|
Gas content
|
%
|
≤0.1
|
|
|
|
|
|
|
|||||||
|
|
Impurity size
|
micron
|
≤1 (no free carbon)
|
|
|
|
|
|
|
|||||||
|
|
Value β
|
%
|
98
|
|
|
|
|
|
|
|||||||
|
|
Cleanness
|
NAS1638
|
≤ 6
|
|
|
|
|
|
|
|||||||
|
|
Flash Point (Close)
|
℃
|
≥135
|
|
|
|
|
|
|
|||||||
|
|
Acid value
|
mg KOH/g
|
0.01
|
|
|
|
|
|
|
|||||||
|
|
Interfacial tension
|
N/m
|
≥145
|
|
|
|
|
|
|
|||||||
|
|
Dielectric loss factor
|
|
≤0.01
|
|
|
|
|
|
|
|||||||
|
|
Color
|
|
Light yellow(close to water)
|
|
|
|
|
|
|
|||||||
