Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shunli Motor
-
Model Number:
-
775
-
Torque:
-
2kg.cm-15kg.cm
-
Product Name:
-
GM25AM370
-
Keywords:
-
Micro dc gear motor
-
Rated Voltage:
-
3V-24V
-
No-load Speed:
-
8RPM-4000RPM
-
Typical Applications:
-
Automatically machine
-
Shaft diameter:
-
4mm
-
Diameter:
-
25mm
-
Material:
-
Magnets
-
Brush Type:
-
Brush
-
Certification:
-
CCC
Quick Details
-
Speed(RPM):
-
50RPM
-
Continuous Current(A):
-
0.46A-2.1A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Shunli Motor
-
Model Number:
-
775
-
Torque:
-
2kg.cm-15kg.cm
-
Product Name:
-
GM25AM370
-
Keywords:
-
Micro dc gear motor
-
Rated Voltage:
-
3V-24V
-
No-load Speed:
-
8RPM-4000RPM
-
Typical Applications:
-
Automatically machine
-
Shaft diameter:
-
4mm
-
Diameter:
-
25mm
-
Material:
-
Magnets
-
Brush Type:
-
Brush
-
Certification:
-
CCC

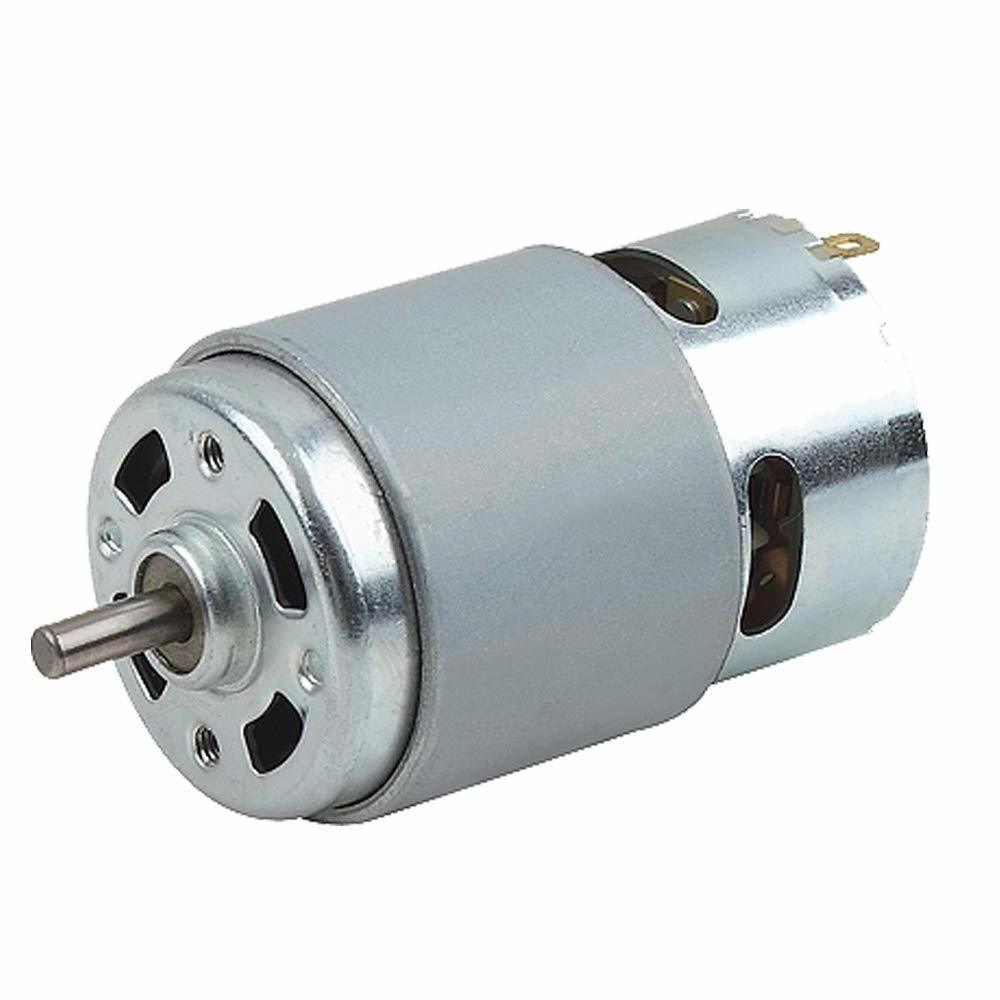

Shunli Custom Dc Brushless Motor Controller 775 Dc motor 12v.36v 28000 Rpm Net Prices
Product Details
Motor Customized Specification, Please Contact Us.
Reference Drawing
------GM25AM310
------GM25AM370
"A" Length, Please Check (Gearbox Technical Date) .
Reference Datasheet
Gearbox Technical Date
| Number of stages | 3 | 4 | 5 | 6 | 7 | 8 |
| Ratio | 4.2K / 9.2K | 15K / 20K | 26K / 34K / 45K | 42K / 56K / 75K/ 99K | 72K / 95K / 125K / 155K /217K | 119K / 158K / 208K / 274K /362K /478K |
| Gearbox Length “A”(mm) | 19 | 20 | 21.5 | 23.5 | 25.5 | 27.5 |
| Max. Rated Torque | 2.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm | 6.0 Kgf.cm | 6.0 Kgf.cm | 8.0 Kgf.cm |
| Max. Gear Broke Torque | 4.0 Kgf.cm | 8.0 Kgf.cm | 10.0 Kgf.cm | 12.0 Kgf.cm | 12.0 Kgf.cm | 15.0 Kgf.cm |
| Gearbox Efficiency | 85%~90% | 75%~85% | 65%~75% | 55%~65% | 45%~55% | 40%~45% |
Gearmotor Technical Date
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GM25AM310-217K | 1 : 217 | 3 VDC | 65 | ≤ 230 | 50 | ≤ 650 | 0.055 / 0.55 | ≤ 2200 | 0.18 / 1.8 |
| GM25AM370-99K | 1 : 99 | 12 VDC | 75 | ≤ 80 | 65 | ≤ 360 | 0.18 / 1.8 | ≤ 2000 | 0.65 / 6.5 |
