Quick Details
-
Brand Name:
-
GW
-
Model Number:
-
Round U Bolt
-
Product Type:
-
Round U Bolt
-
Dia:
-
1/4-20, 5/16-18, 3/8-16, 1/2-13
-
Length:
-
1-3/8" to 8-1/2"
-
Thread Style:
-
UNC
-
lnclude:
-
One Plate and Tow HEX Nuts
-
Free Samples:
-
Free of charge and will be dispatched in 2 days
Quick Details
-
Finish:
-
ZINC
-
Material:
-
Steel
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
GW
-
Model Number:
-
Round U Bolt
-
Product Type:
-
Round U Bolt
-
Dia:
-
1/4-20, 5/16-18, 3/8-16, 1/2-13
-
Length:
-
1-3/8" to 8-1/2"
-
Thread Style:
-
UNC
-
lnclude:
-
One Plate and Tow HEX Nuts
-
Free Samples:
-
Free of charge and will be dispatched in 2 days
Product Description
Steel U-Bolt with Nuts Bent U Bolt Zinc Round U Bolt
| Square U-bolts are great for attachment to square shaped objects. |
| The zinc-plated finish provides corrosion resistance. |
| U-bolt measurements are: diameter x inside length x width between legs. |
| One plate and two hex nuts per u-bolt are included. |
| To install: hook the U-bolt around a square post, adjust plate to desired position, and secure tightly in place with a hex nut on each leg. |
Specification:
| Round U Bolt | ||
| Diameter x Width X Length | Material | Finish |
| 1/4-20 x 9/16 x 1-3/8 | Carbon Steel | Zinc Plated |
| 1/4-20 x 3/4 x 1-1/4 | Carbon Steel | Zinc Plated |
| 1/4-20 x 3/4 x 1-3/4 | Carbon Steel | Zinc Plated |
| 1/4-20 x 3/4 x 2-3/4 | Carbon Steel | Zinc Plated |
| 1/4-20 x 1 x 1-3/4 | Carbon Steel | Zinc Plated |
| 1/4-20 x 1 x 2-3/4 | Carbon Steel | Zinc Plated |
| 1/4-20 x 1-1/8 x 2-1/4 | Carbon Steel | Zinc Plated |
| 1/4-20 x 1-1/8 x 3-1/2 | Carbon Steel | Zinc Plated |
| 1/4-20 x 1-3/8 x 2-3/4 | Carbon Steel | Zinc Plated |
| 1/4-20 x 1-3/4 x 2-3/4 | Carbon Steel | Zinc Plated |
| 1/4-20 x 2 x 3-1/2 | Carbon Steel | Zinc Plated |
| 5/16-18 x 1 x 2-3/16 | Carbon Steel | Zinc Plated |
| 5/16-18 x 1-1/8 x 2-3/16 | Carbon Steel | Zinc Plated |
| 5/16-18 x 1-3/8 x 2-1/2 | Carbon Steel | Zinc Plated |
| 5/16-18 x 1-3/8 x 3-3/4 | Carbon Steel | Zinc Plated |
| 5/16-18 x 1-3/4 x 3 | Carbon Steel | Zinc Plated |
| 5/16-18 x 1-3/4 x 4-1/4 | Carbon Steel | Zinc Plated |
| 5/16-18 x 2 x 3-1/4 | Carbon Steel | Zinc Plated |
| 5/16-18 x 2 x 3-11/16 | Carbon Steel | Zinc Plated |
| 5/16-18 x 2 x 4-11/16 | Carbon Steel | Zinc Plated |
| 5/16-18 x 2-1/2 x 3-1/2 | Carbon Steel | Zinc Plated |
| 5/16-18 x 2-1/2 x 4-3/16 | Carbon Steel | Zinc Plated |
| 5/16-18 x 2-1/2 x 5-3/16 | Carbon Steel | Zinc Plated |
| 5/16-18 x 3 x 3-11/16 | Carbon Steel | Zinc Plated |
| 3/8-16 x 1- x 2-1/4 | Carbon Steel | Zinc Plated |
| 3/8-16 x 1-1/4 x 2-1/4 | Carbon Steel | Zinc Plated |
| 3/8-16 x 2 x 3-1/8 | Carbon Steel | Zinc Plated |
| 3/8-16 x 2-1/2 x 3-5/8 | Carbon Steel | Zinc Plated |
| 3/8-16 x 3 x 4-1/8 | Carbon Steel | Zinc Plated |
| 3/8-16 x 3 x 6-5/8 | Carbon Steel | Zinc Plated |
| 3/8-16 x 3-1/2 x 4-5/8 | Carbon Steel | Zinc Plated |
| 3/8-16 x 3-1/2 x 6-1/2 | Carbon Steel | Zinc Plated |
| 1/2-13 x 3 x 5 | Carbon Steel | Zinc Plated |
| 1/2-13 x 3-1/2 x 5-1/2 | Carbon Steel | Zinc Plated |
| 1/2-13 x 3-1/2 x 8-1/2 | Carbon Steel | Zinc Plated |
| 1/2-13 x 4 x 6 | Carbon Steel | Zinc Plated |
| 1/2-13 x 4-1/2 x 6-1/2 | Carbon Steel | Zinc Plated |

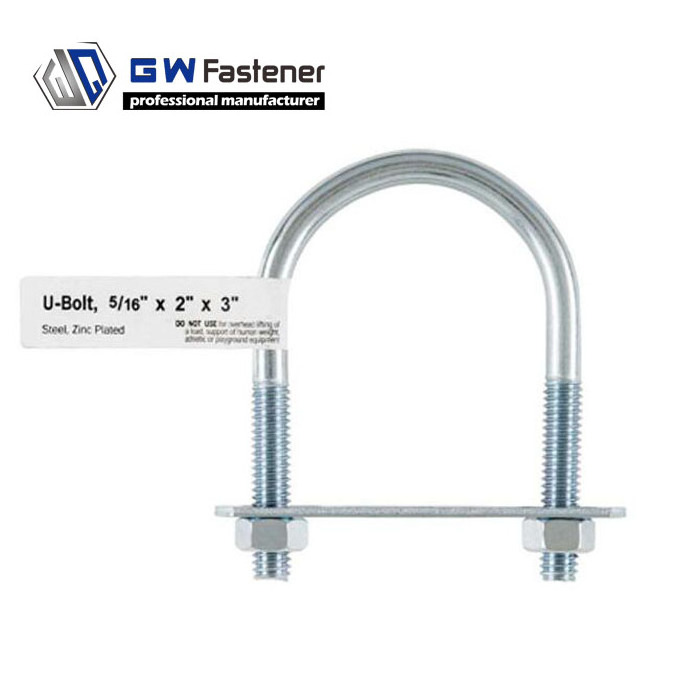

Product Photos
