Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
3800 kg
-
Product name:
-
Trailer folding boom aerial working platform
-
Model:
-
GTQT12
-
Maximum working height (m):
-
12
-
Maximum platform height(m):
-
10.5
-
Maximum working amplitude(m):
-
8
-
Amplitude at maximum working height:
-
3.6
-
Collection size:
-
6.75*1.87*1.92
-
Platform size:
-
1600*650*1050mm
-
Wheelbase(m):
-
1.9
-
Ground clearance(mm)-center:
-
400
Quick Details
-
Application:
-
architecture
-
Rated Loading Capacity:
-
230kg
-
Max. Lifting Height:
-
12M
-
Place of Origin:
-
Shandong, China
-
Weight (KG):
-
3800 kg
-
Product name:
-
Trailer folding boom aerial working platform
-
Model:
-
GTQT12
-
Maximum working height (m):
-
12
-
Maximum platform height(m):
-
10.5
-
Maximum working amplitude(m):
-
8
-
Amplitude at maximum working height:
-
3.6
-
Collection size:
-
6.75*1.87*1.92
-
Platform size:
-
1600*650*1050mm
-
Wheelbase(m):
-
1.9
-
Ground clearance(mm)-center:
-
400

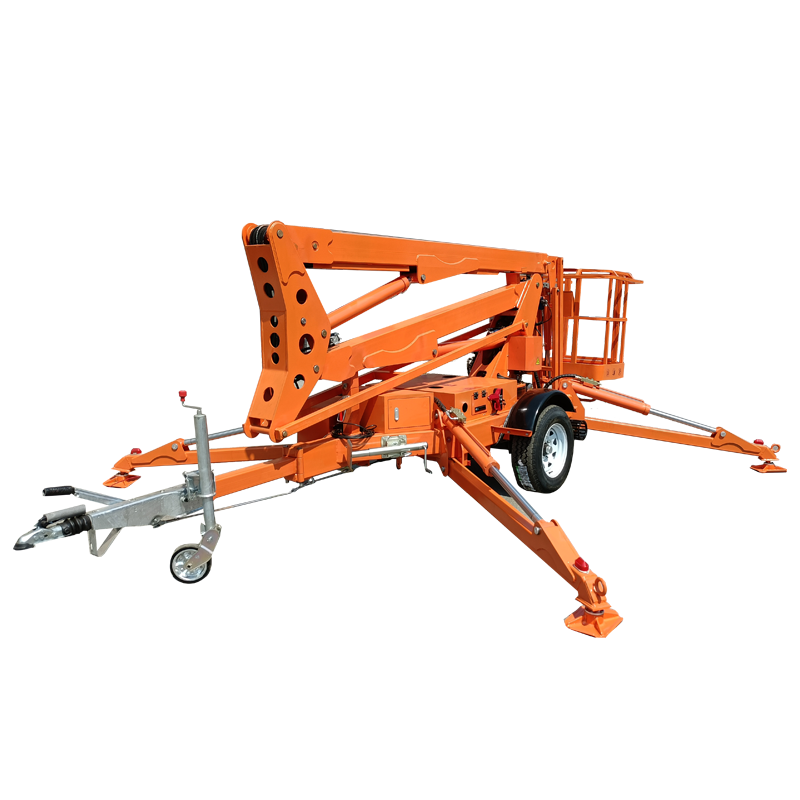

Product introduction: GTQT trailer folding boom aerial working platform is a new product developed by our company, which adopts Perkins inline four-cylinder water-cooled engine as the power source, which can adapt to the application of rough ground and drive smoothly; four-wheel drive and brake, with a climbing capacity of 45%; the boom part is a linkage mechanism composed of two groups of parallel
four-linked rods, with compact collection volume and large elevation stroke; the middle part is a simple boom telescoping mechanism, which increases the operating range of the platform. The middle part is a simple boom telescoping mechanism, which increases the operating range of the platform. It is suitable for the high-level exhibition of the arena, and also for the space operation in the area or space narrow plant; it is especially suitable for the continuous high-altitude operation in a larger area such as airport terminal, station, wharf, shopping mall, stadium, community property, factory and mine workshop.
|
Model
|
GTQT12
|
Max. working height(m)
|
12
|
|
Maximum platform height(m)
|
10.5
|
Maximum working
platform amplitude(m) |
8
|
|
Amplitude at maximum working height (from the center of rotation)(m)
|
3.6
|
Collection length(m)
|
6.75
|
|
Collection width(m)
|
1.87
|
Collection height(m)
|
1.92
|
|
Platform length(mm)
|
1600
|
Wheelbase(m)
|
1.9
|
|
Wheelbase(m)
|
1.92
|
Ground
clearance(mm)-center |
400 |
|
Load capacity
|
230kg
|
Platform rotation
|
180°
|
|
Turntable rotation
|
355°
|
Drivespeed(km/h)-storage
|
6
|
|
Drive speed(km/h)-lift
|
1
|
Climbing capacity-boom
full retraction |
45% |
(1)Strong climbing force and excellent traction enable the machine to drive on rugged ground.
(2)The telescopic arm is made of high-strength 8-angle alloy steel, so that the welded deformation of the telescopic arm can be minimized, which makes the telescopic arm durable and has the best sturdiness and weight ratio, and the main arm sagging size is also reduced to a minimum.
(3)Proportional control system.
(4)Small boom up and down range of 150 degrees.
(5)Platform can be hydraulically rotated 100 degrees from side to side, with a platform anti-slip floor and landing line of sight.
Product use: GTQT trailer folding arm aerial work platform for up and down control, electric lifting, this aerial lifting platform is characterized by small and flexible, convenient and fast, you can use a lifting platform instead of scaffolding to reach the height you need, to solve your problems. At the same time, it can also save your cost and valuable time. The series of lifts are widely used in municipalities, electric power, street lights, highways, docks, advertising, gardens, community property, factories and mining enterprises workshop and other industries range of lifting operations.
*10years factory production experience*3 years machine warranty
*156 exported country experience
*20000 square metersAerial lift platform machine factory
*Jinan Felici Machinery Equipment Co., Ltd.
Jinan Felici Machinery Equipment Co., Ltd. is one of the famous and big manufacturers of Aerial lift platform。
Since its inception in 2014, and after many years of development and growth, the company is now playing a leading role in Aerial lift platform machinery inChina Jinan Felici Machinery Equipment Co., Ltd has 2 factories, which are located in Jinan City. Advanced products, exquisite techniques, solid working, and cordial services
About Aerial lift platform machines, we are professional and have full set certifcates.For every Aerial lift platform, we have serious quality control for every machine and every parts before it leaves our factory.
Workers shipped machines in the rain just to let customers receive our machines on time. Integrity has always been the reputation of our company.
The perfect after-sales team has always been our strongest backing, making our after-sales service more perfect.
FAQ
Question:Are you manufacture?
Answer:Yes,we are the professional manufacture which have more than 5 workshops
Question: How about the service ?
Answer.
1).reply it at once if from Ali-trade manager if by email.it reply it within 12 hour
2).deliver max. days within 15 days
3).24 hours for after -sale serive
4).more than 10 years experience in this kind machine feld
5).fluent english ,communication barrier free
Question:What's the guarantee ?
Answer.
1).Qur guarantee for 18 months.
2).24 hour's technical support by email or calling
3).English manual and video tutorial
4).2 year quality guaranty for the machine (excluding the consumables)
5).We will provide the consumable parts at an agency price
6).24 hours on line service each day, free technical support.
Question: Do you provide equipment operation training?
Answer.Yes. We can send professional engineers to the working site for equipment installation, adiustment, and operation training
Allof our engineers have passport.
