Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Razortek
-
Weight (KG):
-
45 KG
-
Warranty of core components:
-
2years
-
Product name:
-
Fiber laser marking machine
-
Laser Power:
-
20W/ 30W/ 50W /100W
-
Laser source:
-
Raycus
-
Software:
-
JCZ EZCAD Software
-
Laser head:
-
Sino Galvo High Speed Scanner
-
Cooling system:
-
Air Colling
-
Laser mode:
-
Fiber Laser Souce
-
Working area:
-
110*110mm /175*175mm/ 200*200mm/300*300mm
-
Marking material:
-
Metal Non-metal
-
Power supply:
-
220V/50HZ/1-PH
Quick Details
-
Working Accuracy:
-
0.001mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Razortek
-
Weight (KG):
-
45 KG
-
Warranty of core components:
-
2years
-
Product name:
-
Fiber laser marking machine
-
Laser Power:
-
20W/ 30W/ 50W /100W
-
Laser source:
-
Raycus
-
Software:
-
JCZ EZCAD Software
-
Laser head:
-
Sino Galvo High Speed Scanner
-
Cooling system:
-
Air Colling
-
Laser mode:
-
Fiber Laser Souce
-
Working area:
-
110*110mm /175*175mm/ 200*200mm/300*300mm
-
Marking material:
-
Metal Non-metal
-
Power supply:
-
220V/50HZ/1-PH
Product Description
Fiber laser marking machine is the most advanced laser marking equipment in the world. It has the characteristics of good beam quality, small size, fast speed, long working life, flexible and convenient installation and maintenance-free.
* Can carve metal and a variety of non-metallic materials.
*

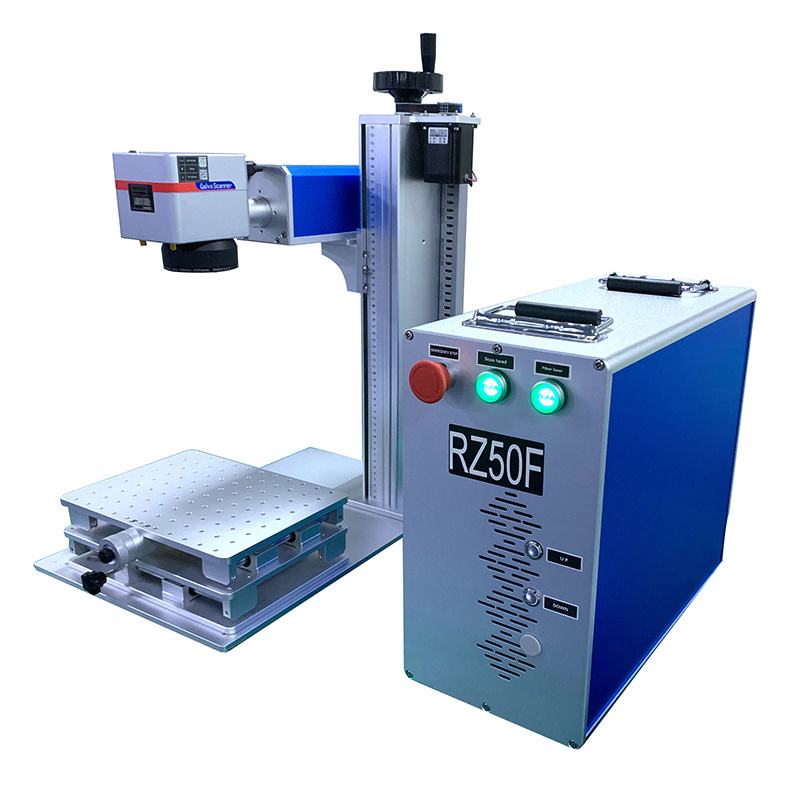

Fiber laser marking machine is mainly composed of fiber laser, high-speed
Galvo scanner
, EZCAD marking software, industrial computer and electronic control cabinet and other components.
* Adopts Raycus pulsed fiber laser, its output laser mode is good for long service life, about 100000hours, is designed to be installed in the marking machine housing.
Specification
|
Description
|
Parameter
|
|
|
|
Model
|
RZ30F
|
RZ50F
|
|
|
Laser power
|
Raycus/JPT/IPG fiber 30w/50w
|
|
|
|
Working area
|
100*100mm(200*200mm optional)
|
|
|
|
Laser Wavelength
|
1064nm
|
|
|
|
Response time
|
0.5ms
|
|
|
|
Frequency of pulse
|
20-100KHz
|
|
|
|
Max marking depth
|
≤0.8mm
|
|
|
|
Marking lines
|
1-10 lines(in the marking area)
|
|
|
|
Minimum line width
|
10um
|
|
|
|
Minimum character
|
0.15mm
|
|
|
|
Repeatability accuracy
|
±0.002mm
|
|
|
|
Resolution ratio
|
0.1mm
|
|
|
|
Marking content
|
Text,pattern,date,barcode,etc
|
|
|
|
Operation system
|
Windows XP and win7,win8,win10
|
|
|
|
Control software
|
EZCAD control software
|
|
|
|
Graphic format supported
|
bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
|
|
|
|
Unit power
|
≤1.2KW
|
|
|
|
Operation temperature
|
5℃-40℃
|
|
|
|
Relative moisture
|
≤ 90%,no fog
|
|
|
|
Supply Voltage
|
220V, 50/60Hz
|
|
|
Details Images
Optional parts
2D alloy table
Rotary device
Application& Samples
Can carve a variety of metal and non-metallic materials. Used in garment accessories, pharmaceutical packaging, wine packaging, building ceramics, beverage packaging, fabric cutting, rubber products, shell nameplate, craft gifts, electronic components, leather and other industries.
