Quick Details
-
Dimension(L*W*H):
-
1900*1100*2600mm
-
Weight:
-
5000 KG
-
Drilling Depth:
-
Max.1000m
-
Mobility:
-
first-rate
-
Feature:
-
High Drilling Efficiency
-
Drilling method:
-
Percussive
-
Application:
-
Water Wells Rock Drill Rig
-
Name:
-
Multifunction Hydraulic Drilling Rig
-
Keyword:
-
Borehole Core Drilling Machines
-
Key words:
-
Water Drilling Equipment
-
Drilling bit:
-
Alloy Bit
-
Max Drilling Depth:
-
100-1000m
-
Air consumption:
-
17-35m3/min
-
Drill rod diameter:
-
76mm/89mm/102mm
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Earlybird
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1900*1100*2600mm
-
Weight:
-
5000 KG
-
Drilling Depth:
-
Max.1000m
-
Mobility:
-
first-rate
-
Feature:
-
High Drilling Efficiency
-
Drilling method:
-
Percussive
-
Application:
-
Water Wells Rock Drill Rig
-
Name:
-
Multifunction Hydraulic Drilling Rig
-
Keyword:
-
Borehole Core Drilling Machines
-
Key words:
-
Water Drilling Equipment
-
Drilling bit:
-
Alloy Bit
-
Max Drilling Depth:
-
100-1000m
-
Air consumption:
-
17-35m3/min
-
Drill rod diameter:
-
76mm/89mm/102mm

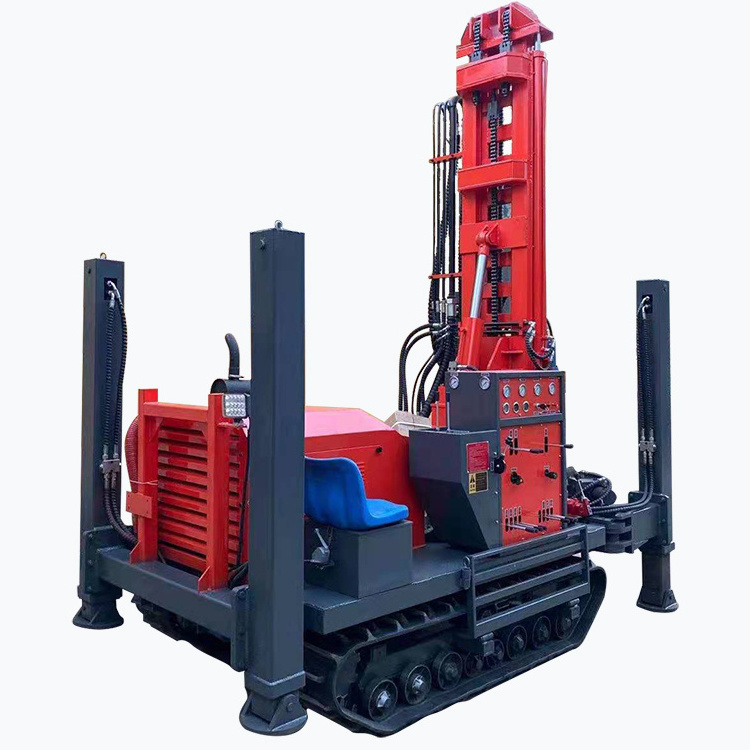

Product Description
200s, 220s, 260s, 300s, 350s, 400s, 500s, and other models of rotary fully hydraulically controlled water well drilling rigs are multi-functional and can be used with air compressors and mud pumps. We can even only use dry hydraulic drilling methods.
Portable drilling rigs are not only designed for water but can be used in all conditions based on hole forming purposes.
This series of water well drilling rigs has the characteristics of standardized configuration, compact and reasonable structure, fast drilling speed, economy and durability, and low failure rate. It has been recognized by the market as soon as it was launched, and has been widely used in mining engineering construction, civil drilling, and geothermal drilling. and other fields.
Widely used in industrial and agricultural water conservancy projects, test wells and other exploration drilling. In particular, geothermal heating drilling can also meet the needs of engineering foundation reinforcement, loose gravel drilling rock formations and connections with various projects.
Our drilling rigs are more efficient, have lower failure rates, are more economical and durable, and have high overall cost performance.
|
Maximum drilling depth
|
200m
|
Maximum rotation torque
|
4200-5600Nm
|
|
Drilling diameter
|
90-254mm
|
Rotation speed
|
48-70r/min
|
|
Working pressure
|
1.05-2.46Mpa
|
Mud pump flow
|
20L/min(optional)
|
|
Air consumption
|
16-30m³/min
|
High hydraulic outrigger travel
|
1.5m
|
|
Drill pipe length
|
3m
|
Footage efficiency
|
10-35m/h
|
|
Drill pipe diameter
|
76/89mm
|
Walking speed
|
2.5km/h
|
|
shaft pressure
|
4T
|
Gradeability
|
30°
|
|
Lifting power
|
12T
|
Machine weight
|
4.9T
|
|
boost speed
|
2.5m/min
|
Dimensions
|
3.6M×1.7M×2.15M
|
|
propulsion speed
|
0.5-5m/min
|
engine
|
55KW
|
|
Fast increase speed
|
18m/min
|
adapt to conditions
|
Adaptable conditions: loose layer and bedrock
|
|
fast advance speed
|
35m/min
|
Drilling method
|
Drilling method: top drive hydraulic rotation and propulsion, down-the-hole impactor or mud drilling
|
|
Maximum drilling depth
|
220m
|
Rotation speed
|
50-70r/min
|
|
Drilling diameter
|
90-315mm
|
Tool winch lifting capacity
|
1.5T
|
|
Working pressure
|
1.7-3.0Mpa
|
Mud pump flow
|
20L/min(optional)
|
|
Air consumption
|
17-35m³/min
|
High hydraulic outrigger travel
|
1.5m
|
|
Drill pipe length
|
3m
|
Footage efficiency
|
10-35m/h
|
|
Drill pipe diameter
|
76/89mm
|
Walking speed
|
2km/h
|
|
shaft pressure
|
4T
|
Gradeability
|
30°
|
|
Lifting power
|
12T
|
Machine weight
|
4.8T
|
|
boost speed
|
2.5m/min
|
Overall dimensions
|
3.7M×1.75M×2.25M
|
|
propulsion speed
|
0.5-5m/min
|
ngine
|
yunnei 65KW
|
|
Fast increase speed
|
18m/min
|
adapt to conditions
|
Adaptable conditions: loose layer and bedrock
|
|
fast advance speed
|
35m/min
|
Drilling method
|
Drilling method: top drive hydraulic rotation and propulsion, down-the-hole impactor or mud drilling
|
|
Maximum rotation torque
|
4500-6500Nm
|
|
|
|
Maximum drilling depth
|
260m
|
Rotation speed
|
50-70r/min
|
|
Drilling diameter
|
90-305mm
|
Tool winch lifting capacity
|
1.5T
|
|
Working pressure
|
1.7-3.0Mpa
|
Mud pump flow
|
20L/min(optional)
|
|
Air consumption
|
17-35m³/min
|
High hydraulic outrigger travel
|
1.5m
|
|
Drill pipe length
|
3m
|
Footage efficiency
|
10-35m/h
|
|
Drill pipe diameter
|
76/89mm
|
Walking speed
|
2km/h
|
|
shaft pressure
|
4T
|
Gradeability
|
30°
|
|
Lifting power
|
14T
|
Machine weight
|
6T
|
|
boost speed
|
2.5m/min
|
Overall dimensions
|
3.9M×1.7M×2.15M
|
|
propulsion speed
|
0.5-5m/min
|
ngine
|
yuchai77KW
|
|
Fast increase speed
|
18m/min
|
adapt to conditions
|
Adaptable conditions: loose layer and bedrock
|
|
fast advance speed
|
35m/min
|
Drilling method
|
Drilling method: top drive hydraulic rotation and propulsion, down-the-hole impactor or mud drilling
|
|
Maximum rotation torque
|
5500-7000Nm
|
|
|
|
Maximum drilling depth
|
300m
|
Rotation speed
|
80-150r/min
|
|
Drilling diameter
|
105-355mm
|
Tool winch lifting capacity
|
1.5T
|
|
Working pressure
|
1.05-3.45Mpa
|
Mud pump flow
|
20L/min(optional)
|
|
Air consumption
|
16-55m³/min
|
High hydraulic outrigger travel
|
1.5m
|
|
Drill pipe length
|
3.5m/6.6m
|
Footage efficiency
|
10-35m/h
|
|
Drill pipe diameter
|
76/89mm
|
Walking speed
|
3.5km/h
|
|
shaft pressure
|
4T
|
Gradeability
|
30°
|
|
Lifting power
|
20T
|
Machine weight
|
8T
|
|
boost speed
|
3m/min
|
Overall dimensions
|
4.2M×1.85M×2.45M
|
|
propulsion speed
|
0.5-5m/min
|
ngine
|
yunnei92KW
|
|
Fast increase speed
|
30m/min
|
Optional
|
electric welding machine, mud pump, pipe expander
|
|
fast advance speed
|
50m/min
|
adapt to conditions
|
Adaptable conditions: loose layer and bedrock
|
|
Maximum rotation torque
|
6500-8800Nm
|
Drilling method
|
Drilling method: top drive hydraulic rotation and propulsion, down-the-hole impactor or mud drilling
|
Company profile
Henan early bird machinery co.,LTD. located in Zhengzhou, has kept its record in Administration Bureau for Industry and Commerce.The company is a lawful operation. Located in central China, transportation convenience, advanced technology and scientific management guarantee our steady development.We are a large engineering machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipments and so on.We believes that good quality can give us survival, thus we provides you the top products. All the products with high quality meet international standards. Our equipments are highly estimated by the clients, and are well known at home and abroad.
All the staff in our company are professional trained, so we are familiar with the products and can recommend you the most appropriate equipment.
All the staff in our company are professional trained, so we are familiar with the products and can recommend you the most appropriate equipment.
FAQ
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll send you photos of the products and
packages before you pay the balance.
Q: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q: How about your delivery time?
A:Generally it takes 7-10 workdays after we received your advance payment. The specific delivery time depends on the items and the quantity.
Q: What is the warranty?
A: We provide a 1-year warranty (except for the hammer) for the machines, during this period all broken accessories can be changed for a new one. And we provide instructions for machine install and operation.
Q: What is your terms of packing?
A: Generally we use standard wooden case for LCL goods, and fixed well for FCL goods.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. And we will send you the inspection report for every machine.
Q: Do you provide wear parts?
A: Yes, all kind of wear parts are available.
