Quick Details
-
Brand Name:
-
CNYIOT
-
Model Number:
-
DTSY1877
-
Accuracy Class:
-
1
-
Output Voltage:
-
380V
-
Operating Temperature:
-
-20℃~70℃
-
Dimensions:
-
215mm*145mm*70mm
-
Product name:
-
Three-Phase Electricity Meter
-
Frequency:
-
50Hz
-
Rated Current:
-
1.5(6)A
-
Display:
-
LCD6+2
-
Humidity:
-
<95%
-
Low Balance Indication:
-
Yellow LED
-
Impulse Indication:
-
Red LED
-
Power consumption:
-
<2W/<10VA@Un
-
Start Current:
-
0.4%Ib
-
Load:
-
Built- in Direct 100A/ mutual inductance 6A magnetic holding relay
Quick Details
-
Phase:
-
Three Phase
-
Measuring Energy Range:
-
3x220V/380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNYIOT
-
Model Number:
-
DTSY1877
-
Accuracy Class:
-
1
-
Output Voltage:
-
380V
-
Operating Temperature:
-
-20℃~70℃
-
Dimensions:
-
215mm*145mm*70mm
-
Product name:
-
Three-Phase Electricity Meter
-
Frequency:
-
50Hz
-
Rated Current:
-
1.5(6)A
-
Display:
-
LCD6+2
-
Humidity:
-
<95%
-
Low Balance Indication:
-
Yellow LED
-
Impulse Indication:
-
Red LED
-
Power consumption:
-
<2W/<10VA@Un
-
Start Current:
-
0.4%Ib
-
Load:
-
Built- in Direct 100A/ mutual inductance 6A magnetic holding relay
Product Description
8 product service advantages:
1.Reduce labor costs and save time and effort in management
2.The system is easy to operate
3.Intelligent sub-push, users have no complaints
4.APP/public number/SMS/voice low power reminder more user-friendly
5.Self-service payment, flexible payment method, better user experience
6.Real-time query of electricity data and balance, no disputes
7.Automatic bill generation, real-time query of details, more transparent fees
8.Property management, easy to operate, associated power off, safe and assured
2.The system is easy to operate
3.Intelligent sub-push, users have no complaints
4.APP/public number/SMS/voice low power reminder more user-friendly
5.Self-service payment, flexible payment method, better user experience
6.Real-time query of electricity data and balance, no disputes
7.Automatic bill generation, real-time query of details, more transparent fees
8.Property management, easy to operate, associated power off, safe and assured

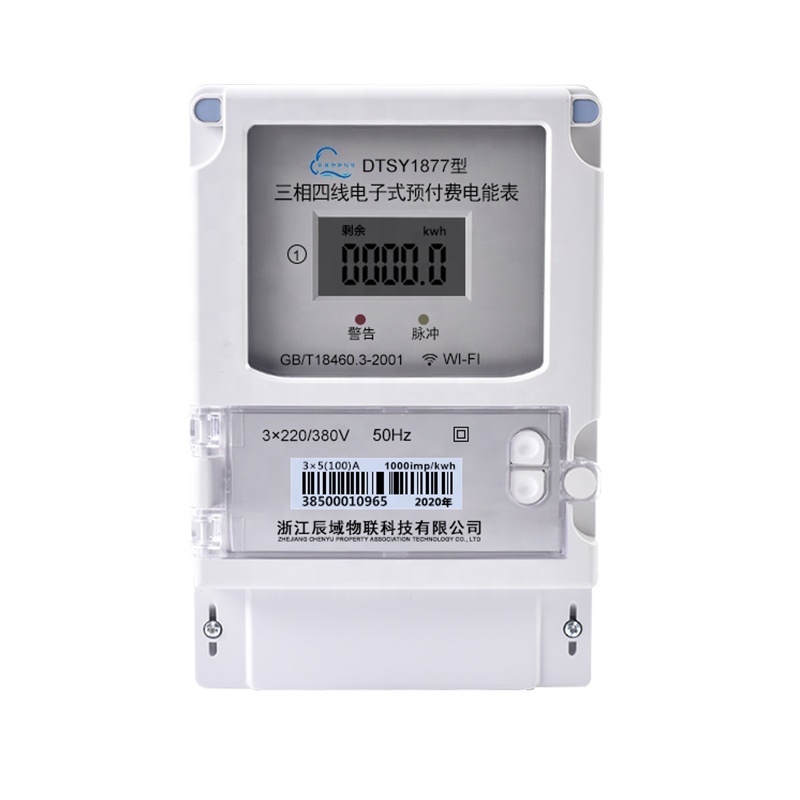

Three-phase Smart Electricity Meter DTSY1877
DTSY1877-4G
communication smart meter built-in 4G traffic card communication module,4G than 2G and NB-loT advantages are more obvious. The base station has a wide coverage, easy to cross provincial remote, and the installation location of the meter can be controlled as long as there is 4G signal coverage. Through mobile phone download APP, management account login can be remote recharge, monitoring power, remote power.
DTSY1877-Wi-Fi
t
he installation environment of the communication meter needs to be covered by WIFI communication signals. After logging in through the mobile phone APP, public number or web version system, you can recharge, monitor the electricity, and remotely power on and off.
Specification
|
Item
|
value
|
|
Reference Standard
|
IEC62052-11/IEC62053-21; GB/T17215.321-2008
|
|
Model Number
|
DTSY1877
|
|
Phase
|
Three Phase
|
|
Accuracy Class
|
1
|
|
Output Voltage
|
380V
|
|
Operating Temperature
|
-20℃~70℃
|
|
Dimensions
|
215mm*145mm*70mm
|
|
Rated Current
|
5(100)A/1.5(6)A
|
|
Start Current
|
0.4%Ib
|
|
Power Consumption
|
＜2W/＜10VA@Un
|
|
Impulse
|
Direct 1000imp/kWh；Mutual Inductance 10000imp/kWh
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
