Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IDRFID
-
Model Number:
-
IDI7645
-
Material:
-
PET, Coated Paper
-
IC Chip:
-
I CODE SLIX, SLIX 2
-
Antenna Size:
-
76*45mm
-
Label Size:
-
86*54mm or customized
-
Antenna Programming:
-
aluminum etching((AL 10μm)
-
Compliant Standard:
-
ISO/IEC 15693
-
Work Mode:
-
passive
-
Protocol:
-
ISO 15693
Quick Details
-
Special Features:
-
Programmable, Readable, Writable
-
Communication Interface:
-
NFC
-
Frequency:
-
13.56Mhz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IDRFID
-
Model Number:
-
IDI7645
-
Material:
-
PET, Coated Paper
-
IC Chip:
-
I CODE SLIX, SLIX 2
-
Antenna Size:
-
76*45mm
-
Label Size:
-
86*54mm or customized
-
Antenna Programming:
-
aluminum etching((AL 10μm)
-
Compliant Standard:
-
ISO/IEC 15693
-
Work Mode:
-
passive
-
Protocol:
-
ISO 15693
Product Description

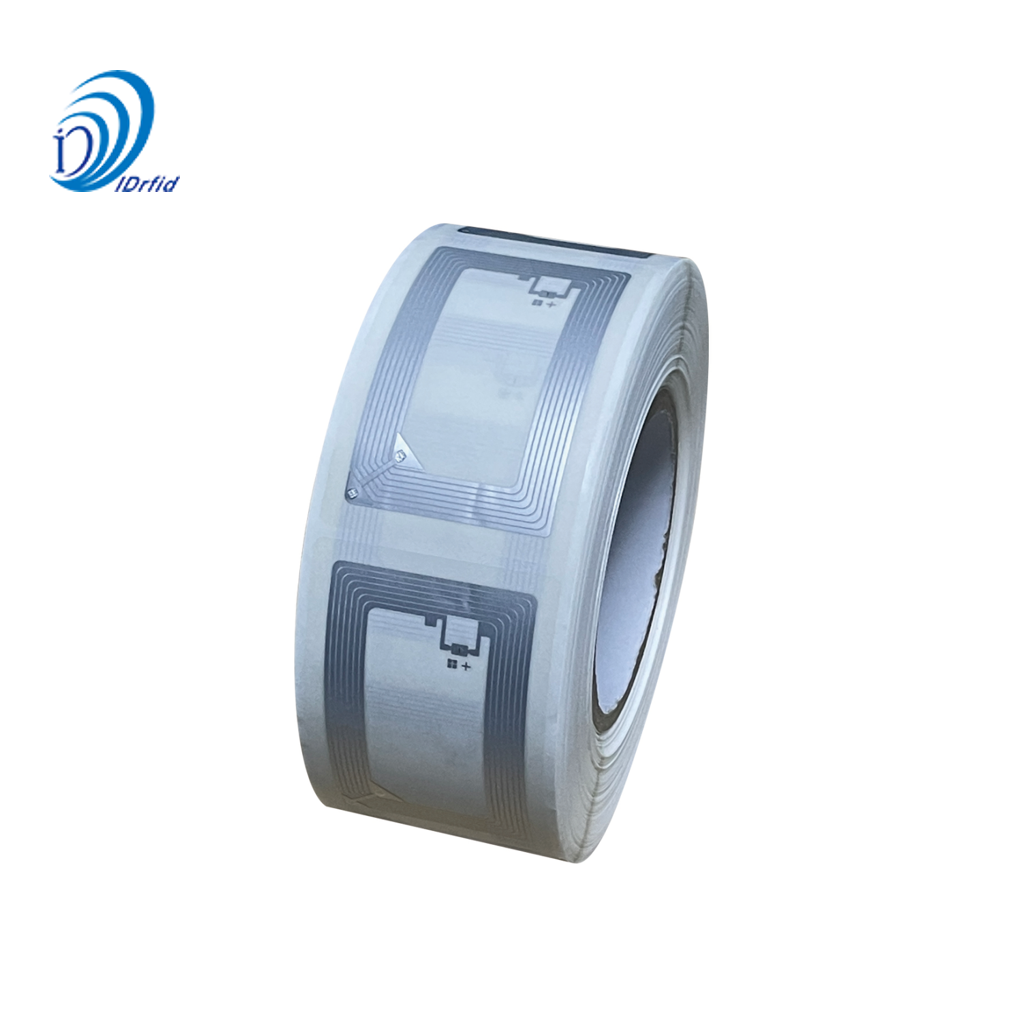

86*54mm or 80*50mm NFC Tag ISO15693 Protocol Library Management RFID Label Sticker
|
Item Name
|
Descriptions
|
|
Model No.
|
IDI7645
|
|
Dry Inlay/Antenna Size
|
76*45mm
|
|
Wet Inlay/White Label Size
|
86*54mm or customized
|
|
Antenna Programming
|
aluminum etching AL(10μm)
|
|
Compliant Standard
|
ISO/IEC 15693
|
|
IC Chip
|
I CODE SLIX, I CODE SLIX 2
|
|
Protocol
|
15693
|
|
Frequency
|
13.56MHz
|
|
User Memory
|
896 bits, 2528 bits
|
|
Work Mode
|
Passive
|
|
Chip Life
|
write 100,000 times, save data for 10 years
|
|
Chip ESD Protection
|
2000V
|
1.Features and benefits
1.1 ICODE SLIX RF interface (ISO/IEC 15693)
• Contactless transmission of data and supply energy (no battery needed)
• Operating distance: up to 1.5 m (depending on antenna geometry)
• Operating frequency: 13.56 MHz (ISM, world-wide licence freely available)
• Fast data transfer: up to 53 kbit/s
• High data integrity: 16-bit CRC, framing
• True anticollision
• Password protected Electronic Article Surveillance (EAS)
• Password protected Application Family Identifier (AFI)
• Data Storage Format Identifier (DSFID)
• Additional fast anticollision read
• Write distance equal to read distance
1.2 EEPROM
• 1024 bits, organized in 32 blocks of 4 bytes each
• 50 years data retention
• Write endurance of 100000 cycles
1.3 Security
• Unique identifier for each device
• Lock mechanism for each user memory block (write protection)
• Lock mechanism for DSFID, AFI, EAS
• Password (32-bit) protected EAS and AFI functionality
2.Applications
• Libraries
• Item level tagging in pharmaceutical supply chains
• Counterfeit protection for consumer goods
• Industrial applications
• Asset and document tracking
How to test the chip?
If your cell phone support NFC, just download TagInfo App, open it, hover your phone over the NFC tag/sticker/label/NFC card, it will shows the chip, data and memory, like pictures in the
second row
.
If the NFC tag/sticker/label/NFC card is cloned type(pictures in the third row), it will show like pictures in the
fourth row
.
Main Process
There are four main processes for RFID tags:
1.Flip chip to make dry inlay(non-sticky) that can be sold directly;
2.Compound to make wet inlay and white label(with stickiness);
3.Die cutting, cut out the shape and size that the customer wants;
4.QC testing.
There are also four main processes for smart cards:
1.Welding chips and antennas;
2.Laminating;
3.Punching;
4.QC testing.
Applications
We are manufacturer of RFID tags, smart cards, RFID readers, and RFID printers and other RFID related products.
We mainly do ultra-high frequency (860-960MHz) and high frequency (13.56MHz).
Our products are widely used in clothing inventory, logistics management, jewelry management, library management, access control security, unmanned retail, smart wearing and other fields.
