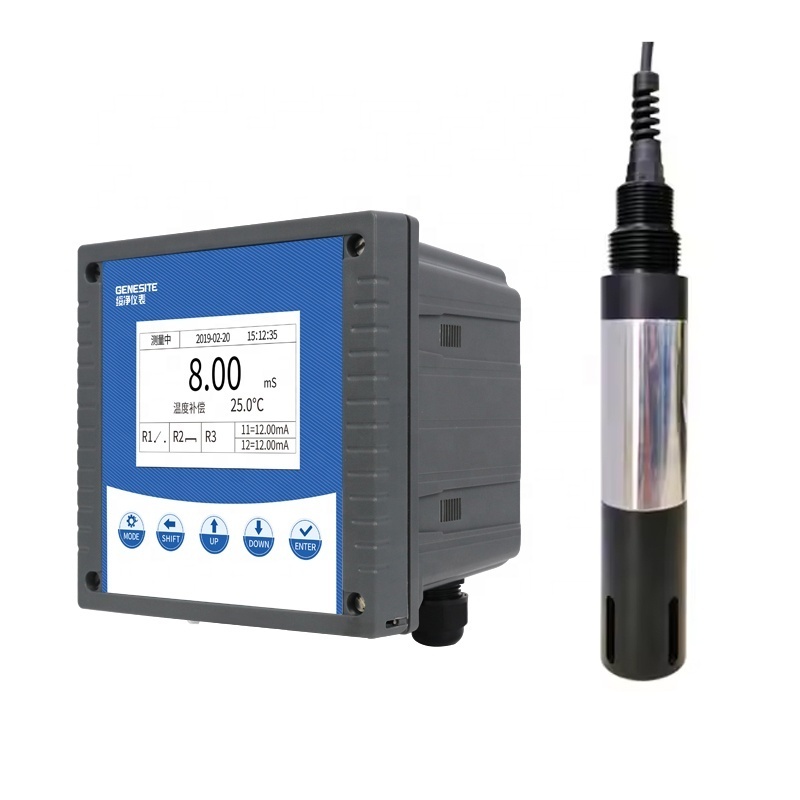

Online DO Meter Controller Monitoring Water Do Sensor Probe Dissolved Oxygen Sensor

Online DO Meter Controller Monitoring Water Do Sensor Probe Dissolved Oxygen Sensor

FOB Reference Price: Get Latest Price

≥2 Sets

US $388

≥10 Sets

US $364

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GENESITE

Model Number:: DO sensor

Type:: DO Meter

Measuring range:: 0-20mg/L (customizable)

Accuracy:: ±2%FS

Temperature range:: 0-60℃

Install Type:: Immersion type /Flow through type

Protection grade:: Ip68

Modbus:: RS-485,4-20mA

Cable length:: 5m or customize

Power Supply:: DC 9-30V ( Recommend 12V )

Shell material ::: ABS,PC+Stainless steel

Quick Details

Warranty:: 1 Year

Power:: Electronic

Place of Origin:: Henan, China

Brand Name:: GENESITE

Model Number:: DO sensor

Type:: DO Meter

Measuring range:: 0-20mg/L (customizable)

Accuracy:: ±2%FS

Temperature range:: 0-60℃

Install Type:: Immersion type /Flow through type

Protection grade:: Ip68

Modbus:: RS-485,4-20mA

Cable length:: 5m or customize

Power Supply:: DC 9-30V ( Recommend 12V )

Shell material ::: ABS,PC+Stainless steel

Wireless function

4-20mA & RS485 communication protocol

Users only need insert local SIM card,

then they can check all data on mobil App

or website.

ATC Design

Automatic Temperature Compensation from

0-60℃ (0-140℉)

higher temperature can be customized.

Anti-interference

Built-in protection circuit ,

enhance anti-interference ability

suitable for more harsh environment.

Graphic menu selection , with process guidance ,easy to operate .

Product Name	PH	Residual Chlorine	DO Sensor	EC Sensor
Product Model	GNST-201PH	GNST-211YL	GNST-338YGRJY	GNST-203DDL
Measuring Range	0-14PH	0-5ppm or 0-20ppm(HCIO)	0-20mg/L(0-200%)	0-2000μS/cm or 0-5000μS/cm
Temp. Range	0-65℃	0-50℃	0-45℃	0-65℃
Pressure Range	<0.2Mpa.		<0.2Mpa.	<0.6Mpa.
Resolution	0.01PH	0.001ppm or 0.01ppm	0.01mg/L,0.1℃	1μS/cm
Communication Interface	4-20mA /RS485	4-20mA /RS485	4-20mA /RS485	4-20mA /RS485

Product Name	Turbidity Sensor	OPR Sensor	Suspended solids Sensor	Salinity sensor
Product Model	GNST-205ZQJZD	GNST-210ORP	GNST-214XFW	GNST-209YD
Measuring Range	0-10NTU, 0-20NTU, 0-100NTU, 0200NTU	-1500mV~1500mV	0-5000mg/L(Min 2mg/L) 0- 10000mg/L(Min20mg/L)	0-70PSU
Temp. Range	0-50℃	0-60℃	0℃-45℃	0-45℃
Pressure Range	<0.2Mpa.	<0.1Mpa.	<0.3Mpa.	<0.6Mpa.
Resolution	0.1NTU,0.1℃	1mV	0.1mg/L	0.1mPSU
Communication Interface	4-20mA /RS485	4-20mA /RS485	4-20mA /RS485	4-20mA /RS485

Our Product Feature

1>High performance & Inexpensive

Our R&D team aim to offer affordable and efficient ways for monitoring water quality .
You will always find high performance & inexpensive measuring instruments here

2>Customized function
The system could provide isolated RS485 digital interface ,MODBUS communication protocol .
We could add high alarm ,low alarm ,timer mode or programmable relay output base one your requirements .

3>After-service
Once you have paid your invoice , you are not left alone.
Our professional technical team , following up all the instruments from install to use.

Together with our user

Our water quality monitoring provides accurate and reliable data that helps users make informed decision about the health and safe in the water treatment .
Becoming one top producers of water quality instruments and winning the trust of business across the world .
We develop and assemble all our products , ensuring the highest design ,technological, coding and manufacturing standards.

1,How can I get the suitable product ?

Please specifying your application and environment , we will recommend the suitable one .

2,What should I do if I do not know how to use?

User manual will be sent together, you can also contact us with more technological support.

3,What is your delivery time ?
Usually ,delivery time is 3-15 days depend on the order quantity & inventory .

4, How long is the warranty ?
36 months for water quality monitoring .

5, What’s your after service ?
We offer Video technical support, Field installation, Free spare parts, online support .

6.How to deliver the products ?

We will send by by Sea, by Air or delivery express base on your quantities and amount .
