Quick Details
-
Model Number:
-
GNSW
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1200mm*1100mm*950mm
-
Weight:
-
1200 KG
-
Features:
-
/
-
warranty:
-
12 month
-
place of origin:
-
Hebei
-
Brand:
-
GN
-
Certification:
-
API CE
-
product name:
-
shale shaker screen
-
Key words:
-
shale shaker screen
Quick Details
-
Application:
-
Separation
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
GN
-
Model Number:
-
GNSW
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1200mm*1100mm*950mm
-
Weight:
-
1200 KG
-
Features:
-
/
-
warranty:
-
12 month
-
place of origin:
-
Hebei
-
Brand:
-
GN
-
Certification:
-
API CE
-
product name:
-
shale shaker screen
-
Key words:
-
shale shaker screen

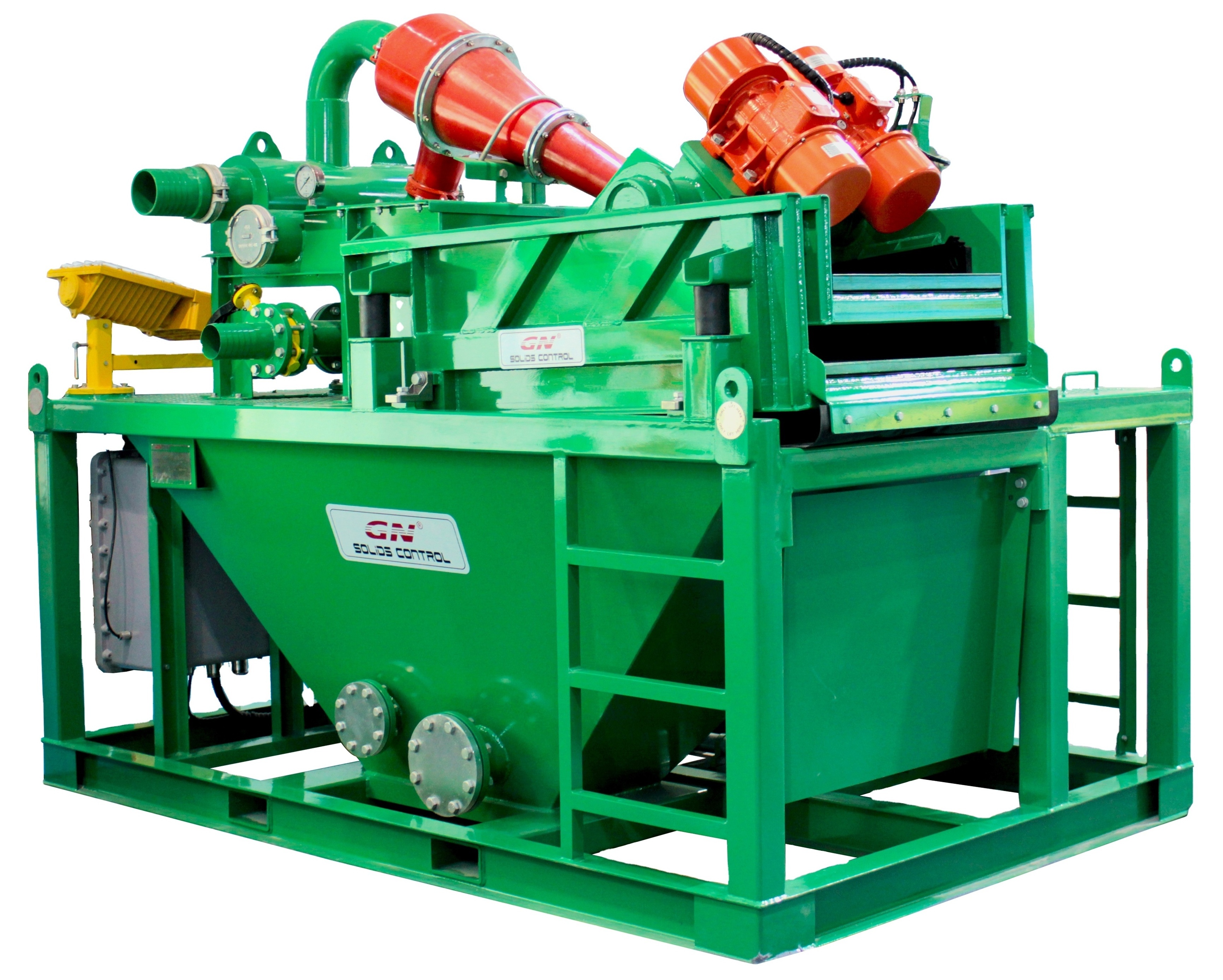

oilfield drilling mud shale shaker from GN Solids Control
GN'S shale shaker is the first phase solids control equipment in drilling fluids processing system, also known as key solids control equipment in drilling mud system, drilling mud shale shaker decides performance of the whole solids control system. GN Solids Control can design double shakers and triplicate shakers on single skid according to clients’special requirements and also supply relevant connecting manifold, according to current industry situation, GN provide both third generation linear motion shale shaker and fourth generation balanced elliptical shale shaker.
GNZS Linear Motion Shale Shaker for Drilling Mud used in Oilfeild.
GNZS linear motion shale shaker absorbed advanced tech at home and abroad ,and integrated GN own design. GN complete series shale shaker can meet customers’ variable demand. Clients feedback proved the advantages of this kind of shale shaker: high G-force, wide screen area, compressed structure, cost-effective, etc.
|
|
| Model | GNZS594 | GNZS852 | GNZS703 | GNZS853 |
| Deck Number | Single Deck | |||
| Vibrating Mode |
Linear Motion
|
|||
| Motor Power | 2×1.72KW | 2×1.5KW | 2x1.72KW | 2x1.72KW |
| Vibrating Strength | ≤7.5G(Adjustable) | |||
| Double Amplitude | 6.0~7.2mm | |||
| Treating Capacity | 140m 3 /h (615GPM) | 80m 3 /h (350GPM) | 120m 3 /h (528GPM) | 140m 3 /h (615GPM) |
| Deck Adjustment | -1°~+5° | -1°~+3° | -1°~+5° | -1°~+5° |
| Power | 380V/50HZ, 460V/60HZ or Customized | |||
| Shaker.Screen | 4 Panel 2.72m 2 | 2 Panel 2.1m 2 | 3 panel 2.6m 2 | 3 panel 3.2m 2 |
| Weir Height | 895mm | Buffer Box Top Type:1060mm Back Type:895mm | ||
| Starter | Magnetic force starter | |||
| Decibels | <85db | |||
| Weight | 1700kg | 1200kg | 1390kg | 1650kg |
| Dimension(Top Feeder) | N/A | 1975x1884x1448 | 2403x1884x1448 | N/A |
| Dimension (Back Feeder) | 2937x2012x1413 | 2283x1884x1340 | 2750x1884x1340 | 3180x1884x1340 |
| Remarks |
Treating capacity test from mud:1.2g/cm
3
density & viscosity 45s & API40 screen for Single deck.
|
|||
