Quick Details
-
Name:
-
Spring vibration isolator
-
Product name:
-
stainless steel housed hvac spring vibration isolator
-
Material:
-
Rubber+Steel
-
Color:
-
Black
-
Size:
-
Accpet Customers' Designs
-
Usage:
-
Industrial Shock Absorber
-
Feature:
-
Eco-friendly
-
Certification:
-
ISO9001
-
Shape:
-
Custom Shape
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Jiufu
-
Model Number:
-
JB
-
Name:
-
Spring vibration isolator
-
Product name:
-
stainless steel housed hvac spring vibration isolator
-
Material:
-
Rubber+Steel
-
Color:
-
Black
-
Size:
-
Accpet Customers' Designs
-
Usage:
-
Industrial Shock Absorber
-
Feature:
-
Eco-friendly
-
Certification:
-
ISO9001
-
Shape:
-
Custom Shape
Product Description
Description of stainless steel housed hvac spring vibration isolator
stainless steel housed hvac spring vibration isolator
is equipped with upper bolts to be fixed to the equipment, and lower to the foundation. There are height adjustment bolts to adjust the level of the equipment, and adopt lateral damping to improve the vertical and horizontal levels. Stiffness. (JB type damping spring shock absorber damping ratio ≥0.065).

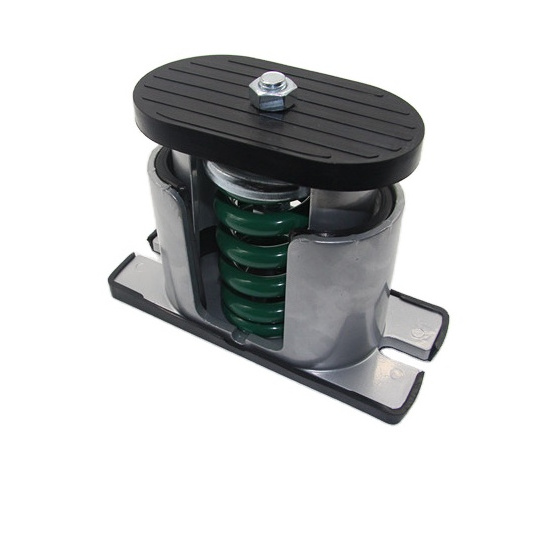

Product show of
stainless steel housed hvac spring vibration isolator
Technical parameters
Technical parameters of
stainless steel housed hvac spring vibration isolator
|
Model
|
Dimension
|
|
|
|
|
|
|
||||||
|
|
L
|
A
|
B
|
W
|
H
|
M
|
D
|
||||||
|
JB-S
|
148
|
126
|
106
|
62
|
95
|
12
|
12*!8
|
||||||
|
JB-M
|
180
|
150
|
118
|
83
|
140
|
12
|
12*30
|
||||||
|
JB-L
|
220
|
185
|
153
|
90
|
185
|
14
|
15*25
|
||||||
|
Model
|
Load range
（kg)
|
Coefficient of elasticity
（Kg/mm)
|
Applicable deflection
|
|
JB-12-S
|
6-12
|
0.8
|
15
|
|
JB-18-S
|
9-18
|
1.2
|
15
|
|
JB-30-S
|
15-30
|
2
|
15
|
|
JB-40-S
|
20-40
|
2.7
|
15
|
|
JB-55-S
|
30-55
|
3.7
|
15
|
|
JB-75-S
|
40-75
|
5
|
15
|
|
JB-90-S
|
45-90
|
6
|
15
|
|
JB-120-S
|
60-120
|
8
|
15
|
|
JB-150-S
|
75-150
|
10
|
15
|
|
JB-180-M
|
150-180
|
7.2
|
25
|
|
JB-250-M
|
200-250
|
10
|
25
|
|
JB-300-M
|
300-350
|
12
|
25
|
|
JB-350-M
|
350-400
|
14
|
25
|
|
JB-400-L
|
450-400
|
16
|
25
|
|
JB-450-L
|
400-450
|
18
|
25
|
|
JB-500-L
|
500-600
|
20
|
25
|
|
JB-600-L
|
600-700
|
24
|
25
|
|
JB-700-L
|
700-850
|
28
|
25
|
|
JB-850-L
|
700-850
|
34
|
25
|
|
JB-1000-L
|
850-1000
|
40
|
25
|
Application
Application of stainless steel housed hvac spring vibration isolator
1)Air conditioning box, centrifugal fan
2)Small ice water machine, various water pumps and pipes
3)Generating units, general industrial units
2)Small ice water machine, various water pumps and pipes
3)Generating units, general industrial units
Packing & Delivery
Package of
stainless steel housed hvac spring vibration isolator
:
cartons
Delivery of
stainless steel housed hvac spring vibration isolator
:
Within 7 days after received payment
