Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
grandio
-
Year:
-
2022
-
Voltage:
-
220/380
-
Dimension(L*W*H):
-
3940*1250
-
Weight (T):
-
2 T
-
Motor Power (kw):
-
4 kw
-
Platen size:
-
2500*1250mm
-
Pressure of work:
-
50t
-
Work schedule:
-
1000mm
-
Maximum plate thickness:
-
900mm
-
The installed power:
-
4kw
-
Overall dimensions:
-
2960*1250mm
-
Color:
-
Costomized
-
After-sale service:
-
Video Support
-
Name:
-
Hydraulic Press
-
The weight of the:
-
2t
Quick Details
-
Machine Type:
-
H Frame Hydraulic Press
-
Slide Stroke (mm):
-
2500x1600mm
-
Return Force (kN):
-
20 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
grandio
-
Year:
-
2022
-
Voltage:
-
220/380
-
Dimension(L*W*H):
-
3940*1250
-
Weight (T):
-
2 T
-
Motor Power (kw):
-
4 kw
-
Platen size:
-
2500*1250mm
-
Pressure of work:
-
50t
-
Work schedule:
-
1000mm
-
Maximum plate thickness:
-
900mm
-
The installed power:
-
4kw
-
Overall dimensions:
-
2960*1250mm
-
Color:
-
Costomized
-
After-sale service:
-
Video Support
-
Name:
-
Hydraulic Press
-
The weight of the:
-
2t
Product Description

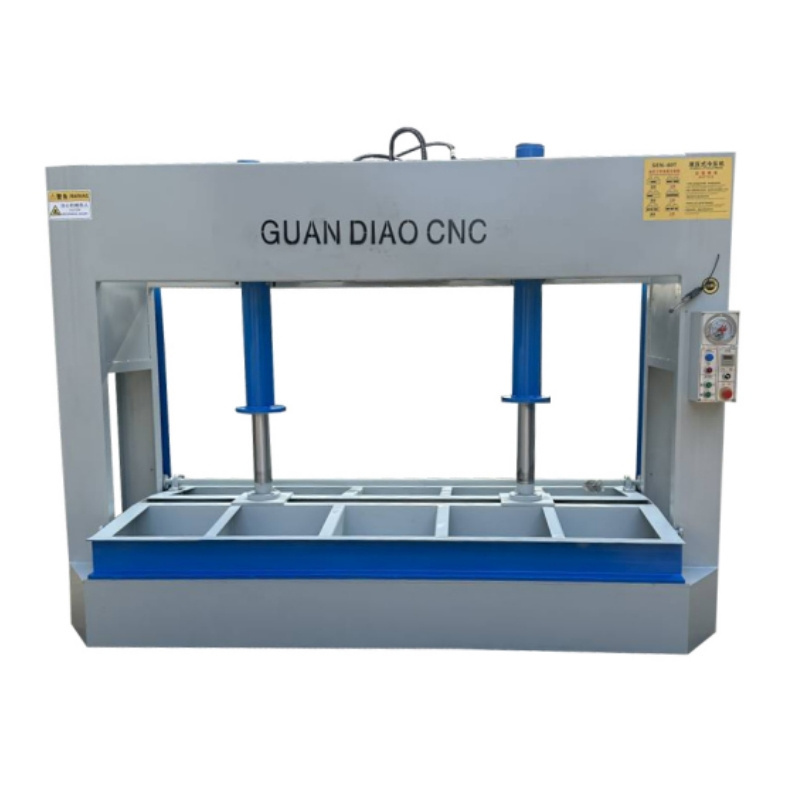

The hydraulic press is mainly composed of: hydraulic system, electrical control system, pressure plate and fuselage.
Oil pressure system:
It consists of oil cylinder, oil tank, oil pump, oil pump motor, control valve block and pressure gauge. The oil tank is filled with oil, and the oil pump is electrically driven by the oil pump to pump oil, and the oil is sent to the
oil cylinder through the connecting oil pipe to make the oil cylinder work.
oil cylinder through the connecting oil pipe to make the oil cylinder work.
Its overflow valve can make the pressing piece
generate back pressure during the extrusion process, which plays a stable role. The valve is used to maintain the pressure set by the system, and the pressure gauge is used to display the pressure.
generate back pressure during the extrusion process, which plays a stable role. The valve is used to maintain the pressure set by the system, and the pressure gauge is used to display the pressure.
Specification
|
Name Model
|
2500*1.25 stroke 1 meter
|
2500*1.25 stroke 1.5 meters
|
||
|
Platen Size
|
1250*2500
|
1250*2500
|
||
|
Pressure
|
50T
|
50T
|
||
|
Distance
|
1000mm
|
1300mm
|
||
|
Installed Power
|
4KW
|
4KW
|
||
|
Dimensions
|
2910*1250mm
|
2910*1250mm
|
||
|
Net Weight
|
1.8t
|
2.2t
|
||
|
|
|
|
||
|
Name Model
|
3000*1.25 stroke 1 meter
|
3000*1.25 stroke 15 meters
|
||
|
Platen Size
|
1250*2500
|
1250*2500
|
||
|
Pressure
|
50T
|
50T
|
||
|
Distance
|
1300mm
|
1500mm
|
||
|
Installed Power
|
4KW
|
4KW
|
||
|
Dimensions
|
3410*1250mm
|
3410*1250mm
|
||
|
Net Weight
|
2.0t
|
2.4t
|
||
The fuselage is made of national standard channel steel, which can effectively ensure the stability of the machine and improve the service life.
Field welding
Customer Photos
Applicable to
: household panels, steel, door panels, stone, honeycomb panels, multi-layer panels, insulation panels and other materials. It is used for setting and flattening the panels, which can make the adhesion between the panels stronger, with strong pressure and no force back.
