Quick Details
-
Model Number:
-
Y2-180M-4
-
Frequency:
-
50hz,60hz, or 50hz/60hz
-
Certification:
-
CCC
-
Product name:
-
Electric Motor for Concrete Mixer
-
Speed:
-
Constant Speed
-
Usage:
-
Universal
-
IM:
-
B3, B35, B5
-
Duty:
-
S1
-
Housing:
-
AL or Iron Cast
-
Accessory:
-
Rain cover, Over-Heat Protection, encoder
-
Production level:
-
IP54/IP55
Quick Details
-
AC Voltage:
-
200v-720v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Ybang
-
Model Number:
-
Y2-180M-4
-
Frequency:
-
50hz,60hz, or 50hz/60hz
-
Certification:
-
CCC
-
Product name:
-
Electric Motor for Concrete Mixer
-
Speed:
-
Constant Speed
-
Usage:
-
Universal
-
IM:
-
B3, B35, B5
-
Duty:
-
S1
-
Housing:
-
AL or Iron Cast
-
Accessory:
-
Rain cover, Over-Heat Protection, encoder
-
Production level:
-
IP54/IP55

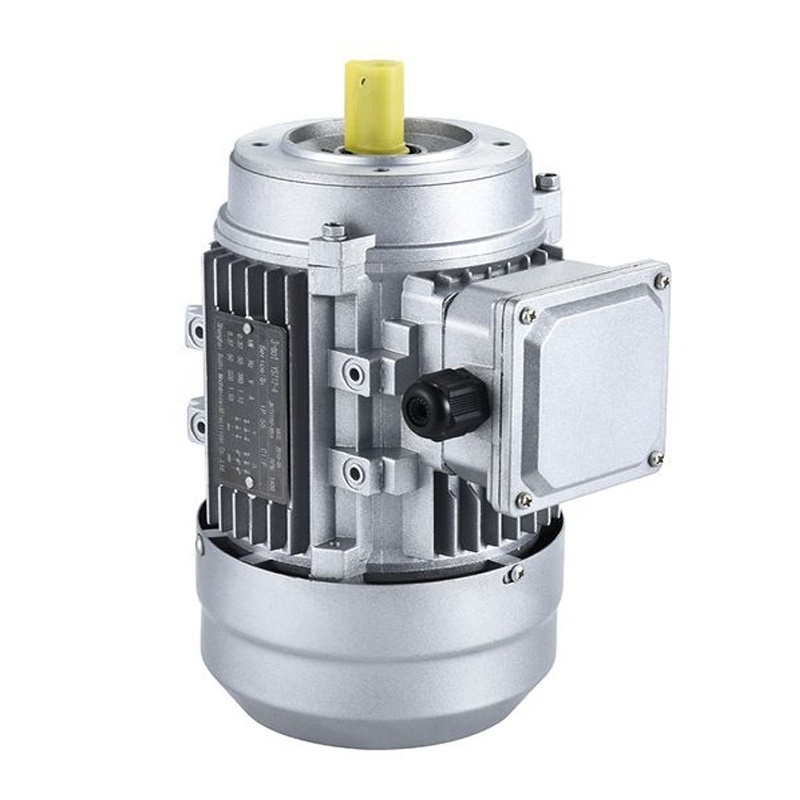

Electric Motor for Concrete Mixer
The Useage of motor is very convenient and has the ability of self-starting, acclerating, braking, reversing and stoppng, can meet various operation requirements. Wthen the motor woking, has high efficency, wwithout dust and smell, no pollution and noise. Becase of its more advantages, the motor are widely used in industry, agricultural production, transportation as well as household appliances, medical electrical qpuipment etc.
|
Type |
Y series Three Phase Electric Motor |
|
1, Frame Size: |
80-315L |
|
2, Rated Output: |
18.5kw |
|
3, Rated Voltage: |
380 V or to be your request |
|
4, Rated Frequency: |
50 Hz / 60 Hz |
|
5, Poles: |
4 |
|
6, Speed: |
1500r/min |
|
7, Ambient Temperature: |
-15°C < θ < 40°C |
|
8.Insulation class |
F |
|
9, Mounting: |
B3; B35; B34; B14; B5; V1 |
|
10 OEM: |
Special motors can be designed |
|
11, Protection Class |
IP54/IP55 |
|
12, Cooling Method: |
ICO 141 Standards |
|
13. Working efficiency |
56%-94% |
|
14. Matched engine |
Speed reducer |
|
15, Packing: |
Strong carton or wooden base |
|
No. |
Description |
No. |
Description |
No. |
Description |
|
1 |
shaft sleeve |
11 |
rubber blanket |
21 |
snap ring |
|
2 |
thrower |
12 |
wiring board |
22 |
fan cowl |
|
3 |
bolt |
13 |
terminal box base |
23 |
nameplate |
|
4 |
spring cushion |
14 |
rubber blanket |
24 |
rivet |
|
5 |
end cap |
15 |
terminal box cap |
25 |
B5frame |
|
6 |
bearing |
16 |
bolt |
26 |
B5flange |
|
7 |
spindle |
17 |
cable gland |
27 |
B14flange |
|
8 |
rotor |
18 |
corrugated gasket |
28 |
seal ring |
|
9 |
stator winding |
19 |
bolt |
29 |
key |
|
10 |
stator |
20 |
fan |
( 1) With excellent quality and Reasonable price
(2) Promise to delivery on time
(3) Safe, reliable, economical and durable
(4) Stable transmission, quiet operation
(5) High heat-radiating efficiency, high carrying ability
(6) Every product must be tested before sending
