Quick Details
-
Cylinder diameter:
-
100mm
-
Stroke:
-
80mm
-
Gear position:
-
4
-
Rush times:
-
200 times/min
-
Flow rate:
-
250L/min
-
Pressure:
-
5.5MPa
-
Engine:
-
Diesel
-
Plot ratio:
-
90%
-
Total efficiency:
-
75%
Quick Details
-
Brand Name:
-
SINOSTAR
-
Type:
-
double acting piston pump, Horizontal three cylinder reciprocating single acting piston pump
-
Model Number:
-
BW250
-
Cylinder diameter:
-
100mm
-
Stroke:
-
80mm
-
Gear position:
-
4
-
Rush times:
-
200 times/min
-
Flow rate:
-
250L/min
-
Pressure:
-
5.5MPa
-
Engine:
-
Diesel
-
Plot ratio:
-
90%
-
Total efficiency:
-
75%
Products Description

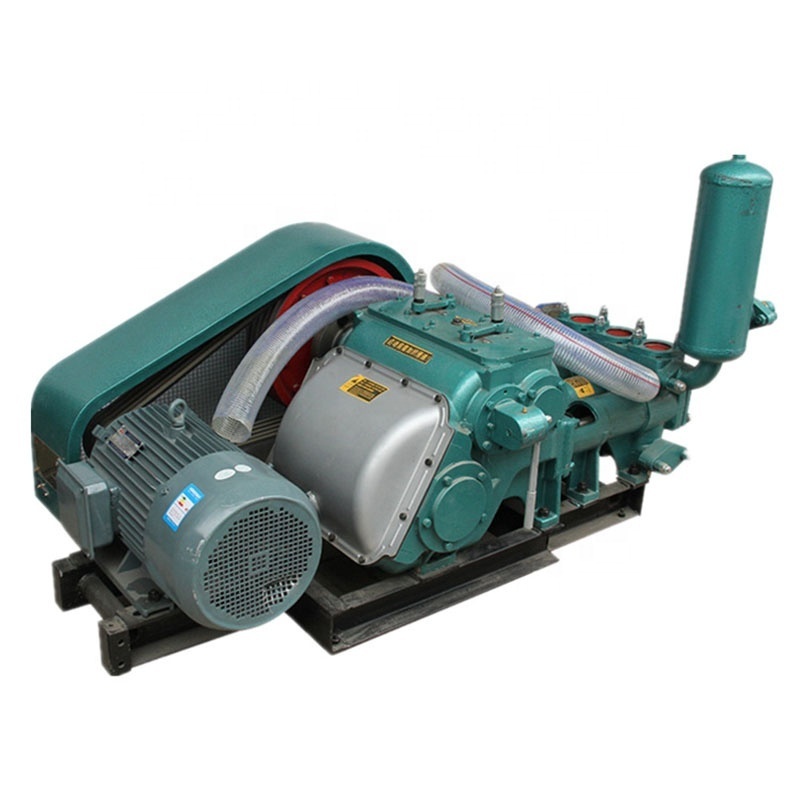

BW-250 MUD PUMP
BW-250 type mud pump is a horizontal three-cylinder reciprocating single acting piston pump, which is one of the main supporting equipment for geological exploration.Its main function is to supply flushing fluid (mud or water) to the borehole during core drilling,It can be circulated in the drilling to carry cuttings back to the ground, cool and lubricate the drill
bit and drilling tools, protect the hole wall from collapse,it can also be used as cement slurry pump in foundation treatment
engineering,the water cement ratio of the cement slurry can be up to 1:1, which has the characteristics of small size, compact structure, easy installation and removal, easy handling, etc.
bit and drilling tools, protect the hole wall from collapse,it can also be used as cement slurry pump in foundation treatment
engineering,the water cement ratio of the cement slurry can be up to 1:1, which has the characteristics of small size, compact structure, easy installation and removal, easy handling, etc.
|
Pump Type
|
Horizontal three cylinder reciprocating single acting piston pump
|
|
|
|
|||
|
Pump Model
|
BW-250
|
|
|
|
|||
|
Cylinder diameter
|
100mm
|
|
|
|
|||
|
Stroke
|
80mm
|
|
|
|
|||
|
Pump speed （times/min）
|
200
|
116
|
72
|
42
|
|||
|
Flow（L/min）
|
250
|
145
|
90
|
52
|
|||
|
Pressure（MPa）
|
5.5
|
4.5
|
6.0
|
6.0
|
|||
|
Engine
|
Engine
|
|
|
|
|||
|
Dimension
|
1700*995*950mm
|
|
|
|
|||
|
Weight
|
750kg
|
|
|
|
|||
