RIMA 20ton automatic saw firewood processor gasoline tractor electric fast hydraulic log splitter

RIMA 20ton automatic saw firewood processor gasoline tractor electric fast hydraulic log splitter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $4300

≥10 Pieces

US $4200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight:: 665 KG

Model:: RM7-20TA480

Power:: 15HP LIFAN engine with electric start

auto saw:: yes

Max. log diameter:: 480mm

Max.log length:: 610mm

Hydraulic infeed:: 180cm

Saw motor with bearing:: 36L/min, 4800rpm

Conveyor with winch:: 3.2m Length, 250mm width

Conveyor swing angle:: Manual ±15°

Chain saw:: 22" made in china

Quick Details

Use:: log cutting and splitting

Place of Origin:: Shandong, China

Brand Name:: RIMA

Weight:: 665 KG

Model:: RM7-20TA480

Power:: 15HP LIFAN engine with electric start

auto saw:: yes

Max. log diameter:: 480mm

Max.log length:: 610mm

Hydraulic infeed:: 180cm

Saw motor with bearing:: 36L/min, 4800rpm

Conveyor with winch:: 3.2m Length, 250mm width

Conveyor swing angle:: Manual ±15°

Chain saw:: 22" made in china

Product Overview

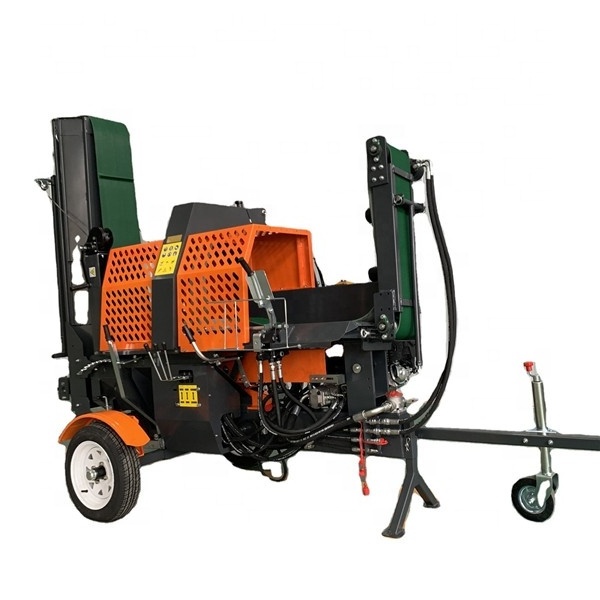

20Ton Automatic sawing wood processor RM7-20-480TA

This wood processor has been our latest version based on our classical 380 mm diameter model . We improved to automatic sawing without human labor to press the handle , even a 7-years child could operate the wood processor easily . And we widen the max cutting diameter from 380 mm to 480 mm , price is almost same with 380 mm type .

With 480 mm bigger diameter , cycle time is still same 6 seconds , capacity is 5 yards/ day ; which is faster than competitor 2 yards/ day .

No matter you use yourself to warm in winter , or resell to make profit , RM7-20-480TA is absolutely the best choice for you .

FEATURES AT A GLANCE

FEATURES

AUTOMATIC SAW

SWING CONVEYOR

180CM HYDRAULIC INFEED

MAX CUTTING DIAMETER 480MM

MAX CUTTING LENGTH 610MM

CYCLE TIME 6 SECONDS

CAPACITY 5 YARS/ DAY

PRODUCT SPECIFICATIONS

Model	RM7-20TA480(EU)	RM7-20TA450(N/A)
Power	15HP LIFAN Gasoline engine E-start	14HP KOHLER Gasoline engine E-start
Auto saw	YES	YES
Max. log diameter	48cm	45cm
Max.log length	61cm	61cm
Hydraulic infeed	1.8m	1.8m
Saw motor with bearing	36L/min, 4800rpm	36L/min, 4800rpm
Conveyor with winch	3.2m Length, 250mm width	3.2m Length, 250mm width
Conveyor swing angle	Manual ±15°	——
Chain saw	22inch (Made in China)	22inch (Made in China)
Log holder	CE safety	Manual
Hydraulic output	YES	YES
Cylinder Bore	4inch	4inch
Cycle time	6 second	8 second
Wheel	12inch high speed trailer wheel	12inch high speed trailer wheel
Knife	4/6-ways	4-ways(6-ways Optional)
Packing	1pc/ iron pallet	1pc/ iron pallet
Weight	550kg	550kg
40"HC Container	24pcs	24pcs
