Quick Details
-
Warranty:
-
13 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINGAN
-
Product name:
-

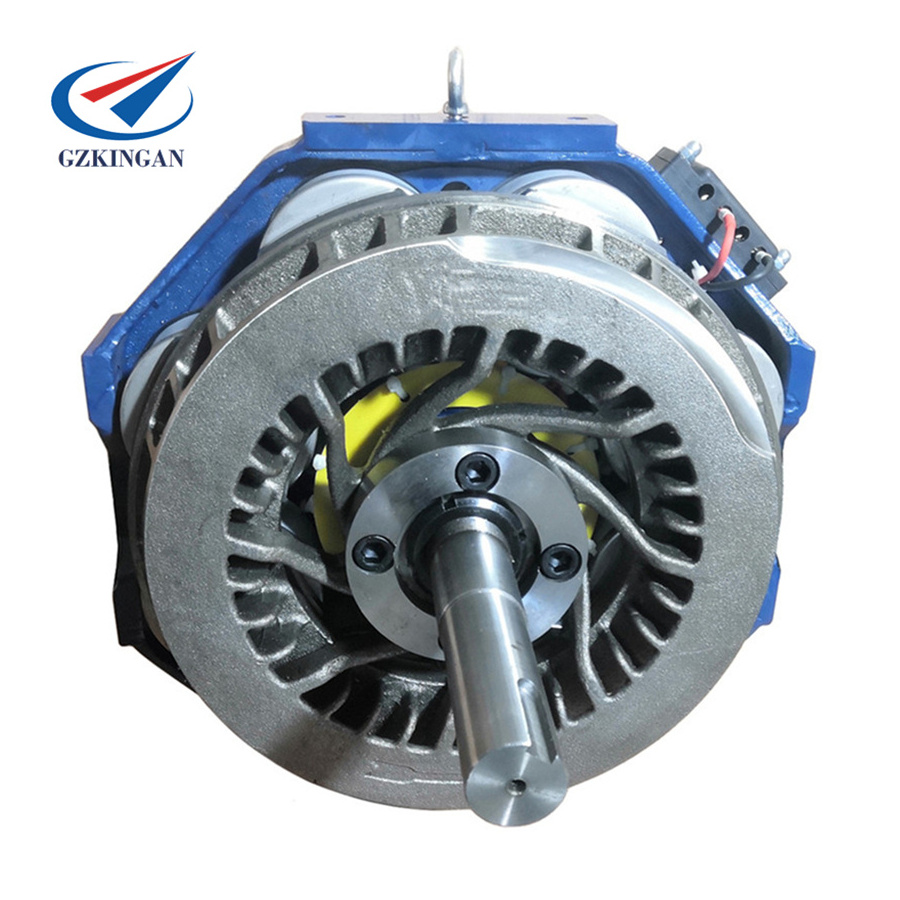

Dynamometer Retarder
-
Brand:
-
KINGAN
-
Application:
-
Motorcycle, Car and Truck testing
-
Max Transmissible torque:
-
2600N.M
-
Max Rotational speed:
-
> 4000rpm or Customized Speed
-
Total current:
-
20.3A
-
Rotors inertia:
-
2.36kg.m²
Quick Details
-
OE NO.:
-
EC DYNO LOAD
-
Type:
-
Eddy current brake load, Eddy brake
-
Car Model:
-
Motorcycle, Car and Truck
-
Warranty:
-
13 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KINGAN
-
Product name:
-
Dynamometer Retarder
-
Brand:
-
KINGAN
-
Application:
-
Motorcycle, Car and Truck testing
-
Max Transmissible torque:
-
2600N.M
-
Max Rotational speed:
-
> 4000rpm or Customized Speed
-
Total current:
-
20.3A
-
Rotors inertia:
-
2.36kg.m²
Products Description
24V 48V 96V 192V automotive eddy current dynamometer retarder supply
|
Model
|
Max. Torque (N.M)
|
Power (KW）
|
Power (HP)
|
Rotation Speed （rpm）
|
Dimensions (mm)
|
|
KD500
|
500
|
85
|
114
|
4800
|
406*390*236
|
|
KD700
|
700
|
120
|
161
|
4800
|
406*390*236
|
|
KD900
|
900
|
135
|
181
|
4300
|
490*469*285
|
|
KD1200
|
1200
|
170
|
228
|
4300
|
490*469*285
|
|
KD1600
|
1600
|
210
|
282
|
4300
|
490*469*285
|
|
KD1900
|
1900
|
245
|
329
|
4300
|
560*532*310
|
|
KD2200
|
2200
|
270
|
362
|
4300
|
560*532*313
|
|
KD2400
|
2400
|
290
|
389
|
4300
|
560*532*316
|
|
KD2600
|
2600
|
325
|
436
|
4300
|
560*532*319
|
|
KD2800
|
2800
|
350
|
469
|
4300
|
650*568*363
|
|
KD3300
|
3300
|
450
|
603
|
4300
|
622*624*404
|
|
KD3800
|
3800
|
540
|
724
|
4000
|
622*624*404
|
KA series air cooled eddy current
Eddy current retarder is a non-contact deceleration device, usually installed between the drive axle and the gearbox, with high braking efficiency, short operating response time, non-contact/zero wear/failure rate is very low advantages, can extend the service life of the vehicle brake, reduce the comprehensive cost of the vehicle, improve vehicle safety, economy, environmental protection, stability and comfort.
This drawing is for display purpose, if you want to know the specific detail dimension, please contact us.
