Quick Details
-
Brand Name:
-
TEREN
-
Model Number:
-
WFS
-
Operating Temperature:
-
5-80°C
-
Contact:
-
SPDT, 15A/250VAC
-
Resistive load voltage:
-
250VAC
-
Resistive load current:
-
15A
-
Environment temperature:
-
5~50°C
-
Medium Temperature:
-
5~80°C
-
Max pressure:
-
1.6Mpa
-
Weight:
-
0.5Kg
-
Material:
-
stainless steel
-
color:
-
red
-
Certification:
-
NO
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
16-32, max 480-920 optional
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TEREN
-
Model Number:
-
WFS
-
Operating Temperature:
-
5-80°C
-
Contact:
-
SPDT, 15A/250VAC
-
Resistive load voltage:
-
250VAC
-
Resistive load current:
-
15A
-
Environment temperature:
-
5~50°C
-
Medium Temperature:
-
5~80°C
-
Max pressure:
-
1.6Mpa
-
Weight:
-
0.5Kg
-
Material:
-
stainless steel
-
color:
-
red
-
Certification:
-
NO
Applications & Features

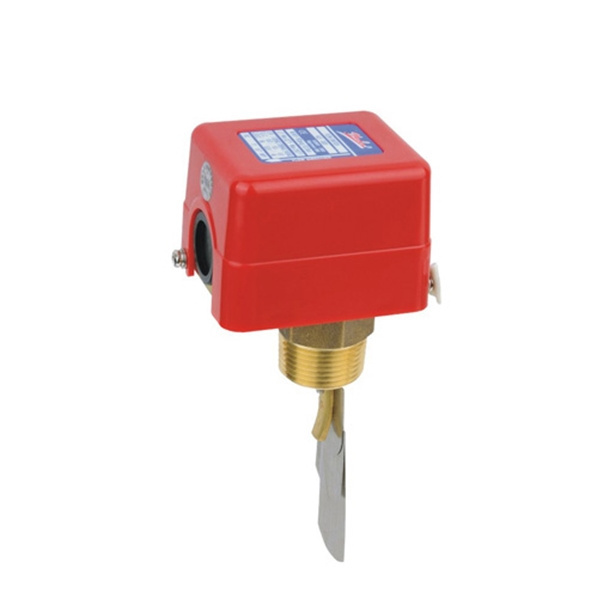

- The paddle type SPDT WFS are designed to monitor and control the flow rate of water, chilled water or cooling water or other liquid system.
Specifications
Contact: SPDT
Resistive load voltage: 250VAC
Resistive load current: 15A
Environment temp.: 5~40°C
Medium temp.: 5~80°C
Max pressure: 1.6Mpa
Weight: 0.5Kg
Designed to provide excellent performance where accuracy, reliability, and rugged construction are required in liquid flow lines carrying water or any fluid neither harmful to brass and phosphor bronze nor classified as a hazardous fluids.
The SPDT micro-switch can be wired to close one circuit and open a second circuit when liquid flow either exceeds or drops below the adjusted flow rate.
Recommended for liquid pressure and temperature as mentioned below and must not be used on lines carrying liquids below 0 deg. C.
These series may be used on liquids with high salt or chlorine content but is not for used in hazardous atmospheres.
They may be also used outdoors but must be protected from weather or splashing water.
Where an operating control failure would result in personal injury and/or loss of property, it is the responsibility of user to add safety devices that protect against, or add supervisory systems that warn of control.
Paddles Selection
| ITEM |
Range liter/min |
D Band liter/min |
Pipe | Paddle number | |
| in | mm | ||||
| 1 | 16~32 | 6 | 1 | 25 | 1 |
| 2 | 22~50 | 8 | 1.25 | 32 | 1 |
| 3 | 28~72 | 9 | 1.5 | 40 | 1 |
| 4 | 50~110 | 15 | 2 | 50 | 2 |
| 5 | 65~130 | 20 | 2.5 | 65 | 2 |
| 6 | 100~200 | 30 | 3 | 80 | 3 |
| 7 | 240~480 | 50 | 4 | 100 | 3 |
| 8 | 480~920 | 80 | 5 | 125 | 3 |
|
Sample Order |
Order |
OEM Order |
| Three work days | 2 weeks | 3 weeks |
Port
Shenzhen, Hong Kong
