Quick Details
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
PRESS MACHINE
-
Application:
-
Metal Sheet Stamping
-
Function:
-
Steel Metal Punching
-
Usage:
-
Pressing Metal Products
-
Type:
-
Four Columns
-
Material:
-
Steel Material
-
Color:
-
Customized
-
Keyword:
-
Hydraulic press machine
-
Capacity:
-
15-10000Ton
-
Name:
-
pressing machine
-
Weight:
-
OPTIONAL
-
Certification:
-
CE ISO
-
Power:
-
OPTIONAL
Quick Details
-
Place of Origin:
-
Liaoning, China
-
CNC or Not:
-
CNC
-
Power Source:
-
Hydraulic
-
After-sales Service Provided:
-
Online support, Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
-
Product name:
-
PRESS MACHINE
-
Application:
-
Metal Sheet Stamping
-
Function:
-
Steel Metal Punching
-
Usage:
-
Pressing Metal Products
-
Type:
-
Four Columns
-
Material:
-
Steel Material
-
Color:
-
Customized
-
Keyword:
-
Hydraulic press machine
-
Capacity:
-
15-10000Ton
-
Name:
-
pressing machine
-
Weight:
-
OPTIONAL
-
Certification:
-
CE ISO
-
Power:
-
OPTIONAL

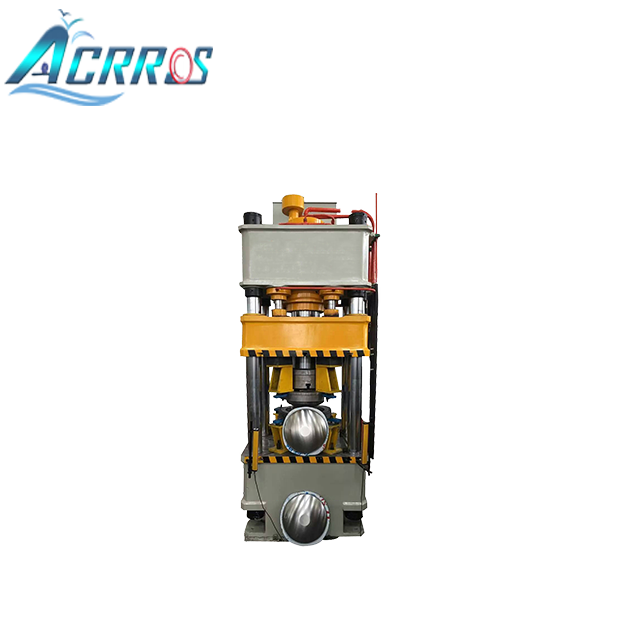

Technical Parameters of Hydraulic Four Column Press Machine
| Model |
Y32-63T |
Y32-100T |
Y32-160T |
Y32-200T |
Y32-250T |
Y32-315T |
Y32-500T |
| Nominal force(kn) | 630 | 1000 | 1600 | 2000 | 2500 | 3150 | 5000 |
| Knockout force(kn) | 160 | 250 | 250 | 400 | 630 | 630 | 1000 |
|
Open height(mm) |
800 | 800 | 1000 | 1120 | 1120 | 1250 | 1500 |
| Slide stroke(mm) | 500 | 500 | 650 | 710 | 710 | 800 | 900 |
| Main motor power(kw) | 45 | 60 | 75 | 60 | 70 | 90 | 170 |
Technical Parameters of
Punching Power Press
| Model |
J21S-16T |
J21S-25T |
J21S-40T |
J21S -63T |
J21S -80T |
J21S -100T |
J21S -125T |
J21S -160T |
| Norminal force(KN) | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 | 1600 |
| Slide stroke(MM) | 60 | 70 | 100 | 100 | 115 | 130 | 130 | 130 |
|
Number of stroke (TIMES/MIN) |
100 | 70 | 50 | 50 | 45 | 38 | 40 | 35 |
| Closed height (MM) | 250 | 290 | 380 | 380 | 410 | 590 | 420 | 410 |
| Throat depth(MM) | 40 | 40 | 60 | 60 | 60 | 100 | 60 | 80 |
Technical Parameters of Hydraulic Ironworke
| Model |
Q35Y-12 |
Q35Y-16 |
Q35Y-20 |
Q35Y-25 |
Q35Y-30 |
Q35Y-40 |
Q35Y-50 |
| Punching pressure(T) | 50 | 60 | 90 | 120 | 160 | 200 | 250 |
| Punching depth(mm) | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
|
Max.punching dia.(mm) |
25 | 25 | 30 | 35 | 28 | 40 | 40 |
| Max.cutting thickness(mm) | 12 | 16 | 20 | 25 | 30 | 40 | 50 |
| Main motor power(kw) | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 2 |
